ORFS Male Blanking Plug

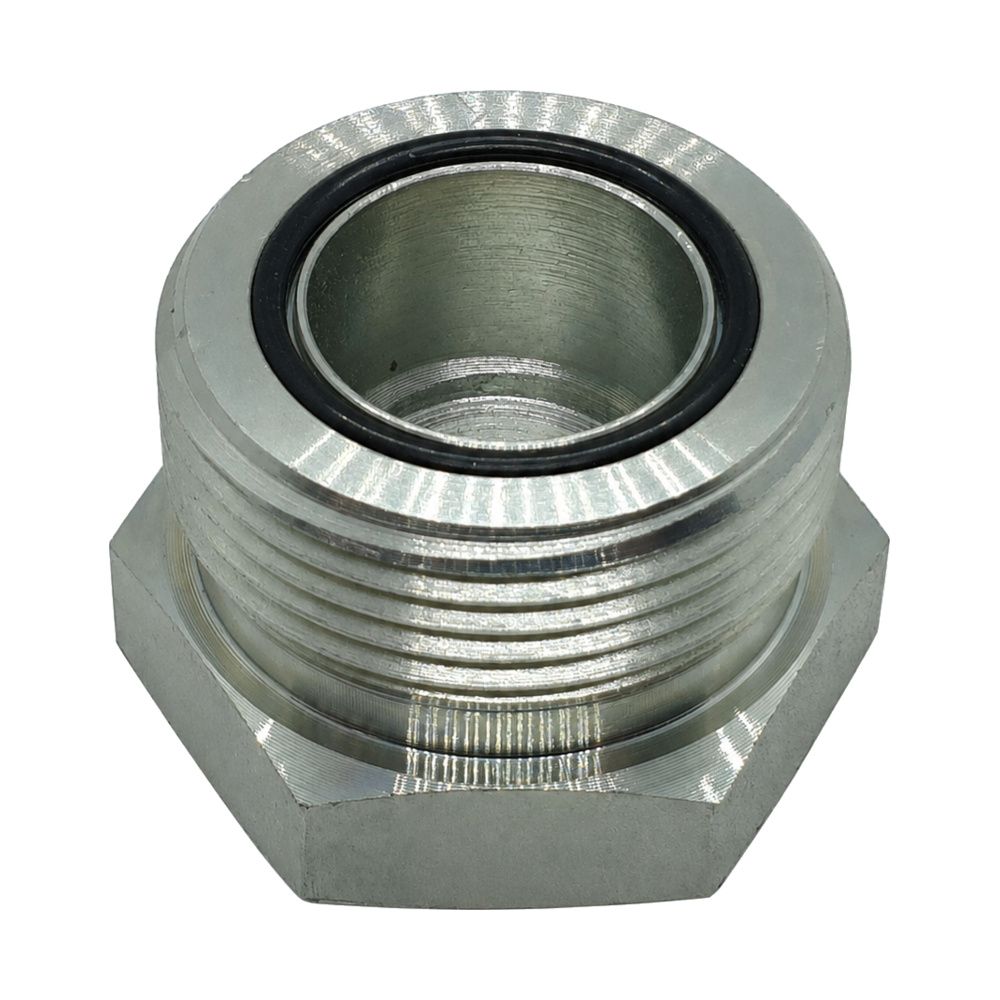

An ORFS male plug for blanking off an O-ring face seal connection. For machines built on flat-face fittings.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Seals on the O-ring in the flat face. Nothing goes on the thread.
• Check the face groove is clean and the ring is seated before you fit it.

Technicians Advice

If a blanked ORFS port weeps, it is the ring, not the torque. Pull it out and look. Winding a face seal tighter just flattens the ring and makes the next attempt worse.

Where You’ll Find It

• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.

Cross-Reference

• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	H1	Material	Finish
ORM-09	9/16" ORFS	17mm	15.8mm	Mild steel	Plated finish
ORM-11	11/16" ORFS	19mm	19.1mm	Mild steel	Plated finish
ORM-13	13/16" ORFS	22mm	22.2mm	Mild steel	Plated finish
ORM-16	1" ORFS	26mm	27.0mm	Mild steel	Plated finish
ORM-19	1.3/16" ORFS	27mm	31.8mm	Mild steel	Plated finish
ORM-23	1.7/16" ORFS	28mm	38.1mm	Mild steel	Plated finish
ORM-27	1.11/16" ORFS	28mm	44.5mm	Mild steel	Plated finish
ORM-32	2" ORFS	28mm	54.0mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
