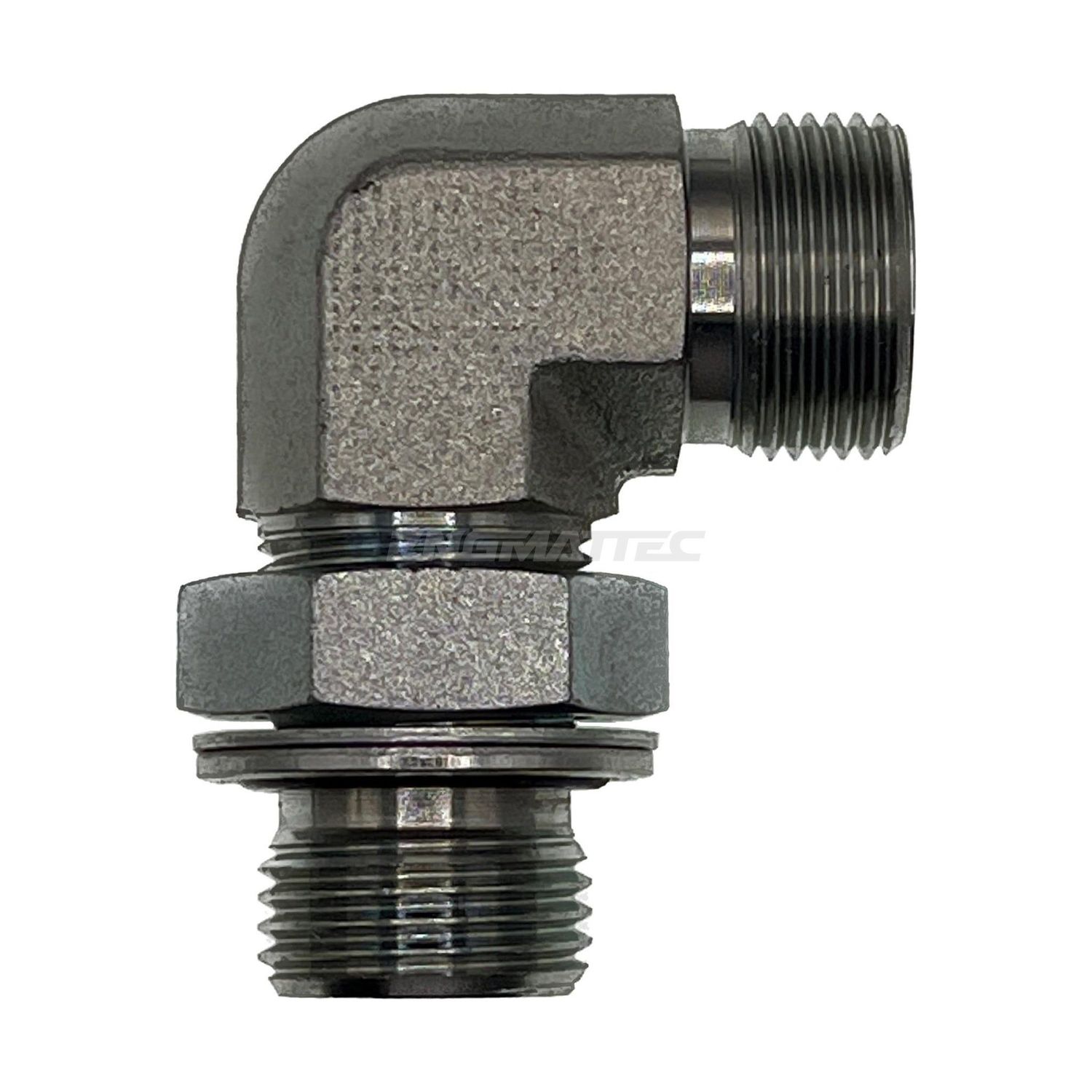

BSP Parallel Male x Metric Heavy (S) Male 90° Compact Elbow

BSPP one end, DIN 2353 heavy-series metric 24° cone the other, at 90°. The crossover for European hydraulics landing on British or Australian ports, on the heavy series where pressures are high.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• Heavy (S) and Light (L) metric series share some thread sizes but not tube diameters or pressure ratings. Confirm which series the port is before ordering.
• Metric 24° sizes are quoted by tube outside diameter, not thread size.
• The BSPP end seals on a bonded washer; the metric end seals on its cone. Tape neither.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

Heavy series is specified because the line runs high pressure, so do not be tempted to make it fit with a light series part that happens to thread on. The thinner L-series wall is the part that lets go, and it usually does so under load rather than on the bench.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L1	L2	S1	D1	D2	Material	Finish
BPM-MHM-90C-0414	M12x1.5 - 6S	1/4" BSPP	M12x1.5 - 6S	1/4" BSPP	23mm	32mm	19mm	4mm	6mm	Mild steel	Plated finish
BPM-MHM-90C-0416	M14x1.5 - 8S	1/4" BSPP	M14x1.5 - 8S	1/4" BSPP	24mm	32mm	19mm	5mm	7.5mm	Mild steel	Plated finish
BPM-MHM-90C-0616	M14x1.5 - 8S	3/8" BSPP	M14x1.5 - 8S	3/8" BSPP	24mm	37mm	22mm	5mm	9.9mm	Mild steel	Plated finish
BPM-MHM-90C-0618	M18x1.5 - 10S	3/8" BSPP	M18x1.5 - 10S	3/8" BSPP	25mm	37mm	22mm	7mm	9.9mm	Mild steel	Plated finish
BPM-MHM-90C-0620	M20x1.5 - 12S	3/8" BSPP	M20x1.5 - 12S	3/8" BSPP	29mm	37mm	22mm	8mm	9.9mm	Mild steel	Plated finish
BPM-MHM-90C-0820	M20x1.5 - 12S	1/2" BSPP	M20x1.5 - 12S	1/2" BSPP	29mm	43mm	27mm	8mm	12.3mm	Mild steel	Plated finish
BPM-MHM-90C-0822	M22x1.5 - 14S	1/2" BSPP	M22x1.5 - 14S	1/2" BSPP	30mm	44mm	27mm	10mm	10.5mm	Mild steel	Plated finish
BPM-MHM-90C-0824	M24x1.5 - 16S	1/2" BSPP	M24x1.5 - 16S	1/2" BSPP	33mm	47mm	27mm	12mm	12.3mm	Mild steel	Plated finish
BPM-MHM-90C-1230	M30x2 - 20S	3/4" BSPP	M30x2 - 20S	3/4" BSPP	37mm	51mm	36mm	16mm	15.5mm	Mild steel	Plated finish
BPM-MHM-90C-1236	M36x2 - 25S	3/4" BSPP	M36x2 - 25S	3/4" BSPP	41.3mm	59.5mm	36mm	20mm	15.5mm	Mild steel	Plated finish
BPM-MHM-90C-1636	M36x2 - 25S	1" BSPP	M36x2 - 25S	1" BSPP	42mm	59mm	41mm	20mm	21.5mm	Mild steel	Plated finish
BPM-MHM-90C-1642	M42x2 - 30S	1" BSPP	M42x2 - 30S	1" BSPP	49.4mm	56.7mm	41mm	25mm	21.5mm	Mild steel	Plated finish
BPM-MHM-90C-2042	M42x2 - 30S	1.1/4" BSPP	M42x2 - 30S	1.1/4" BSPP	49mm	59mm	50mm	25mm	27.5mm	Mild steel	Plated finish
BPM-MHM-90C-2452	M52x2 - 38S	1.1/2" BSPP	M52x2 - 38S	1.1/2" BSPP	57mm	66mm	55mm	32mm	33mm	Mild steel	Plated finish

Key: L1 length 1, L2 length 2, S1 hex across flats 2, D1 bore 1, D2 bore 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
