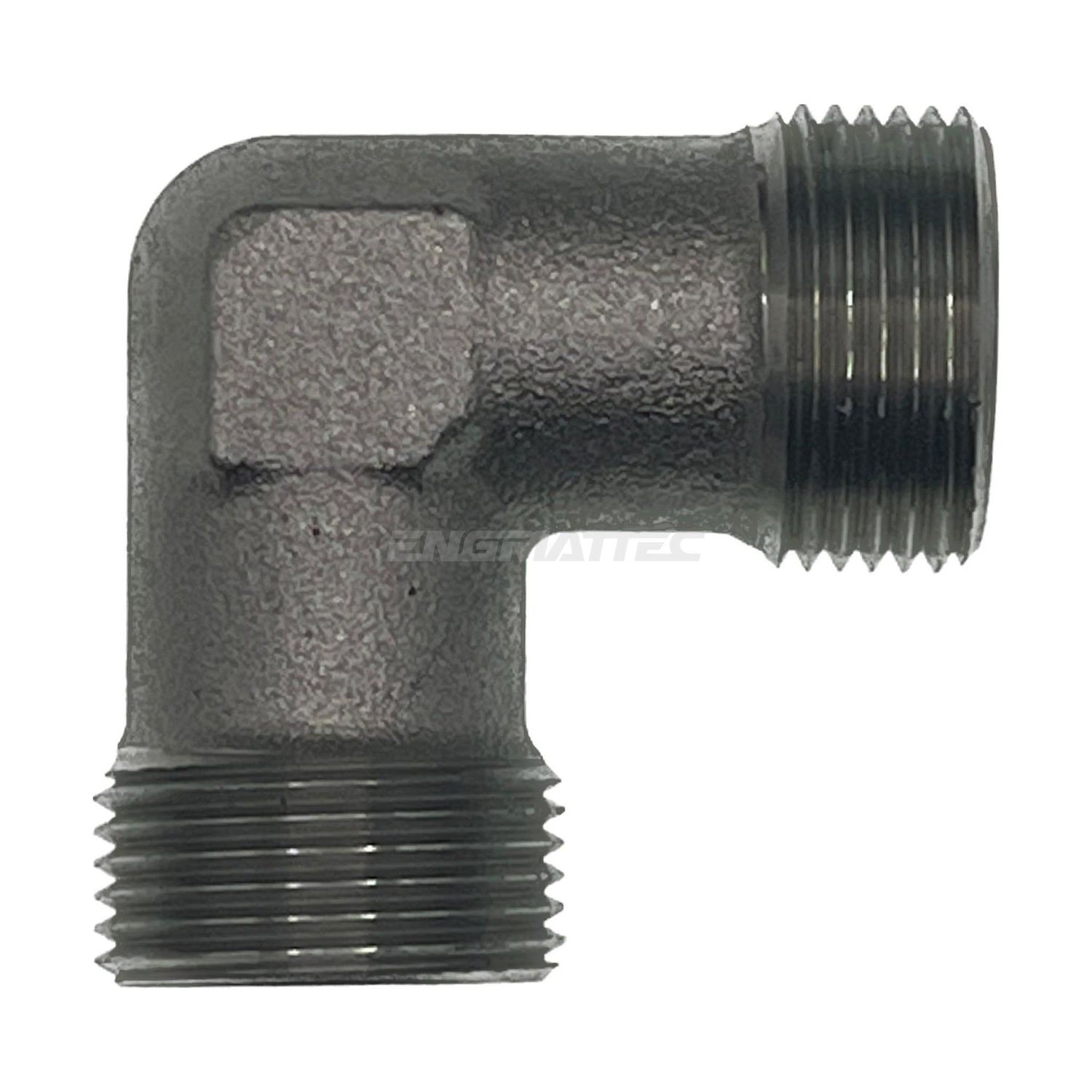

Metric Heavy (S) Male x Metric Heavy (S) Male 90° Compact Elbow

Male-to-male heavy-series metric at 90°, for joining two swivel nuts or turning a tube run on European high-pressure work.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• Both ends are 24° cone male and need a swivel female or coned port to land on.
• Unequal sizes are stocked - a 16S to 12S saves stacking a reducer on the end.
• Heavy series is not interchangeable with light series even where the thread appears to fit.

Technicians Advice

Both nuts should spin freely by hand right up to contact. If one tightens early the cone is not aligned - back it off and restart rather than forcing it. A cross-started 24° nut galls the cone and neither part is worth saving after that.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	S	Material	Finish
MHM-MHM-90C-1414	12mm	Mild steel	Plated finish
MHM-MHM-90C-1616	14mm	Mild steel	Plated finish
MHM-MHM-90C-1818	17mm	Mild steel	Plated finish
MHM-MHM-90C-2020	17mm	Mild steel	Plated finish
MHM-MHM-90C-2222	19mm	Mild steel	Plated finish
MHM-MHM-90C-2424	24mm	Mild steel	Plated finish
MHM-MHM-90C-3030	27mm	Mild steel	Plated finish
MHM-MHM-90C-3636	36mm	Mild steel	Plated finish
MHM-MHM-90C-4242	41mm	Mild steel	Plated finish
MHM-MHM-90C-5252	50mm	Mild steel	Plated finish

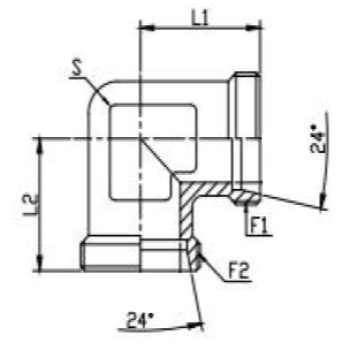

Key: S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads
