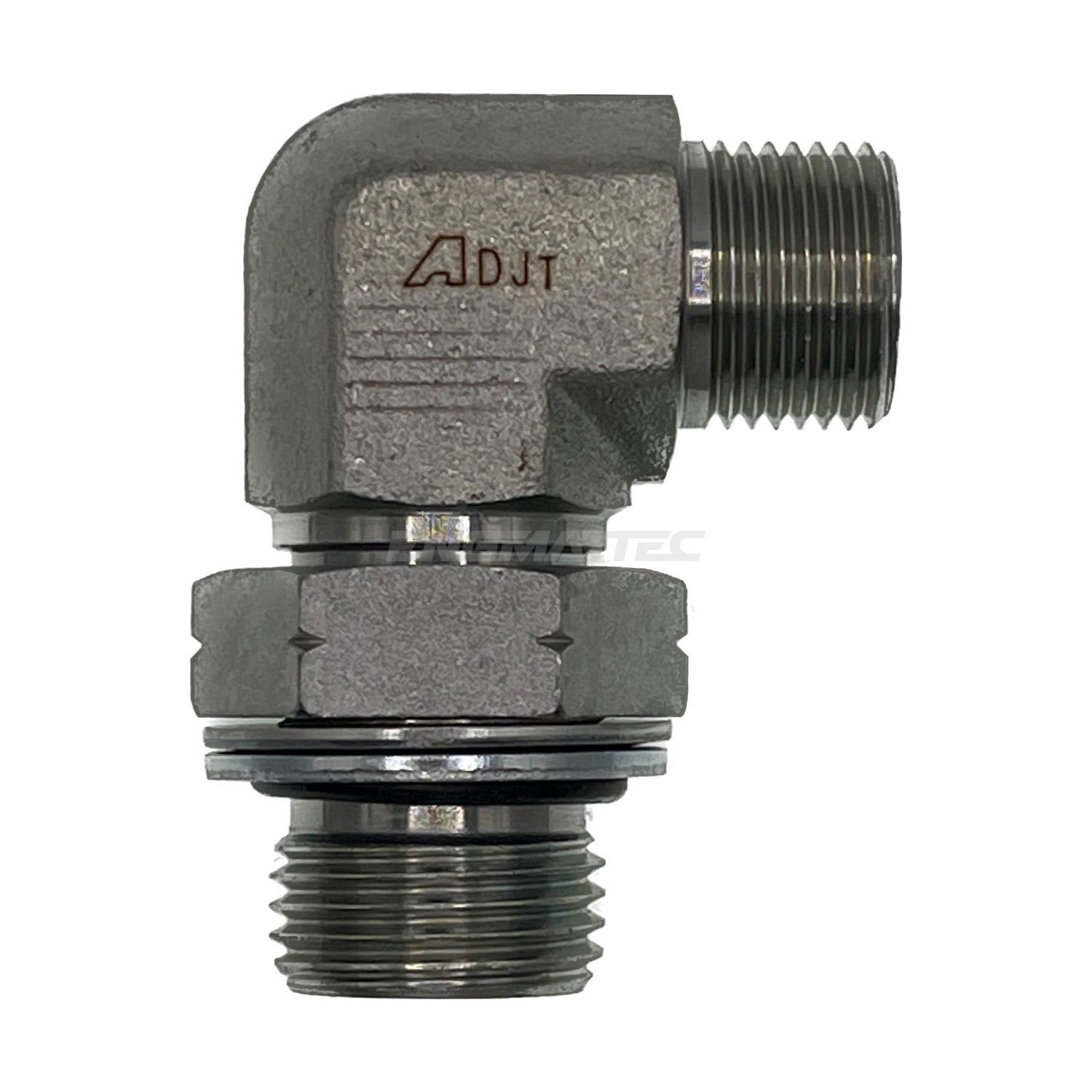

BSP Parallel Male x Metric Light Male 90° Compact

90° elbows are the tight-space workhorse – they turn a connection hard against a wall, ram or chassis rail where a straight fitting plus bent hose simply will not fit.

Ways to buy:

• Off the shelf – pick your size from the dropdown below and it’s on its way.
• Need a size or combination you can’t see? Call us – if it exists, we can get it.

Pick your size

What is in the box

One fitting as per your selection.

Specifications

How to choose

• Match both thread ends to what you are joining; the elbow just turns the corner.
• Compact (C) elbows suit the tightest spots; long-sweep versions ease flow where space allows.
• Minimum hose bend radius still applies after the elbow – the elbow buys you direction, not slack.
• Not sure? Call us and we will confirm the size.

Technicians Advice

Aim the elbow before final torque – on bonded-washer ends the last quarter turn sets both seal and direction, so start the washer with the elbow pointing about 30° short of where you want it. Never spring the hose to meet the fitting; if the hose loads the elbow sideways it will loosen and weep. Elbows are the biggest single pressure-drop item in a fitting chain – on high-flow lines use two 45s or a swept path instead of stacking 90s.
