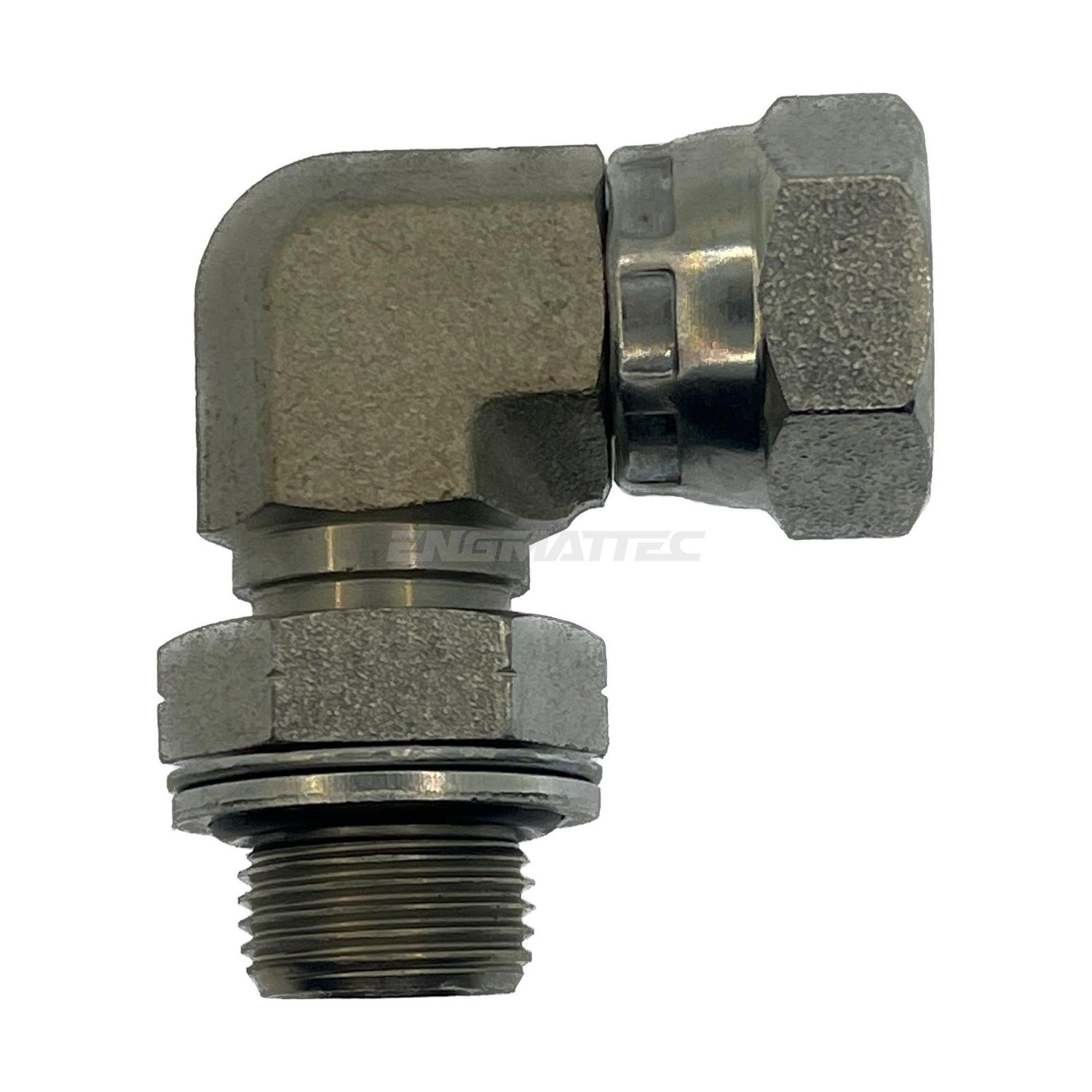

BSP Parallel Male x BSP Swivel Female 90° Compact Elbow

Parallel male into the port, swivel female out to the hose, turned 90°. The swivel end means the hose can be lined up and tightened without twisting it, which is why this is the standard way to bring a BSP hose off a BSP port at a right angle.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• BSP Swivel Female – BSPP to ISO 228 with a 60° internal cone seat. It seals on the cone and swivels, so it needs no tape or sealant.

How to Choose

• The swivel female seals on a 60° cone seat, so it takes no tape or sealant at all.
• The parallel male end needs a bonded washer against the port face.
• Check the port is parallel and not tapered before ordering. The two thread forms start the same and then bind.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• BSP Swivel Female – Hose ends across Australian-built assemblies, and anywhere a joint has to be broken and remade repeatedly.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• BSP Swivel Female – BSPP body to ISO 228 with a 60° cone seat. Commonly called a BSP swivel or BSP female cone seat.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

Two different sealing methods on one fitting catches people out. Tape belongs on neither end here, and if the swivel weeps the answer is to look at the cone seat for a score mark rather than to keep pulling on it. Overtightening a 60° cone bells the seat and then nothing will seal it.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	H2	S1	Material	Finish
BPM-BSF-90C-0202	1/8" BSPP Male	1/8" BSPP Female	14mm	14mm	11mm	Mild steel	Plated finish
BPM-BSF-90C-0404	1/4" BSPP Male	1/4" BSPP Female	19mm	19mm	14mm	Mild steel	Plated finish
BPM-BSF-90C-0606	3/8" BSPP Male	3/8" BSPP Female	22mm	22mm	19mm	Mild steel	Plated finish
BPM-BSF-90C-0808	1/2" BSPP Male	1/2" BSPP Female	27mm	27mm	22mm	Mild steel	Plated finish
BPM-BSF-90C-1212	3/4" BSPP Male	3/4" BSPP Female	32mm	32mm	27mm	Mild steel	Plated finish
BPM-BSF-90C-1616	1" BSPP Male	1" BSPP Female	38mm	41mm	33mm	Mild steel	Plated finish
BPM-BSF-90C-2020	1.1/4" BSPP Male	1.1/4" BSPP Female	50mm	50mm	41mm	Mild steel	Plated finish

Key: H centre to face, H2 centre to face 3, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
