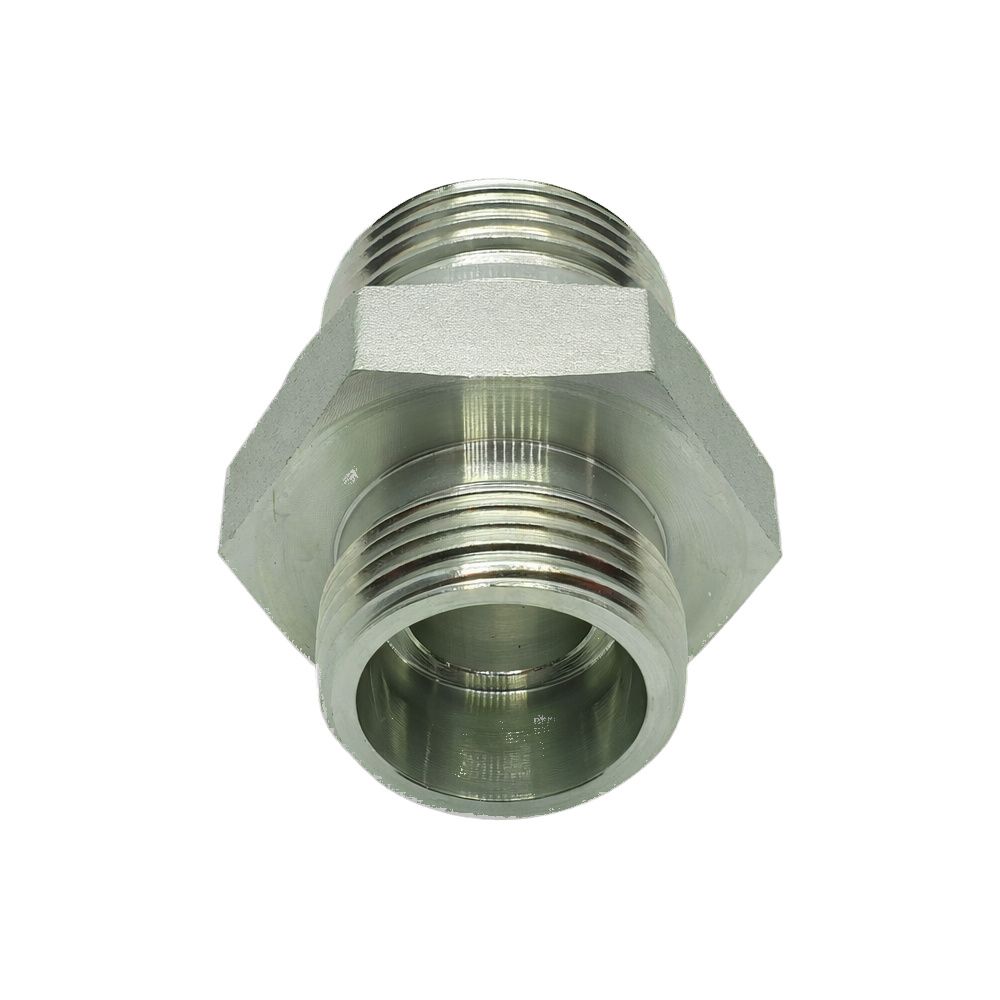

BSP Parallel Male x Metric Heavy (S) Male Straight Adaptor

BSPP one end, DIN 2353 heavy-series metric 24° cone the other. The crossover for European hydraulics landing on British or Australian ports on the pressure side, where the heavy series is specified.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• Heavy (S) and light (L) share some thread sizes but not tube diameters or pressure ratings. Confirm the series before ordering.
• Metric 24° sizes are quoted by tube outside diameter, not thread size.
• Bonded washer at the BSPP end, cone at the metric end. Tape neither.

Technicians Advice

Heavy series is specified because the line runs high pressure, so do not make it fit with a light-series part that happens to thread on. The thinner L-series wall is what lets go, and it does it under load rather than on the bench.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BPM-MHM-0214	M14x1.5 - 6S	1/8" BSPP	–	–	Mild steel	Plated finish
BPM-MHM-0414	M14x1.5 - 6S	1/4" BSPP	32mm	19mm	Mild steel	Plated finish
BPM-MHM-0416	M16x1.5 - 8S	1/4" BSPP	32mm	19mm	Mild steel	Plated finish
BPM-MHM-0418	M18x1.5 - 10S	1/4" BSPP	34mm	19mm	Mild steel	Plated finish
BPM-MHM-0420	M20x1.5 - 12S	1/4" BSPP	36mm	22mm	Mild steel	Plated finish
BPM-MHM-0616	M16x1.5 - 8S	3/8" BSPP	34.5mm	22mm	Mild steel	Plated finish
BPM-MHM-0618	M18x1.5 - 10S	3/8" BSPP	35mm	22mm	Mild steel	Plated finish
BPM-MHM-0620	M20x1.5 - 12S	3/8" BSPP	36mm	22mm	Mild steel	Plated finish
BPM-MHM-0622	M22x1.5 - 14S	3/8" BSPP	33.5mm	24mm	Mild steel	Plated finish
BPM-MHM-0624	M24x1.5 - 16S	3/8" BSPP	37mm	27mm	Mild steel	Plated finish
BPM-MHM-0818	M18x1.5 - 10S	1/2" BSPP	39mm	27mm	Mild steel	Plated finish
BPM-MHM-0820	M20x1.5 - 12S	1/2" BSPP	38mm	27mm	Mild steel	Plated finish
BPM-MHM-0822	M22x1.5 - 14S	1/2" BSPP	41mm	27mm	Mild steel	Plated finish
BPM-MHM-0824	M24x1.5 - 16S	1/2" BSPP	41mm	27mm	Mild steel	Plated finish
BPM-MHM-0830	M30x2 - 20S	1/2" BSPP	45mm	32mm	Mild steel	Plated finish
BPM-MHM-0836	M36x2 - 20S	1/2" BSPP	49mm	41mm	Mild steel	Plated finish
BPM-MHM-1224	M24x1.5 - 16S	3/4" BSPP	45mm	32mm	Mild steel	Plated finish
BPM-MHM-1230	M30x2 - 20S	3/4" BSPP	44mm	32mm	Mild steel	Plated finish
BPM-MHM-1236	M36x2 - 25S	3/4" BSPP	51mm	41mm	Mild steel	Plated finish
BPM-MHM-1630	M30x2 - 20S	1" BSPP	49mm	41mm	Mild steel	Plated finish
BPM-MHM-1636	M36x2 - 25S	1" BSPP	53mm	41mm	Mild steel	Plated finish
BPM-MHM-1642	M42x2 - 30S	1" BSPP	55mm	46mm	Mild steel	Plated finish
BPM-MHM-2042	M42x2 - 30S	1.1/4" BSPP	57mm	50mm	Mild steel	Plated finish
BPM-MHM-2052	M52x2 - 38S	1.1/4" BSPP	62mm	55mm	Mild steel	Plated finish
BPM-MHM-2452	M52x2 - 38S	1.1/2" BSPP	52mm	55mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
