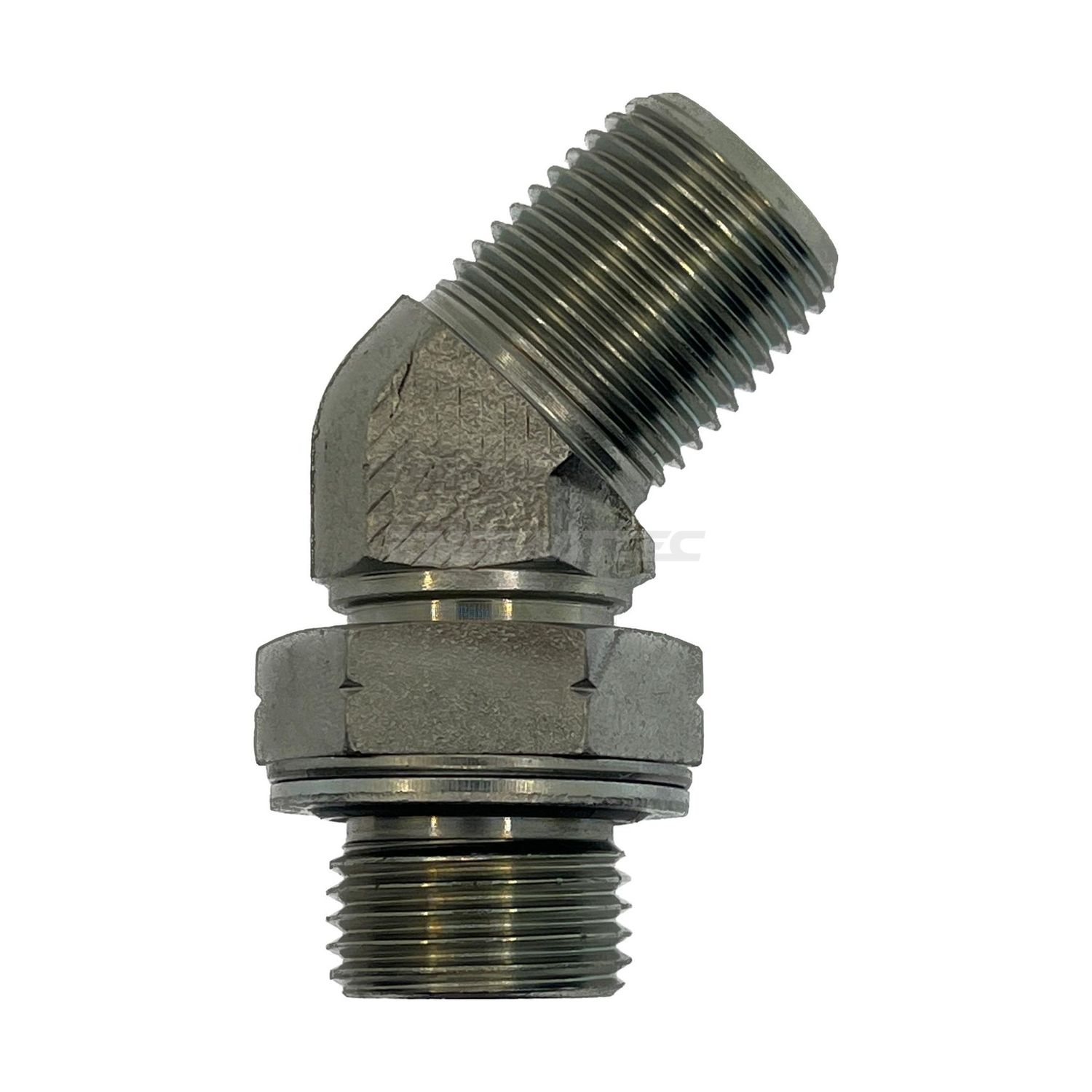

BSP Parallel Male x BSP Tapered Male 45° Compact Elbow

A short-body 45° elbow that turns a line part-way without the bulk of a swept bend – the fitting to reach when a hose wants to leave a port on an angle but there is no room to arc it. One end is BSP parallel male, the other BSP tapered male, so it also lets you step between the two BSP families in a single fitting. Standard kit on Aussie-built tippers, truck bodies, Kanga and Dingo loaders, Merlo, Manitou, JCB and general farm machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Male – BSPP to ISO 1179 / BS 2779. It seals on a 60° cone seat or a bonded washer under the hex.
• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself.

How to Choose

• First number is the parallel end, second is the tapered end – check both with the chart below.
• Compact means the shortest body available in this bend. If you have room, a swept elbow flows better.
• Zinc-plated carbon steel. 316 stainless is available in our Stainless Steel range.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

The two ends behave completely differently and that catches people out. The parallel end seals on its cone seat or bonded washer – no tape, no sealant, just torque it. The tapered end seals on the thread and does want a sealant or PTFE tape, wound with the thread and kept two threads back from the leading edge so nothing shears off into the circuit. Never put tape on the parallel end.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	Material	Finish
BPM-BTM-45C-0404	1/4" BSPT	1/4" BSPP	19mm	14mm	Mild steel	Plated finish
BPM-BTM-45C-0606	3/8" BSPT	3/8" BSPP	22mm	19mm	Mild steel	Plated finish
BPM-BTM-45C-0808	1/2" BSPT	1/2" BSPP	27mm	22mm	Mild steel	Plated finish
BPM-BTM-45C-1212	3/4" BSPT	3/4" BSPP	32mm	27mm	Mild steel	Plated finish
BPM-BTM-45C-1616	1" BSPT	1" BSPP	41mm	33mm	Mild steel	Plated finish

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
