VRFU Barrel Flow Control Valve with Reverse Free Flow - 3/8" to 1-1/4" BSPP

Store/Hydraulic Valves/Flow Control/Needle and Throttle Valves

Product Details

Weight: 0.46 kg

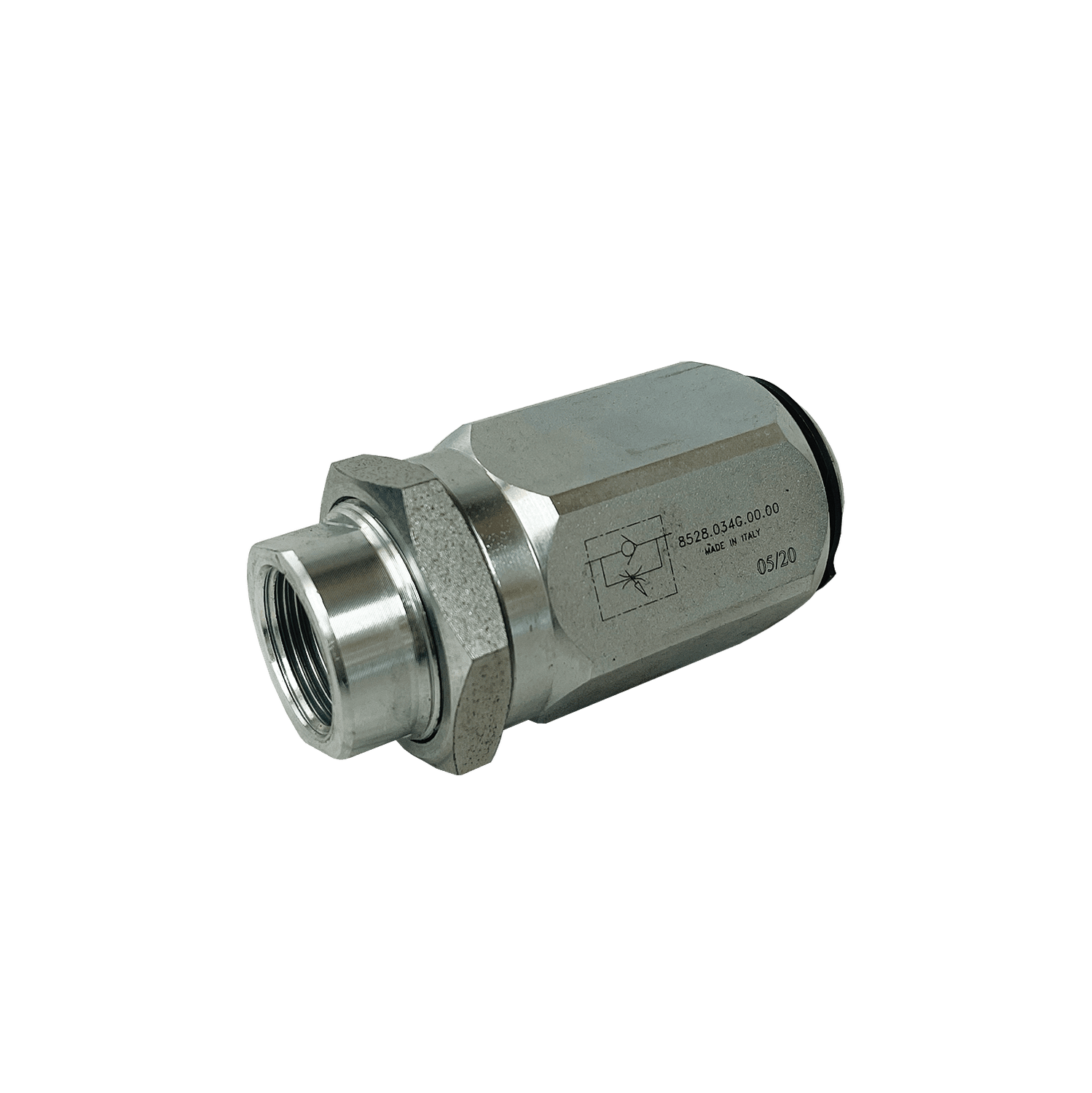

VRFU Barrel Flow Control Valve with Reverse Free Flow - 3/8" to 1-1/4" BSPP

A barrel bodied inline flow control with the reverse free flow check built in. The round body is shorter and lighter than a block type valve of the same rating, which matters when you are fitting into a tight loom. Meters one way, runs free the other.

Ways to buy this valve:

Off the shelf: five port sizes below, 3/8" to 1-1/4" BSPP.
Need a block body or a 1/4" port? The STU range starts at 1/4", button below.
Need both directions restricted? Use a needle valve, button below.
Need the speed to hold as the load changes? That is a pressure compensated valve.

Pick your valve

Port Size	Max Flow	Max Working Pressure	Weight	Part Number
3/8" BSPP	30 L/min	350 bar	0.46 kg	VRFU-038G
1/2" BSPP	45 L/min	350 bar	0.66 kg	VRFU-012G
3/4" BSPP	85 L/min	300 bar	1.10 kg	VRFU-034G
1" BSPP	150 L/min	250 bar	1.90 kg	VRFU-100G
1-1/4" BSPP	200 L/min	250 bar	2.95 kg	VRFU-114G

Pressure drops as the body gets bigger: 350 bar to 1/2", 300 bar at 3/4", 250 bar on the 1" and 1-1/4". Size for your working pressure, not just the port.

What is in the box

One VRFU barrel flow control valve in the size you select
Reverse free flow check built into the body
Female BSPP parallel ports both ends
Knurled adjustment knob

Specifications

Parameter	Value
Valve type	Barrel type in-line flow control, metered one way, free flow the other
Port sizes	3/8", 1/2", 3/4", 1", 1-1/4" BSPP parallel
Max flow	30 to 200 L/min depending on port size
Max working pressure	350 bar, 300 bar at 3/4", 250 bar at 1" and above
Oil	Mineral oil to ISO 6743/4 (DIN 51524)
Oil viscosity	15 to 250 mm²/s
Oil temperature	-20 to +80 °C
Filtration	15 µm
Weight	0.46 to 2.95 kg depending on size

How to choose

Mind the pressure rating on the big sizes. The 1" and 1-1/4" are 250 bar, not 350.
Fit the free flow direction the way you want fast. Check the body marking.
Tight space? This is the shortest body we stock for the flow.
Need 1/4"? The STU range covers it, this one starts at 3/8".
Filtration matters. These want 15 micron oil. Dirty oil scores the needle and the setting drifts.

Technicians Advice

Barrel valves are easy to fit and easy to get wrong, because the body is symmetrical enough that people put them in backwards and only find out when the ram comes back slowly. Look for the marking before you tighten. The 250 bar rating on the two biggest sizes catches people out on truck and crane circuits that sit at 280 or 300 bar, so check your relief setting before you pick the 1". Filtration is not optional advice on these: the factory asks for 15 micron, and if the oil is dirty the taper gets scored and the valve will not hold a setting. If the adjustment feels notchy or the speed wanders with no change in load, pull it out and look at the needle before you blame the pump.

Official Datasheets

📄 VRFU Barrel Flow Control Datasheet (PDF)
