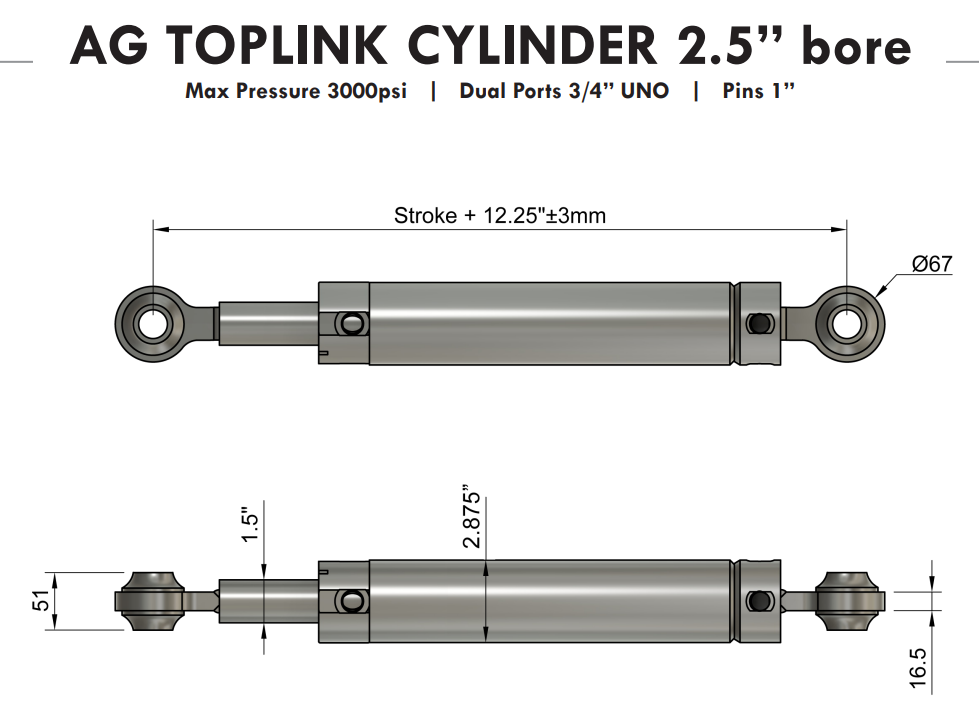

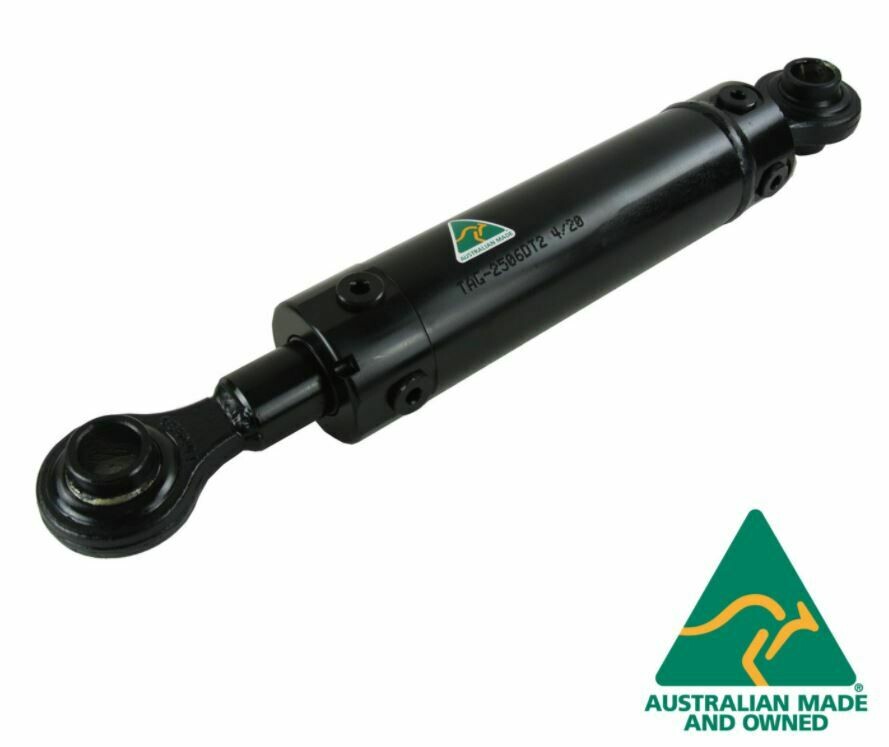

Top Link Hydraulic Cylinder with a 2.5" inch Bore x 1.5" inch rod fitted with self-aligning "Category Two" (2) Ball End Bearings at each end, designed to fit 1" inch diameter pins.

These top link cylinders are made in Australia to imperial sizes (the MM dimensions are approximate) These are of robust construction with precise tolerances meant for use day in and day out in Australia's harshest conditions. Seal kits are a stock item.

Why a Hydraulic Top Link Cylinder could be the best Upgrade you make this year : especially for your 3 Point Linkage or (3PL).

The primary use of a hydraulic top link cylinder is to replace the traditional mechanical (manual) top link on a tractor's three-point linkage system. This upgrade offers significant advantages for controlling implements attached to the 3PL.

• On-the-Go Pitch Adjustments: for Ploughs Cultivators and rollers, Eliminate manual pin adjustments, saving time and effort.
• Enhanced Precision: of Depth Control and Weight Transfer of seeders and rippers, helps you achieve finer control over implement settings for improved field efficiency and yield.
• Increased Safety: Reduce the need to dismount as the top link quickly adjust the levels and clearances, especially on uneven ground.
• Reduced Wear & Tear: Proper implement setup can minimize strain on both the tractor and the implement.

Each Top Link Cylinder is Fitted with DUAL 3/4" UNO ports, & comes complete with Category Two (2) Ball end Bearings and 1" pins as each end. Each Cylinder is individually Oil Tested at the Factory and comes with a 2 year warranty.

Please note price for freight may be extra if remote location.

We will discuss with you if this applies Free pick-up is available from Brisbane or Melbourne

Email: sales@hydraulic.online
Phone: 07 5563 1982

If you have any questions please don’t hesitate to contact us for further assistance,
Best regards,
Hydraulic.Online

Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
