Tipper Trailer kit -Hydraulic Ram Cylinder and Power Pack - 1200mm - 5 tonne

Store/Cylinders and Rams for Hydraulics/12 and 24 Volt DC Hydraulic Tipper Cylinders and Kits

Product Details

Weight: 40.00 kg

Tipper Trailer kit -Hydraulic Ram Cylinder and Power Pack - 1,200mm lift - 5 tonne capacity.

This is an hydraulic package for a tipper trailer. This has a 1,200mm stroke telescopic hoist or tipper ram and will suit trailers or ute trays.

It has a 5 tonne, 5 stage, Hydraulic Telecopic ram or Cylinder .

Please watch the video below on how to check on tipping angles and lift heights.

The 12 volt hydraulic powerpack is a high quality single acting unit (that comes down via gravity when the down button is pressed)

It is supplied with a 7.5 litre tank & a push button control pendant.

We also supply a 2.5 metre 4,000psi swaged hose assembly with adapters.

This system suiots an 8' x 5' trailer.

Please see the Chart below to check the tipping angle required for various materials to slide out of a tipped body.

Material	Angle °	Material	Angle °	Material	Angle °
ASHES, DRY	33	COAL, HARD	24	ORE, FRESH MINED	37
ASHES, MOIST	36	COAL, SOFT	30	RUBBLE	45
ASHES, WET	30	COKE	23	SAND, DRY	35
ASPHALT	45	CONCRETE	30	SAND, MOIST	40
CINDERS, DRY	33	EARTH, LOOSE	28	SAND & CRUSHED STONE	27
CINDERS, MOIST	34	EARTH, COMPACTED	50	STONE	30
CINDERS, WET	31	GARBAGE	30	STONE, BROKEN	27
CINDERS & CLAY	30	GRAVEL	40	STONE, CRUSHED	30
CLAY	45	ORE, DRY	30

We do have a couple add on options.

An adjustable SPEED CONTROL VALVE on the power pack to adjust downward rate speed for ram.

SAFETY BURST VALVE. By law, it is mandatory to have a steel on steel Safety valve installed to cylinders in case of a hose being ripped of, & the load dropping. To use one of these safety valves, you must also select the Speed control as these are flow sensitive.

Ideal mounting place: at least half of tray length away from rear hinge.

Always have minimum 15 mm pull out when mounting ram

You will be required to hook up power to the power pack, high amp weld cable is recommended. Please note; power pack is to be mounted horizontally, you must contact us if you wish to mount vertically as we need to adjust oil pick up in tank.

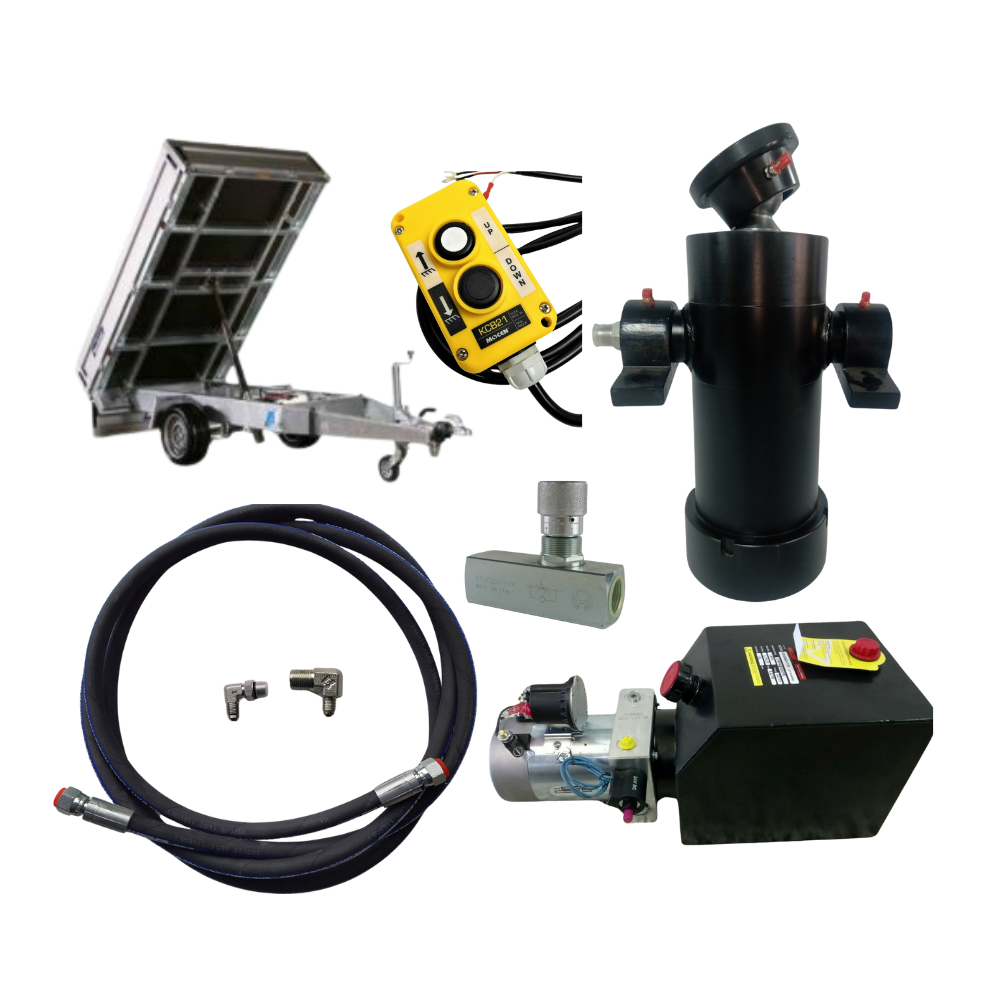

What you get ;

1,200 mm Stroke 5 tonne, 5 stage, telescopic ram. 425mm closed height, 6 litre oil capacity, 29kg. Complete with mounting Saddles
12 V Single acting power pack with cable control pendant 7.5 Litre tank
2.5 metre long 4,000psi hose & fittings

OPTIONS;

Speed control for descent of tray

Burst valve for ram

Freight. Freight can be extreme for some remote areas. We will call to discuss best price & options if you fall into this bracket, ie WA

Use ISO 48 Hydraulic Oil or ATF Fluid for this unit
