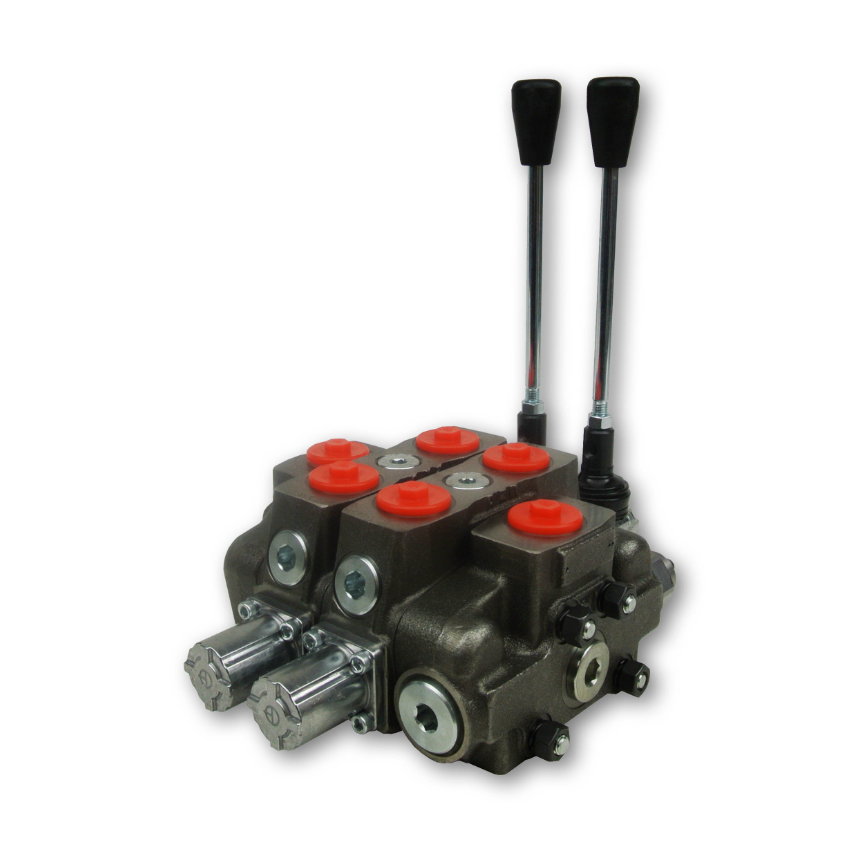

SN8 Sectional Hydraulic Valve flows up to 220 Lt/Min. 1 To 12 Sections for Complex high flow Multifuction Systems, Earth Movers, Industrial Compactors.

This listing is for a Premium quality 220 Lt/Min Sectional valve. It is available in 1, 2, 3, ... up to 12 sections. (see price drop box opposite photo)

We can do up to 12 sections, Joy Sticks with 2 section operation, hydraulic pilot kits, air/electric actuators, port reliefs, anti shock valves for each port etc, please contact us for your specific requirements or project.

(07) 5563 1982 or 1300 1 HOSES

or email us at sales@mhfgc.com.au

The valve comes standard: with cylinder spools, but we can customize it with motor spools Hydraulic Pilots, Detent kits & air over electric, or Full Pneumatic solenoids.

Basic Features

• 220 Lt.min maximum flow
• Relief valve standard 25-315 bar range
• Standard setting 125 bar
• Port cavities in all sections

This 220 Lt/Min flow rate is commonly used for units that have large/long hydraulic cylinders that require a larger volume of oil to move quickly eg. Industrial compactors and larger Excavators etc.

We also stock a smaller 140 Lt/min model
Click Here to view Details

These valves are regularly used in hydraulic circuits to divert high flow and pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

Specifications

• Construction = Sectional
• Material of Construction = Steel
• No of Spools = 1 – 12
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = 220 liters/min (55 Gallons per Minute)
• Max Working Pressure = 315 Bar (4750 PSI)
• Spool Type = Cylinder. Motor Spools are also available at no extra charge
• Spool Movement = Lever action, Spring Return to Center.
• Detent Kits are also available (with or without spring to center)
• Built-in Relief Valve = Adjustable (factory set at 1800PSI)
• Dimensions. Please refer to the photos,
• Ports Sizes
• Pressure Port 1" BSPP
• Power beyond 1-1/4" BSPP
• Cylinder Ports 1" BSPP
• Tank Port 1-1/4" BSPP
• Operating temperature range: -20 °C to + 80°C
• Weight 5 - 45 KG

Please send us a message for more information
Email: sales@hydraulic.online
Phone: 07 5563 1982
Hours: 8 am to 5 pm Monday - Thursday, Friday 8 am to 3 PM, excluding public holidays
If you have any questions please don’t hesitate to contact us
Best regards,
Hydraulic.Online

MM All New 19/01/2025 abc $

Technicians Advice

At 220 L/min plumbing is everything: full-size feed and return lines or the oil cooks. Sections can be added later – buy the inlet and outlet right and grow the bank as the machine grows. Call us and we will spec sections, spools and relief for your circuit.
