Danfoss OMS 200 Orbital Hydraulic Motor 151F0504 Genuine

Name: Danfoss OMS 200 Orbital Hydraulic Motor | Genuine 151F0504
Brand: DANFOSS
SKU: OMS 200
Price: 799.0 AUD
Availability: InStock

Store/Hydraulic Motors - Gerotor, Geroler, Disc Valve and Gear Motors/Orbital Motors/Heavy Duty Motors (Disc Valve)

SKU OMS 200

AU$799.00

High-Torque Danfoss Disc Valve Orbital Motor | 200cc | Compatible with Eaton 2000, White RE, Parker TG Motors

In stock: 21 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Danfoss OMS 200 Orbital Hydraulic Motor 151F0504 Genuine

Store/Hydraulic Motors - Gerotor, Geroler, Disc Valve and Gear Motors/Orbital Motors/Heavy Duty Motors (Disc Valve)

Product Details

Brand: DANFOSS

Motor Technology: Disc Valve

Range: Genuine Danfoss

Weight: 12.00 kg

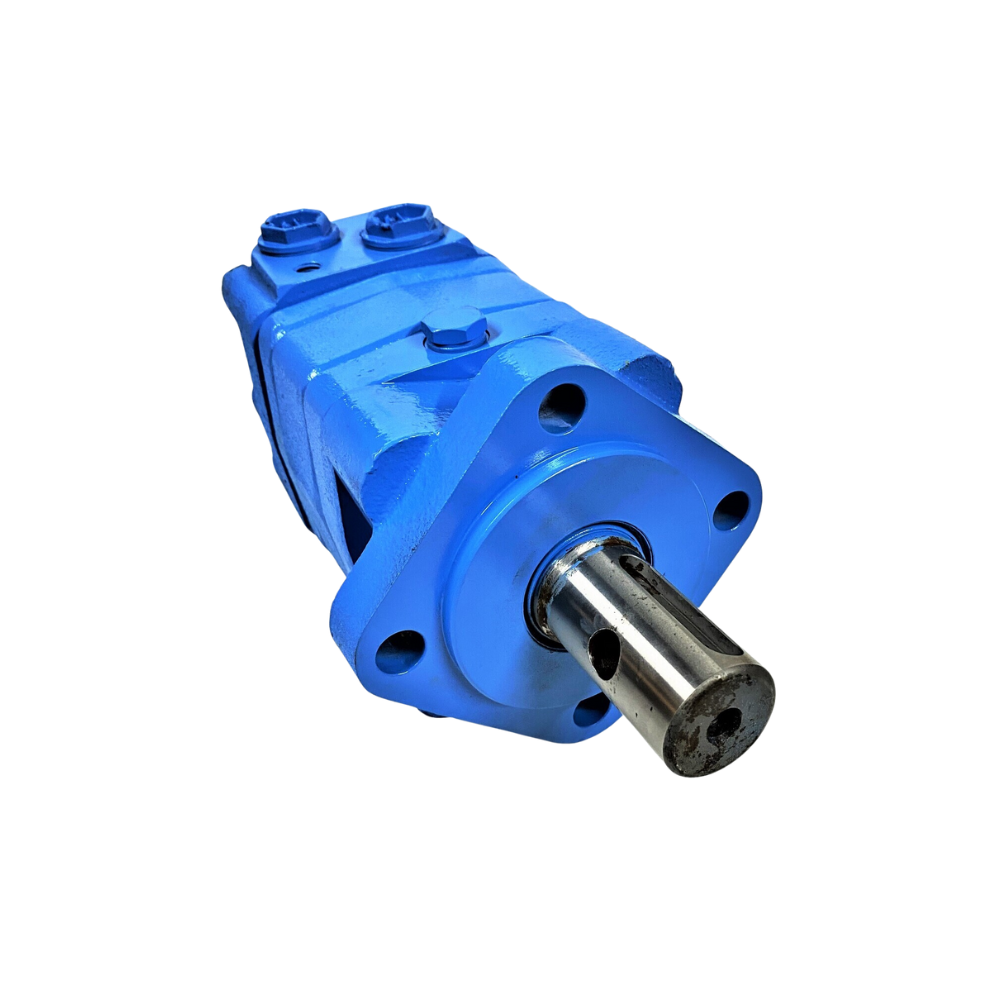

Genuine Danfoss OMS 200 Orbital Hydraulic Motor

Part Number: 151F0504 | Series: MS/OMS High-Torque Performance

This genuine Danfoss OMS 200 is a high-performance, disc valve, roll-gerotor orbital motor designed for heavy-duty industrial and mobile applications. Engineered for reliability, these motors deliver smooth, high-torque power across a broad speed range.

Exclusive Stock Opportunity

Limited Stock: 23 units available, unused old-stock in original boxes.
Quality Guaranteed: Every unit is professionally test-run prior to dispatch.
OEM Feature: These units feature a pre-drilled hole through the 32mm shaft (standard for certain OEM applications); this has no impact on performance or structural integrity.

Industrial Applications

The Danfoss OMS/MS series is the industry standard for high-durability environments, trusted by operators in:

Agriculture: Grain augers, harvesters, and seeding equipment.
Construction: Asphalt pavers, trenchers, and skid-steer attachments.
Manufacturing: Metalworking machines and heavy-duty conveyor systems.
Mining & Specialized Vehicles: Mining machinery and food industry processing lines.

Technical Specifications (151F0504)

Feature	Detailed Specification
Displacement	200.0 cm³/rev [12.2 in³/rev]
Mounting Flange	4-Bolt Square Mount (106.4 mm PCD) with 82.5 mm diameter locating spigot.
Shaft Type	32mm diameter Straight Parallel Shaft with 10 x 8 x 45 mm key
Max Oil Flow	75 Lt/min (Continuous.) / 90 Lt/min (Intermittent.)
Max Speed	375 RPM (Continuous.) / 450 RPM (Intermittent.)
Max Torque	610 Nm [450 lb/ft] Continuous
Pressure Drop	210 bar [3,050 PSI] Continuous
Main Port Sizes	2 x 1/2" BSPP
Case Drain Port	1/4" BSPP (Case Drain)

Click Here For a PDF of full Specifications (M+S Bulgaria)

Compatibility & Interchangeability

The Danfoss OMS series is dimensionally and functionally compatible with several industry-standard orbital motors. This 200cc model is a direct equivalent to:

Eaton / Char-Lynn: 2000 Series
White Drive Products: RE / CE Series
Parker: TG / TF Series
M+S Hydraulic: MS 200 Series

Technician’s Advice: Installation & Commissioning

To ensure the maximum service life of your new motor, our hydraulic technicians recommend the following procedures:

System Hygiene: Ensure oil filtration is at least 25 microns (ISO 20/16) to protect internal roll-gerotor components.
Housing Pre-Fill: Crucial — always fill the motor housing with clean hydraulic fluid before start-up to prevent dry-running.
Break-in: Always run the motor at moderate load and speed for 10-15 minutes prior to full operation.
Drain Line: Always connect the case drain line if return pressures are expected to exceed shaft seal limits.

MM 19/05/2026 SEO ABC PST

Express shipping Australia-wide. We dispatch daily to New South Wales, Victoria, Queensland, Western Australia, South Australia, Tasmania, the Australian Capital Territory and the Northern Territory – Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin, plus regional and remote sites.

Technicians Advice

Connect the case drain to tank - a blocked or missing drain is the number one killer of shaft seals on orbital motors. Grease the splines lightly on assembly; a dry spline frets under reversing loads. Run the motor at moderate load for the first 5-10 minutes before full pressure, and check the mounting bolts after the first day of work.
