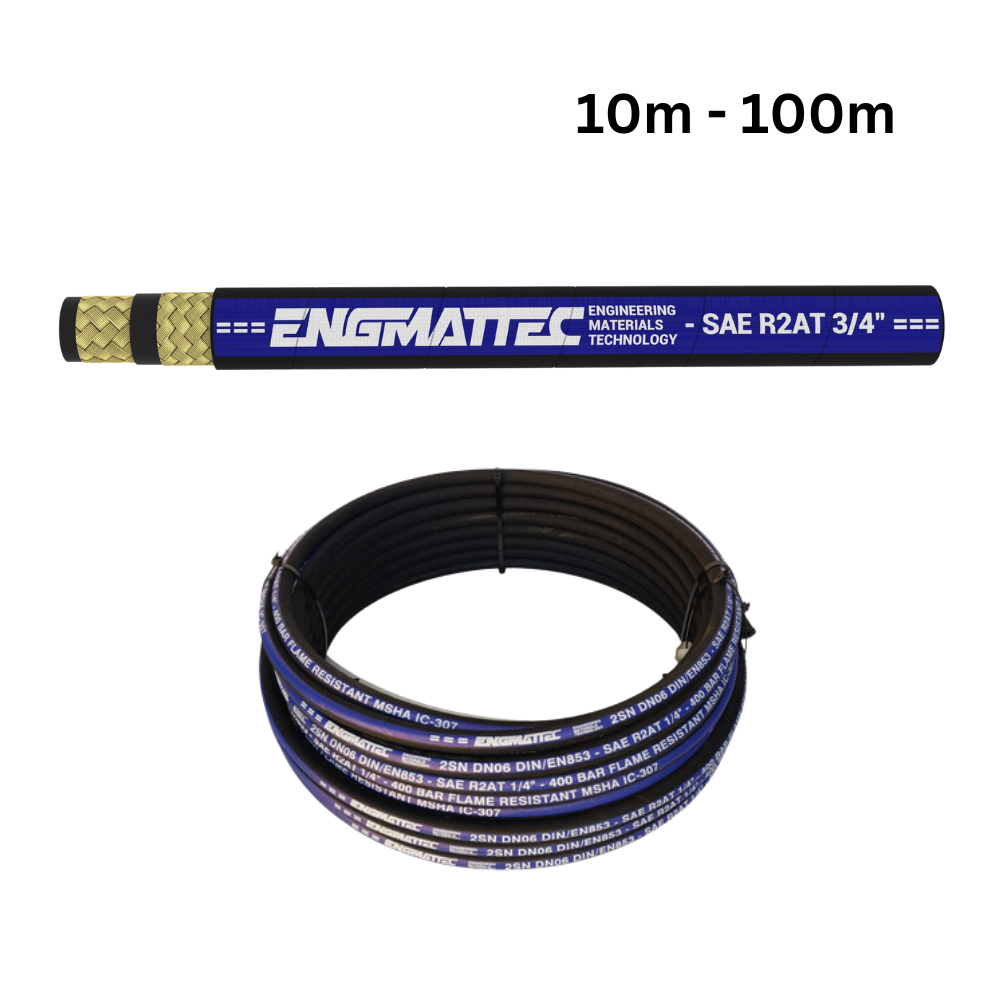

ENGMATTEC SAE100R2 – 12 (3/4 inch bore) Two Wire Non Skive Hydraulic Hose 2SN
3/4" Two Wire Hydraulic Hose pressure is rated to 3,100 psi (215 bar)
Available in 10, 20, meter coils and in 50 and 100-meter reels.

Specifications

Working Pressure Range to 3,100PSI (215 bar)

Burst Pressure: 9,570 PSI (860 bar (Minimum)

Range of Temperature: -40⁰C to + 120⁰C

Minimum Bend Radius: 300mm

Weight: 1.0 kg / Mtr

Hose Construction
Synthetic rubber inner tube with Two layers of braided high tensile steel wire reinforcement
and wrapped, in an Oil, Ozone, weather, and abrasion-resistant synthetic rubber outer cover.

We are also able to custom-make hose assemblies with swage on hose ends,
or we can supply Do It Yourself 3/4" inch field fit reusable hose tails to suit this hose.

Applications
High-pressure service with petroleum-based hydraulic fluids for marine, earthmoving, mobile plant and equipment,
High-pressure water, for pressure washing, excavation, and drain cleaning,

Compressed Air, for workshop and air motors and large cylinders,
Water glycol for chillers, water oil for machining centers, fire-resistant hydraulic fluids,

Hot oil and grease for machinery bearings and Bushes, lubricants, crude oil, diesel and heavy fuel oils.
please note for compressed air applications above 100psi, the cover should be pin-pricked.

100R2AT 3/4" DN20 Hose is also fully compatible, interchangeable and or as a direct replacement for the follow brands of hose.

• RYCO AVENGER T212A and RYCO DIEHARD T212D Non-Skive Hoses.
• GATES 12CR2 and
• PARKER 301SN-12 NON SKIVE HOSE
• MANULI FLUICONNECTO 2SN FL2T12
• PIRTEK SAE 100R2AT, SIZES R2AT-12.
• TOTAL RUBBER SUNFLEX SAE 100 R2AT EN 853 2SN, SIZE HYD-R2T-12-SF-S


• 100R2AT 3/4" Hose can also be used with the following hose fittings
• RYCO BITELOK ONE-PIECE CRIMP NON SKIVE T200 AND T700 hose tails
• EATON TTC / Z Series braided hose one-piece bite the wire style hose fittings.
• Southcott Super Crimp S series stems with FNP-12 ferrules as well as Ezi-Crimp Non Skive One Piece Series E fittings.
• CHILD FIELD FIT COUPLINGS Series RMB, RFB, RMJ, RFJ, with BN2-12 non skive Bodies.
• RYCO FIELD ATTACHABLE L SERIES L00-12 FERRULES and 600 SERIES INSERTS.
• TAIPAN 100R2GP-12AHF and 100R2-12AHF hose and K12 series one piece non skive hose tails and or Field Attachable D06 Tails and D2-12 Bodies

This hose is Certified to work without failure a minimum of 200,000 Impulse Cycles (equivalent to almost 1000 excavator earth moving hours) at 133% of maximum pressure (3,100 psi) and at 100% of maximum temperature 120 °C.
