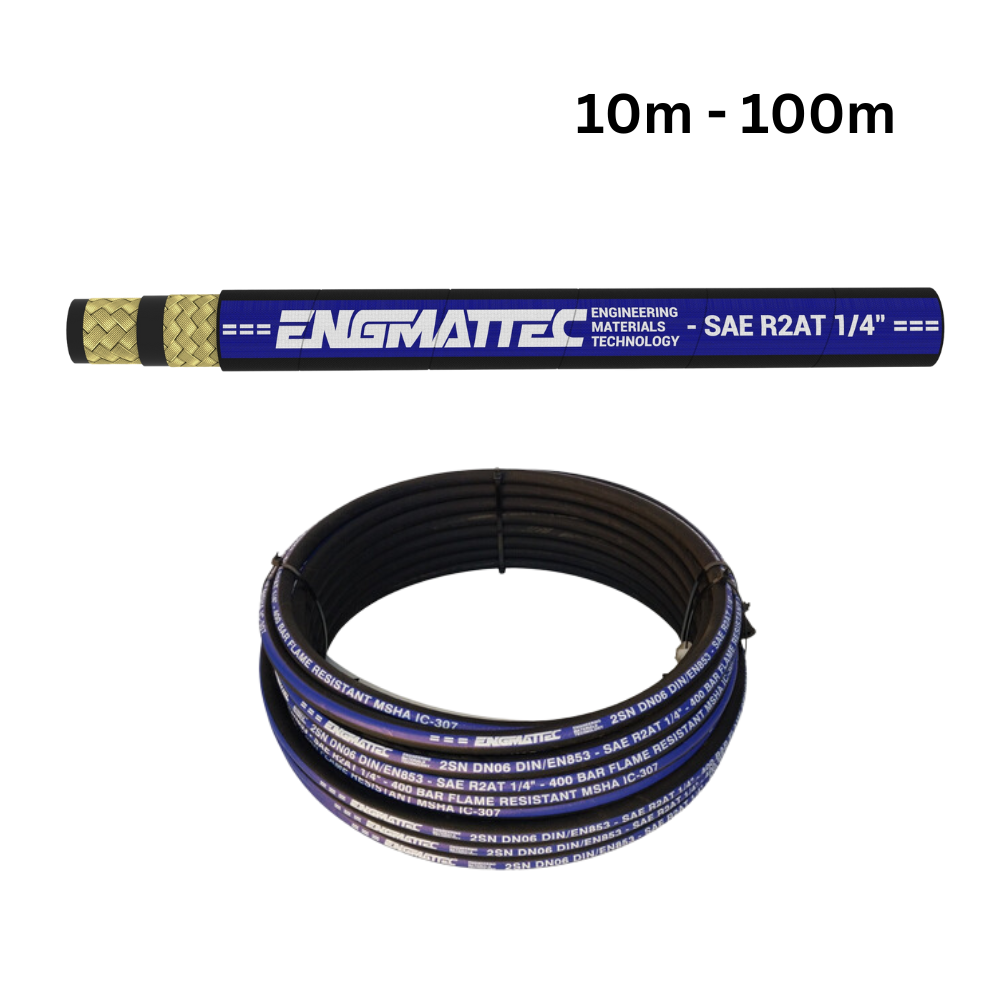

Available from 10 to 100 m long in coils or reels new improved ENGMATTEC 5,800 psi Two Wire Hydraulic Hose

ENGMATTEC ® 1/4" ID two wire Hydraulic Hose,
pressure rated to 400 Bar (5800 PSI)
Flame Resistant ,
MHSA (Mine Safety Health Administration) rated
Temperatures from -40°C to intermittent elevated Temp applications of +120°C

Specifications:

Construction
Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and an oil, Ozone, weather and abrasion-resistant synthetic rubber outer cover.
Application
High-pressure service with petroleum base hydraulic fluids, water, Air, water-glycol, hot oil, grease, lubricants, crude, and fuel oils. For air applications above 100psi, the cover should be pin pricked.

• Pressure Range
• Working Pressure: 400 Bar (5800 PSI)
• Burst Pressure: 23200 PSI (Minimum)
• Range of Temperature -40⁰C to + 120⁰C
• Minimum Bend Radius 100 mm
• Weight 0.35KG/Mtr

Features:
This is a great tough-skinned hose, that is also very flexible.
This hose is Certified to work without failure a minimum of 200,000 Impulse Cycles

(equivalent to almost 1000 excavator earth moving hours)
at 133% of maximum pressure (7715 psi)
and at 100% of maximum temperature 120 °C.
It suits either crimped ends or our D.I.Y field fit reusables also available from this store.

SAE 100R2AT – 04 NON SKIVE HOSE Two Wire.
This is a good quality hose Made to meet or exceed SAE (Society of Automotive Engineers) and German Standard EN 853

ENGMATTEC two-wire hydraulic hoses are fully compatible, interchangeable,
with most other hydraulic hose brands and types.
Compatible with our swage on hosetails or re usable hosetails

See below for more details.
Buy it now online ENGMATTEC Two Wire Hydraulic Hoses 10 - 100 m Coils 3,100 to 5,800 psi

ENGMATTEC is a Non-Skive Hose which means the outer cover does not need to be removed before pressing or screwing on the appropriate Hydraulic Hose Fittings.
Most People Purchase and then Re-order the following four Most Common ENGMATTEC
sizes of Two (2) Wire braided hydraulic hoses and these 4 sizes are as follows.

• 100R2AT 1/4" DN6,
• 100R2AT 3/8" DN10,
• 100R2AT 1/2" DN12,
• 100R2AT 3/4" DN19.

Please contact us for detailed and accurate crimp dimensions

ENGMATTEC SAE100R2AT two 2 wire hydraulic hose is compatible with.
GATES Pro Series 4CR2, 6CR2, 8CR2, 10CR2 and 12CR2
EATON GH195 AQP HI-IMPULSE hoses
MANULI FLUICONNECTO 2SN FL2T04 FL2T06 FL2T08 FL2T12
H01030019 (DOUBLE THIS HOSE’S BEND RADIUS, SLIGHTLY LESS WEAR RESISTANCE)
PARKER 301SN - 4, -6, -8, -12 NON SKIVE HOSE.
PIRTEK SAE 100R2AT,
SIZES R2AT-04, R2AT-06, R2AT-08, R2AT-12.
TOTAL RUBBER SUNFLEX SAE 100 R2AT EN 853 2SN,
SIZES HYD-R2T-04-SF-S, HYD-R2T-06-SF-S, HYD-R2T-08-SF-S, HYD-R2T-12-SF-S
RYCO AVENGER SIZES, T24A, T26A, T28A, T212A and
RYCO DIEHARD SIZES, T24D T26D T28D AND T212D Non-Skive Hoses. (with slightly less wear resistance)

ENGMATTEC'S FOUR MOST COMMON HYDRAULIC HOSE BORE SIZES ARE AS FOLLOWS.,
100R2AT 1/4" DN6,
100R2AT 3/8" DN10,
100R2AT 1/2" DN12,
100R2AT 3/4" DN19

ALL THE Hoses listed above can also be used with the following POPULAR
Brands of Hose Fittings with the following part numbers.

Our own EngMatTec EMT 2 PIECE HOSE TAILS AND FERRULES
ARE AVAILABLE FOR BOTH One (1) AND Two (2) WIRE BRAIDED HOSE IN
04 - ¼”a, 06 - ⅜”, 08 - ½”,12 - ¾”, 1” - 16,.
FOR EXAMPLE, THE FOLLOWING SIZES AND THREAD TYPES ARE AVAILABLE
JIC FEMALE AND MALE HOSE TAILS SIZES,
E04JF, E04JM,
E06JF, E06JM,
E08JF, E08JM,
E12JF, E12JM,
E16JF, E16JM.
BSP FEMALE AND MALE HOSE TAILS SIZES,
E04BF- E04BM,
E06BF, E06BM,
E08BF, E08BM,
E12BF, E12BM
E16BF, E16BM

ALL AVAILABLE WITH OUR OWN EngMatTec EMT Crimp on NO SKIVE Ferrules THAT ARE AVAILABLE IN THE FOLLOWING SIZES,
ENPR204 (¼”), ENPR206 (⅜”), ENPR208 (½”), ENPR212 (¾”) ENPR216 (1”).
Contact us for stock AND or Crimp Dimensions.
https://www.hydraulic.online/store/

RYCO BITELOK ONE-PIECE CRIMP NON-SKIVE T200 AND T700 hose tails.
EATON TTC / Z Series braided hose one-piece "bite the wire" style hose fittings.
Southcott Super Crimp S series stems with FNP-04, FNP-06, FNP-08, and FNP-12 ferrules as well as Ezi-Crimp Non-Skive One Piece Series E fittings.
CHILD FIELD FIT COUPLINGS Series RMB, RFB, RMJ, RFJ, with BN2-04, BN2-06, BN2-08, AND BN2-12 non-skive Bodies.
RYCO FIELD ATTACHABLE L SERIES L00-04, LOO-06, LOO-08, LOO-12 FERRULES, and 600 SERIES
INSERTS.
TAIPAN SERIES ONE-PIECE NON-SKIVE HOSE TAILS
K04JF, K06JF, K08JF, K12JF, AND K04JM, K06JM, K08JM, K12JM and
K04BF, K06BF, K08BF, K12BF, AND K04BM, K06BM, K08BM, K12BM or
TAIPAN Field Attachable D04, D06, D08, D12 Tails and D2-04, D2-06 D2-08, AND D2-12 Bodies.

If you wish to buy more than one item, please send us a message for combined shipping.

Please send us a message with any questions you may have.
Tax invoices are supplied with every purchase
Messages will be answered within normal business hours (ie: 8.30 am - 5.00 pm M-F)
