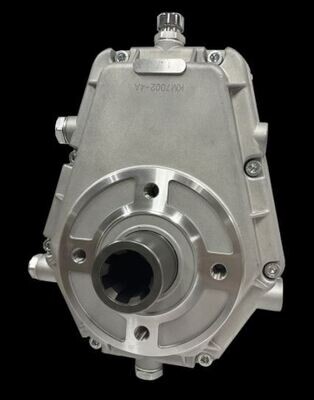

Hydraulic 6000 Series Pto Speed Increase Gearbox Only, No Pump

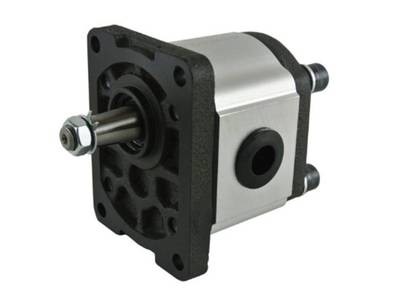

This Brand new Italian-made P.T.O gearbox is ready for your own group 2 DIN mt pump to be fitted. We also have a listing with several pump sizes as a package. Used to power hydraulic Auger, front-end loaders, mowers, rotary sweepers, etc.
These aluminium gearbox housings and hardened steel internal gears are used mainly for connecting hydraulic pumps to the power take-offs of agricultural tractors.

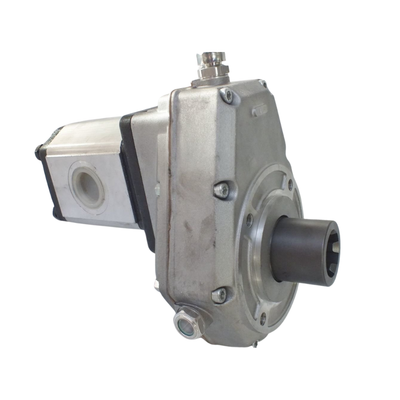

The standardised PTO output of either 540 or 1,000 rpm, is, in this way, increased to optimum operating speeds for the hydraulic pumps. This gearbox and pump offer either direct or remote mounting options to the tractor P.T.O to provide independent hydraulic service.

Watch this video of how a Speed Increase PTO was adapted to the rear of a Tractor's PTO to run a larger flow Gear pump to power a hydraulic motor for a Harvester

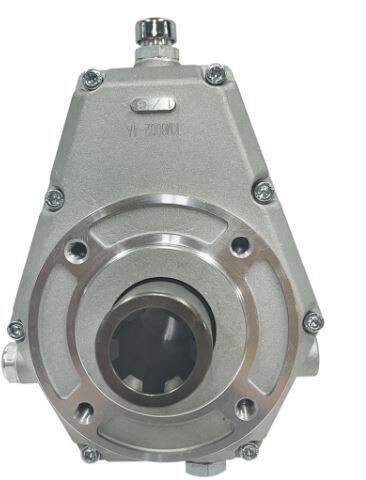

This has a choice of either Male or Female 1-3/8" 6 splined shafts generic to most PTO output shafts.

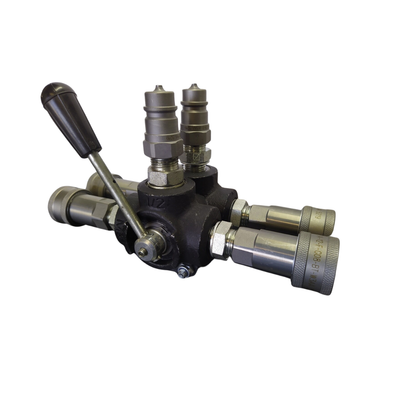

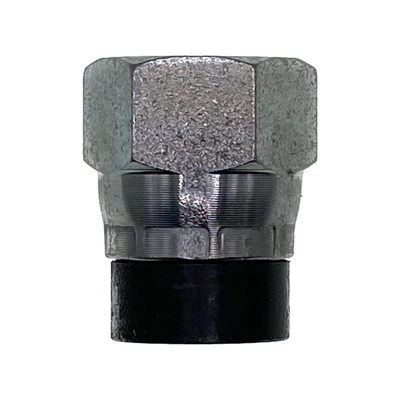

Please refer to our chart to correctly size up pumps & feel free to message or call with any queries. We also supply re-usable field-fit hydraulic hose fittings hose and & any hydraulic valves or adaptors you require.

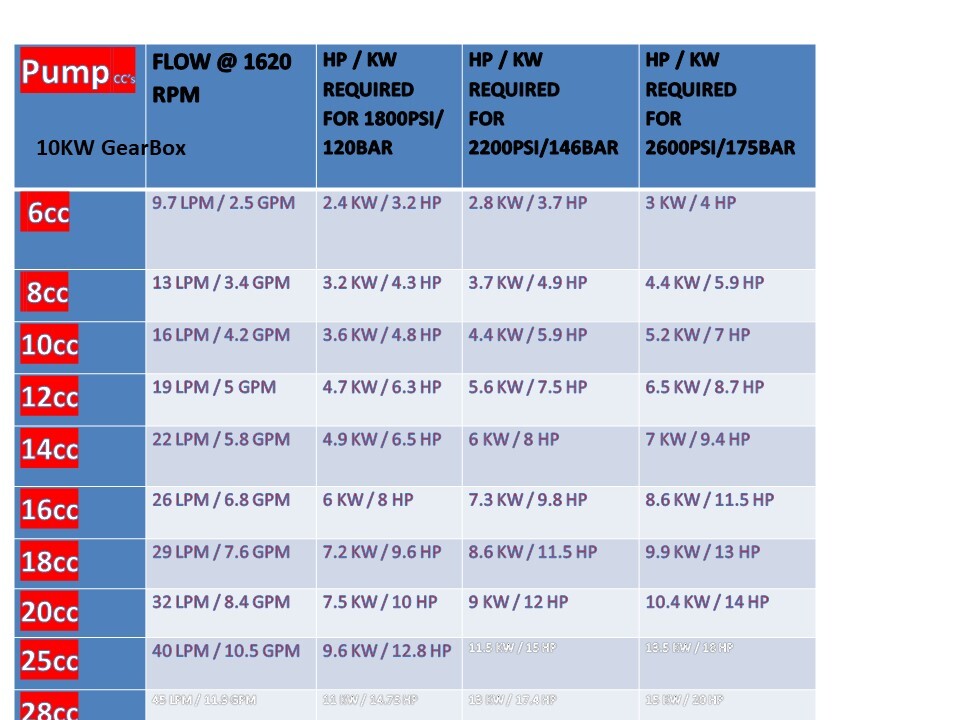

Please note. This size Gearbox is rated to 10KW power internally, you must look at Flow/Psi/KW chart to ensure you do not over-spec this set-up.
40 Lpm @ 1800 psi is the most flow, the pressure this size gearbox can reliably sustain. Warranty is void if run at over 1800Psi with a pump larger than 20cc. If more flow is required, please check our next size-up gearbox
please note All Hydraulic pumps typically have a 20% efficiency loss factor. The numbers supplied below are gross figures, please take 20% for the correct LPM
90W Gearbox OIL; Please use Universal Tractor Transmission Oil. ie. Mobil Fluid 422 (non-foaming agent)
Please call (07) 5563 1982, or send us a question for different pump configurations and costings.
or email us at sales@hydraulic.online

RE$15-02-2024

Express shipping Australia-wide. We dispatch daily to New South Wales, Victoria, Queensland, Western Australia, South Australia, Tasmania, the Australian Capital Territory and the Northern Territory – Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin, plus regional and remote sites.

Specifications — 600 Series

Male, female, or female with lock?

Male takes a female driveshaft yoke. Female slips over a male tractor stub. Female with lock adds a push-collar quick release, so the shaft can be pulled off by hand without tools — worth it on an implement that comes on and off regularly.

Input is 1-3/8" 6-tooth on every box in this range, the standard tractor PTO spline.

The coupling is a separate part

Gearboxes do not include the pump coupling. Timalco supply them separately and it is the single most commonly missed item on a PTO order — the box arrives and the pump will not mount. Add the right one for your pump:

Oil: SAE 90 gear oil or Universal Tractor Transmission Oil. Rotation: clockwise viewed from the input shaft — running one backwards will destroy it.

Updated 4/8/2026 — full Timalco variant range added (SAE A and SAE B mounts), coupling guidance and specifications from the 2025 catalogue.
