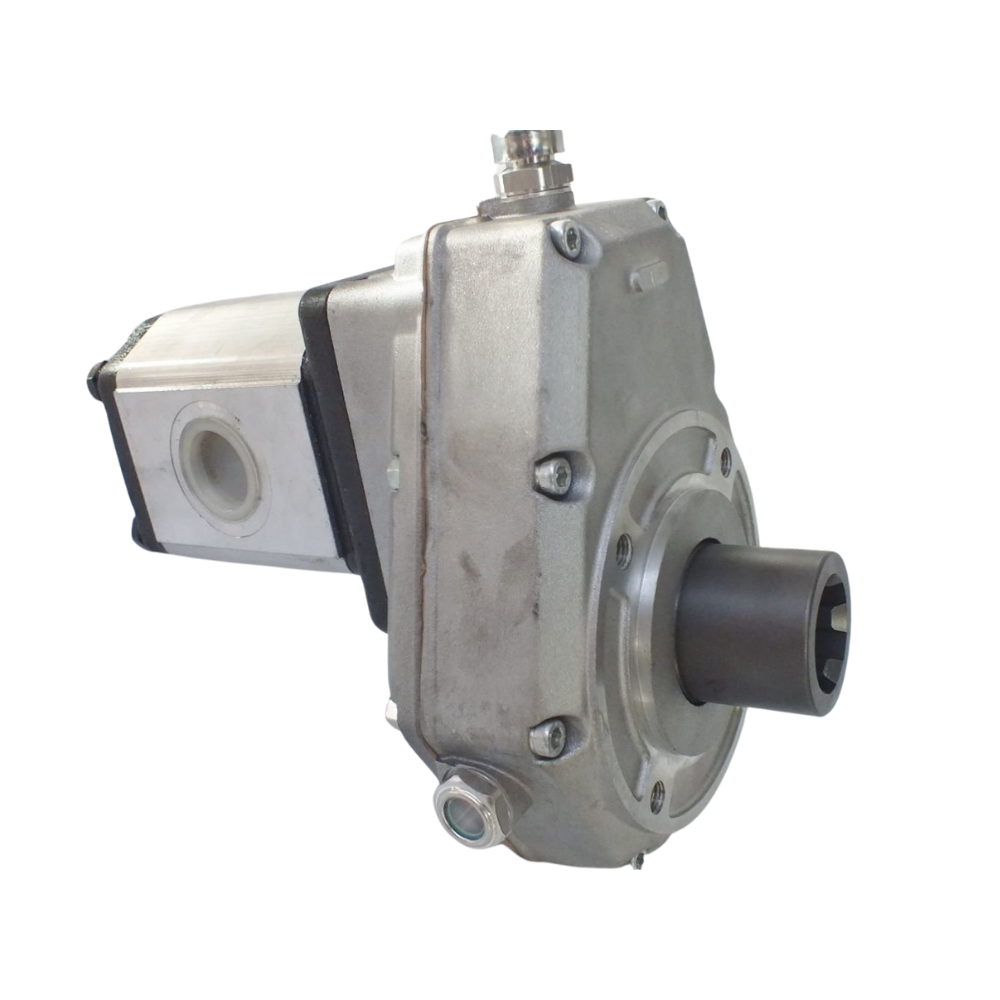

7100 series Step up (speed increase) Gearbox with Group 2 Gear Pump
This brand new Italian-made P.T.O (Power Take Of) comprises
a 3:1 speed increase Gearbox and Hydraulic Gear Pump.

It is ideal for adding Hydraulic power to tractors and landscaping equipment
that are not already equipped with hydraulic circuits.
Used to power hydraulic Auger, front-end loaders, mowers, rotary sweepers,
Post Hole Borers, and Post Drivers.

These gearboxes are used mainly for connecting to the power output shaft at the rear
of the tractor to drive hydraulic pumps to generate fluid power.

The standardized tractor PTO output of either 540 and with this step-up gearbox with a ratio of 3:1 means that if your PTO is spinning at 540 RPM, it will step up the speed to 1620 RPM so speed to the pump is increased to optimum operating speeds for the hydraulic Gear pumps.

This gearbox and pump offer either direct or remote mounting options
to the tractor P.T.O to provide independent hydraulic service.

This gearbox is rated to provide up to 20 KW or 27 HP to the hydraulic gear pump.
This figure is nothing to do with your tractor's engine horsepower.

We also have a gearbox that will produce up to
37 KW / 50 Hp if you require very high flows/pressures.

This comes with standard Female 1-3/8" 6 splined shafts generic to most PTO output shafts.
(please see photos) If your shaft has ' grooves', there is an Optional Shaft
"Quick release" coupler available for an extra $40.

Please see the last photo which shows the 'groove' in the PTO shaft which fits the
'Quick' release. Also available at no extra cost is a Male shaft.

There is also the option of a few other types of couplers so
feel free to ask or send photos for confirmation.

This step-up gearbox has a ratio of 3:1 which means,
if your PTO is spinning at 540 RPM, it will step up the speed to 1620 RPM.
There are a variety of pump sizes to choose from, please see the options next to the photos.
All are the same price.|The main considerations in choosing the correct size pump
for your application, is the amount of flow required & the pressure required.
As the need for higher pressure (PSI) is increased,
the power required to produce this pressure rises.

It is easy to pump fluid at a high flow rate if low psi pressure is required,
but it takes a lot of HP to pump high flow rates at a high PSI.
Please refer to our chart below, & feel free to message or call with any queries.

We also supply re-usable field fit hose tails & any hydraulic valves or adaptors you require.
Please take careful note of the flow & pressures in the chart below.
This unit is rated for up to 10Kw hydraulic power only.
If you require more flow & higher PSI, please see our other size
gearboxes/pumps in the agricultural category of our store.
All Hydraulic pumps typically have a 20% efficiency loss factor.
The numbers supplied below are gross figures, please take 20% for the correct LPM
Oil; Please use Universal Tractor Transmission Oil. ie. Mobil Fluid 422 (non-foaming agent)
