6 PORT DIVERTER SELECTOR VALVE is The best and most cost effective way to add another function to your Hydraulic Machine.

With 3/4" BSPP Ports, working pressure to 250 Bar / (3675 psi) and flows up to 80 Lpm

the Case drain must be used to return oil to tank on application with pressures above 150 bar 2250 psi

Take one Existing Hydraulic Function and use this diverter valve to turn it into two separate and independent fuctions.

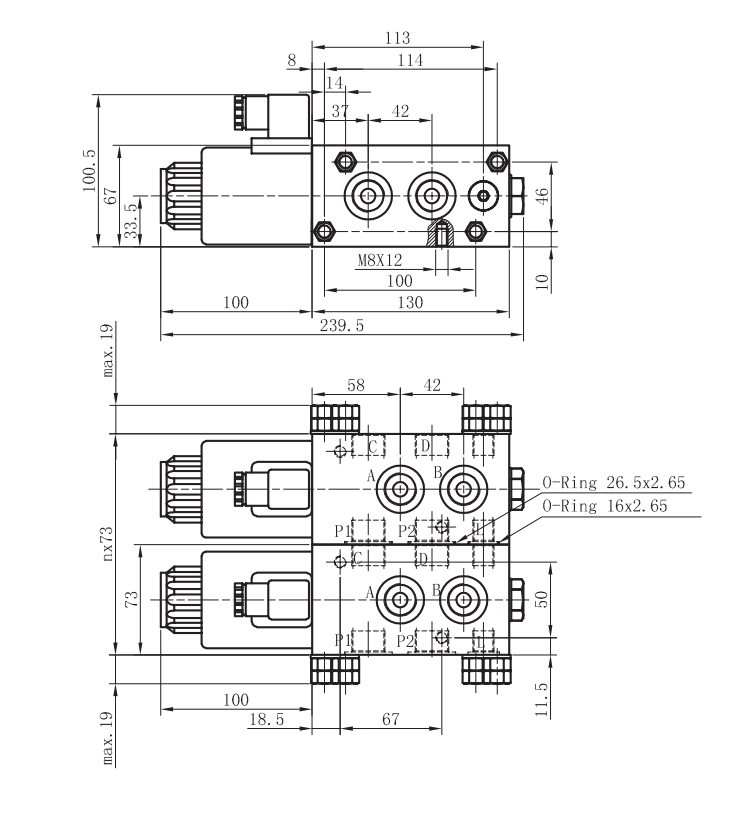

These diverter valves are also designed to be Sandwiched together to produce even more additional ports to operate additional functions see images above.

For the Best Value manually actuated 6 Port diverter selector valve Click Here

For a Single Spool or Function eg single acting cylinders click here

For a Cheaper 6 port diverter with manual actuation lever (no electrics) Click Here

For a smaller valve with lower flows please click here.

The Videos below explains the principal of a 6 port Diverter Valve: that is manually actuated.

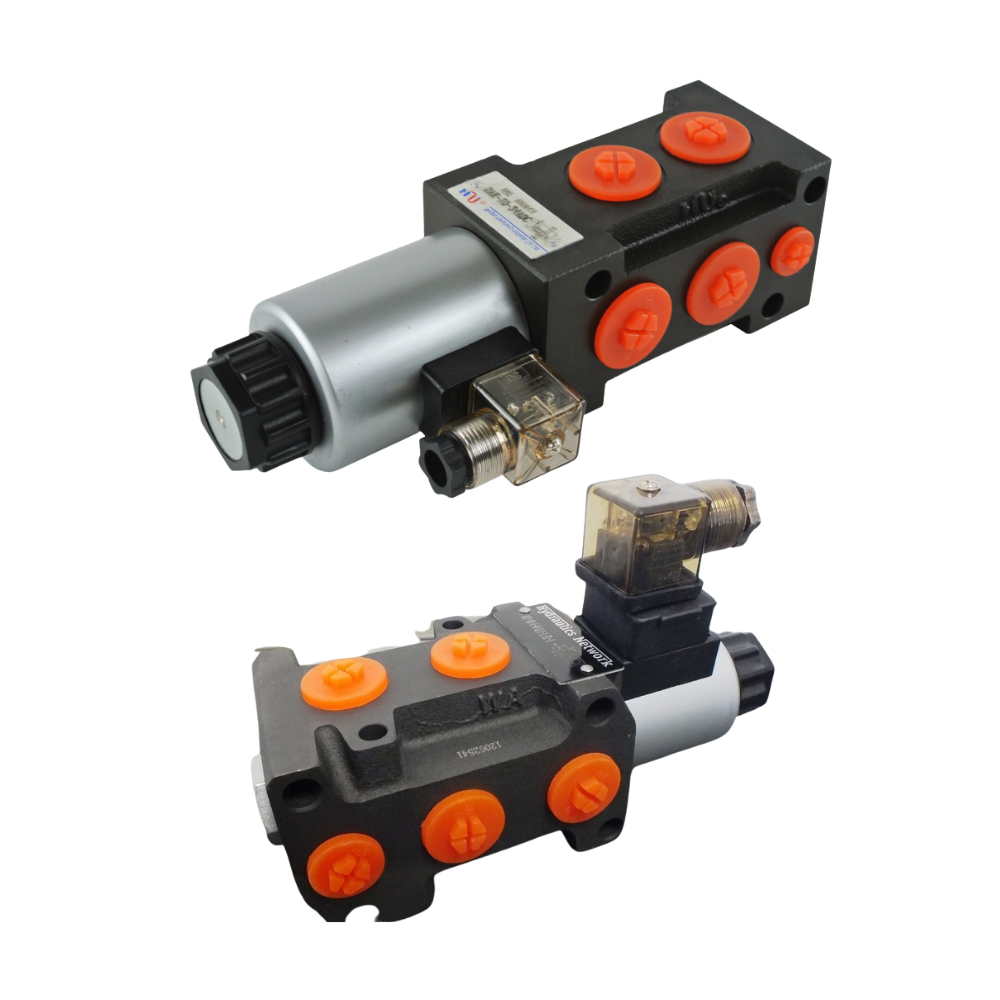

This listing is for an electrically actuated valve. Same Principal Just more User friendly.

These are quality made Valves made in Italy or Ningbo PRC .
This unit has 3/4" BSPP Ports and is capable of flowing up to 80 l/m at pressures up to 250 bar / 3600 psi
Closed centre on switch over only.

A 1/4" BSPP port is included to provide a case drain as this will be required for pressures over 150 bar /2250 psi.

The case drain can be a 1/4" low-pressure hose connected to flow back into a tank line.
Case drains are required to release pressure on the crossover of the solenoid valve.

Specifications

• 3/4″ BSPP Ports,
• Case drain 1/4″ BSPP
• Maximum pressure 250 bar
• Maximum flow 80 l/m
• Closed centres on switch over
• Voltage Options 12 and 24 Volt DC
