Add an extra set of remotes on the back of tractors for easy cross over from one hydraulic circuit to another.

How this works. If you have a tractor with only one set of remotes, and you are towing your trailer / or attachment that has 2 separate functions.

With the 6 port diverter fitted to one remote set you now have a two separate remote outlets.

You can only run one function or the other at a time. With lever in one direction, oil flow will run to your 'default' function.

Turn the lever on diverter, & your second function will flow.

The valve also two "Centre" options on change over Open and Closed Center.

Open Centre will allow the Oil to flow between all ports on change over and is an option when oil supply is continuous and uninterrupted.

Closed Center is safer if there is a load being held up (such as a cylinder holding up a bale of hay). However the use of a closed centre valve will mean that oil supply to the valve must be turned off.

The diverter valve has three pairs of connections.

The first is for the tractor remote feed.

The other two set of couplings is the feed for the equipment or attachments towed behind your tractor.

The quick couplers supplied are Australia's most common Agricultural Poppet style coupler. ISO 7241-1 “A” series.

What you get in this package;

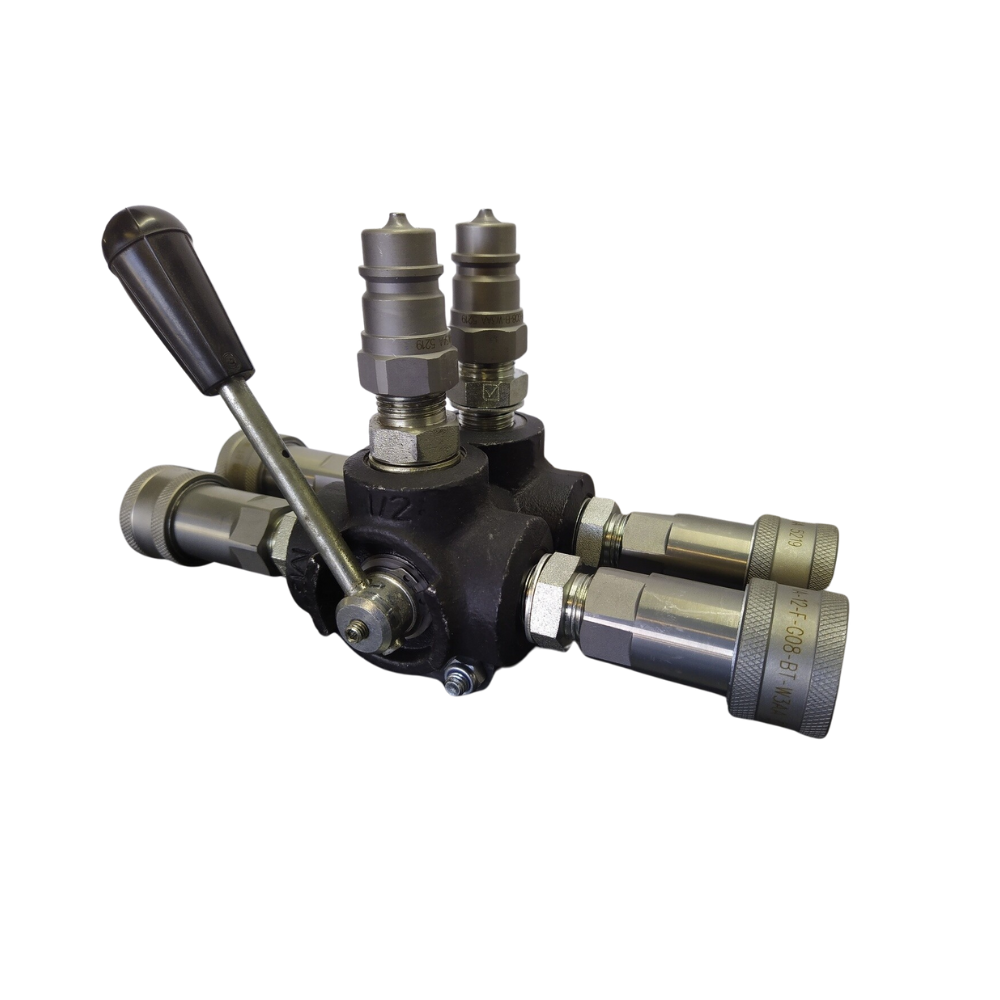

Manually actuated 90 Lt/min 6 port diverter valve, 2 male & 4 female poppet couplers with adapters.

There is the option of supplying swaged two wire hose assemblies to enable mounting away from your remotes.

Hose length is 1.5 metres with male thread on one end and female thread on the other.

We can custom make hoses to any length required. Please call 07 5563 1982

Middle ports are pressure in from tractor, side ports are your two functions.

We also sell 90° Male female adapters if you wish to orientate your poppets differently. Buy 1/2" size below, & add to cart.

https://www.hydraulic.online/store/Hydraulic-BSP-9...

Buy with Confidence from a long established Hydraulic Service Center get a

12 month warranty and an ' Australian Tax Invoice.

We carry a full range of hydraulic fittings, adaptors & hosing. Please call us on 07 55631982 or email us at sales@hydraulic.online with any questions

Call us on 0755 631982 with any questions you may have or for a different filter port size or micron .
