Multi Spiral Hydraulic Hose 4,000 PSI SAE 100R12 3/4 to 1-1/2" Bore 10 M coils

Name: Taipan Multispiral Hose 4,000 PSI 3/4 - 1-1/2" Bore 10 M coil
Brand: Taipan
SKU: H-R12-SF-10
Price: 496.5 AUD
Availability: InStock

Store/High Pressure Hose for Hydraulics 1, 2, 4 or 6 wire/Multi Spiral hose 4000 to 6000 psi SAE 100 R12 R15 4SH 4SP

SKU H-R12-12-SF-10

AU$496.50

🔥 EOFY SALE!

was ~~AU$806.00~~ Save 38%

Size

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Multi Spiral Hydraulic Hose 4,000 PSI SAE 100R12 3/4 to 1-1/2" Bore 10 M coils

Store/High Pressure Hose for Hydraulics 1, 2, 4 or 6 wire/Multi Spiral hose 4000 to 6000 psi SAE 100 R12 R15 4SH 4SP

Product Details

Brand: Taipan

Weight: 20.00 kg

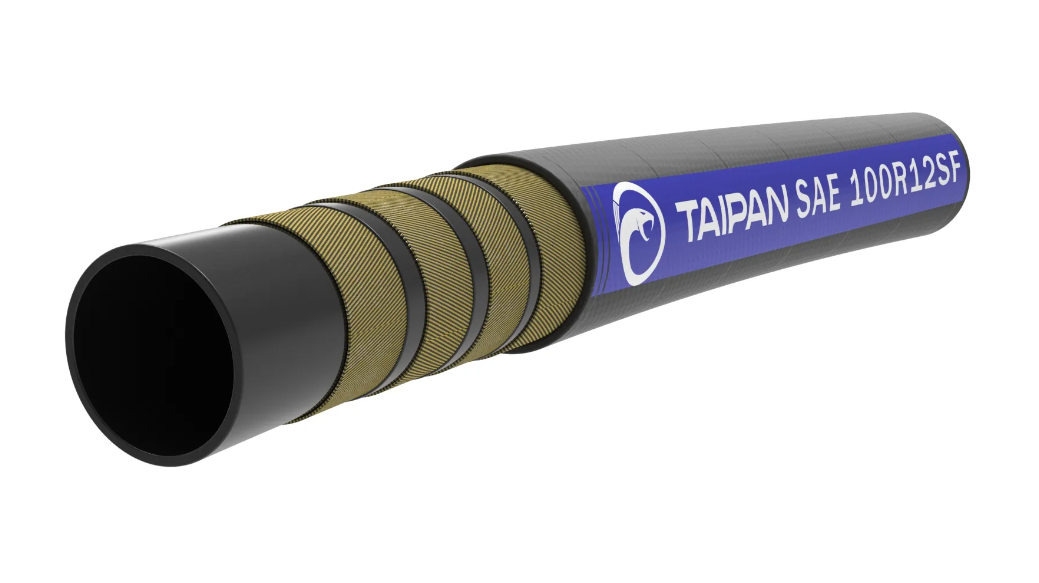

10 Metre coils of "TAIPAN" brand SAE 100R12 SF (Super Flex) 4,000 psi Isobaric Multi Spiral Four Wire Hydraulic Hose.
Available in the following Sizes 3/4", 1", 1-1/4", 1-1/2" Manufactured with 4 layers of Spirally would High tensile steel wire.

Manufactured to meet or exceed SAE 100R12 Specifications

Description

Application Heavy duty impulsive high pressure applications like excavators, dozers, dumpers, cranes, compactors, rock breakers and hydraulic drill rigs and other construction equipment. Suitable for petroleum based hydraulic fluids, synthetic esters, biodegradable hydraulic fluids, water-glycol based fluids and air. Special Features:

Pressure tested and Qualified to meet 1 million impulse cycles at 130% max pressure and max temperature,
More than twice that required by EN 856 R12/ISO 3862-1. Exceeds relevant standard pressure rating from -20 to-32,

Excellent flexibility for compact hydraulic circuits. Good weather and ozone resistance.

Reinforcement 4 High tensile steel spirals, wrapped in synthetic rubber with an abrasion & weather resistant Outer cover.

Temperature Range -40°C to + 121°C (intermittent to 125°c)

Specification EN 856 R 12

Buy a 10 meter length or more.

Discounts available on longer lengths.

Please contact us with length required plus a postcode for a freight quote.

Need High pressure Crimp on Hydraulic Hose Fittings or a custom Hose assembly made for you.

Click here for High pressure Crimp on Fittings

Click Here for Custom High pressure Hose Assemblies

Need other hose length or size? field fit reusable hose fittings and adaptors,

please see our other listings or just call us 075563 1982 or 1300 1 HOSES.

Email us at sales@mhfgc.com.au for more information

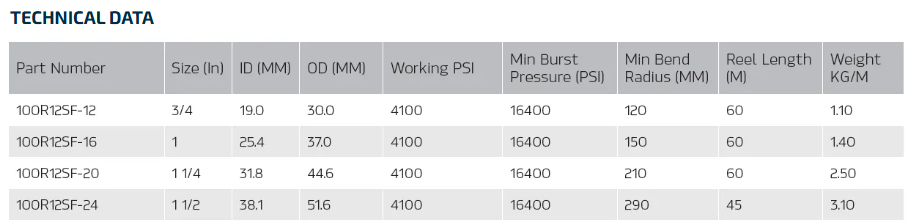

Weight = 1.1 to 3.5 kg/m

We also offer ‘Depot to Depot’ freight as a cheaper alternative for larger items. Please call or email for this freight option
