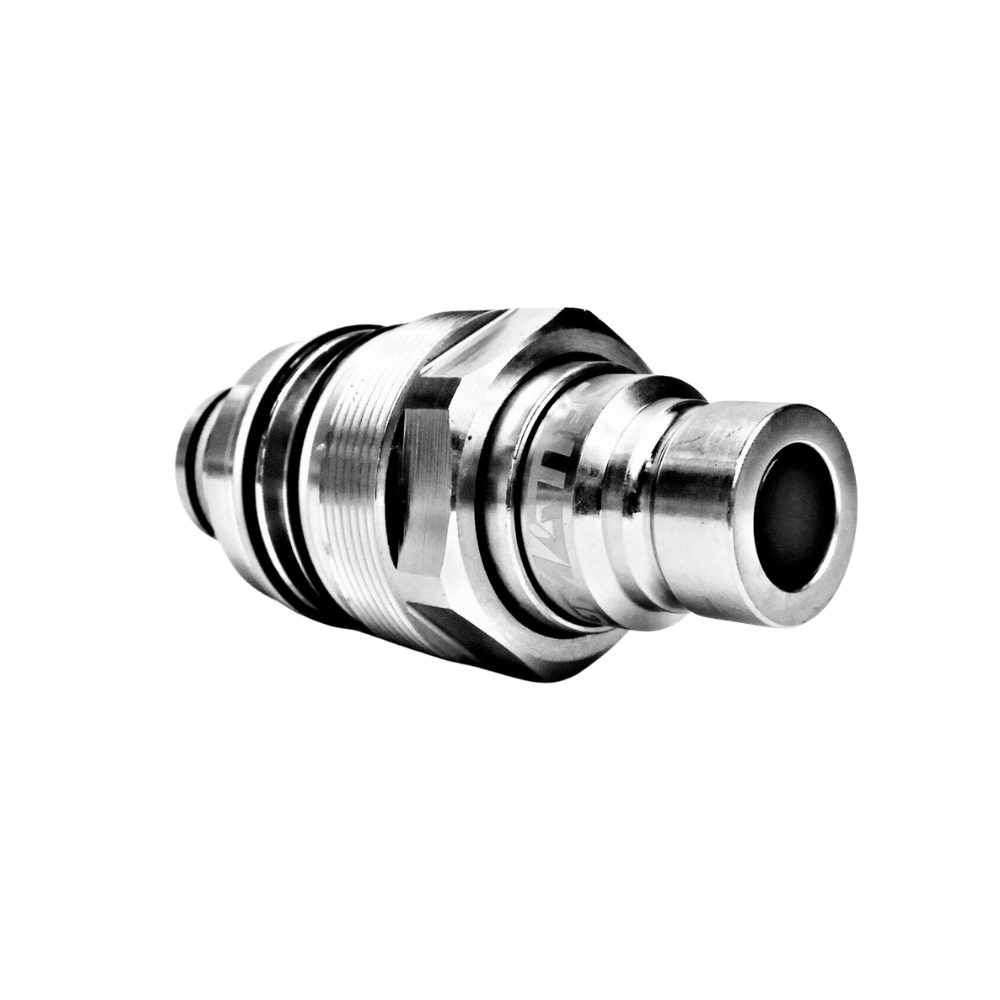

4FFI Old Style Bobcat Male Flat-Face Coupler designed to screw into the cast Steel Manifold mounted on the booms of Bobcat Skid Steers and Positracks.

This Old style of Male Manifold Coupler is a direct replacement cartridge for Older Bobcat Machinery Fitted with the
“OLD STYLE 4BD4FI Manifold. Bobcat Part number 6679837

This is designed to screw into the Old Style manifold mounted to the arm or boom that lifts and supports the bucket.
Fully interchangeable and connectable with all other flat face couplers manufactured to ISO 16028

This range of couplers was designed to allow for the quick “dry break” changeover of hydraulic attachments such as Buckets, Augers, Trenchers, Grapples, Brooms, Slashers, Sweepers, and even

If you have a Bobcat Skid Steer Loader, Track Loader, Compact loader, or Excavator, then chances are your machine is fitted with these couplers and someday they will require replacement.

If your Damage is Greater: and you need a completely new Manifold, Please click below
Replacement Bobcat 3 Port Manifold with Couplers - Complete Assembly

• Bobcat Part Number 6679837
• Faster, Part Number 4FFI-12

Please note this coupler cartridge is for the “OLD STYLE” 4BD4FI Manifold

These couplers have an external Metric Thread measuring Ø46mm with a 1.5 mm pitch (approx. Ø 1-13/16” with 17 T.P.I )

The male end has a diameter of 24.5 mm

This type of manifold Coupling can be identified by its Three (3) Sets of external Black O Rings with 3 White Backing Rings.

(The new Style coupler has an external Metric Thread measuring Ø 48mm with a 1.5 mm pitch (approx. Ø 1-7/8” with 17 T.P.I )
the new style only has two (2) O Rings (one Black and one Blue) and No White Backing rings.

• Maximum Working Pressure 350 Bar (5145 PSI)
• Nominal Size, Dash 08, 12.5 mm, ½”
• Rated Flow Rate up to 110 Lt / Min (27.5 Gallons / Min)
• Virtually Dry Break on Disconnect (less than 0.01ml)
• Connect under pressure? Yes
• Force required to connect 210 N (21 KG) (47 pounds)
• Minimum Burst pressure 1400 Bar (20500 PSI)
• Operating temperature -40 Degrees Celsius to +105 Degrees Celsius
• The female coupler has a lockable collar to prevent accidental disconnection

• Bobcat Skid Steer Models 753, 763, 773 863, 864, 883 A220.A300.A770.
• S130 through to the S850 model
• Bobcat Track Drive Models 140 through to the T870.model
• Bobcat Telescopic Loader, Reach Truck Models TL360, TL470, TL470HF.
• Bobcat Tool Cat Models 5600, 5610.

DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI , Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49
