STAUFF Dual Gauge Digital Pressure Test Kit SMB-DIGI - Two Digital Gauges 16 to 600 bar - USB Data Logger Options
SKU SMB-DIGI-20-B0016/B0100-B
AU$1,665.10
Gauge pair
Please choose
Add a CAT excavator test adaptor kit
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
STAUFF Dual Gauge Digital Pressure Test Kit SMB-DIGI - Two Digital Gauges 16 to 600 bar - USB Data Logger Options
Product Details
Brand: STAUFF
Weight: 4.00 kg
STAUFF Dual Gauge Digital Pressure Test Kit SMB-DIGI – Two Digital Gauges 16 to 600 bar – USB Data Logger Options
Two German-made STAUFF SPG-DIGI digital gauges in one foam-lined case, with the 2 metre 600 bar test hose and Test 20 adaptors to run both at once – pump pressure on one, LS or charge pressure on the other. USB versions log every reading to internal memory and hand you a .csv file over the supplied cable, no software needed. Pick your gauge pair below.
Ways to buy this kit:
- Any of the factory dual-gauge combinations below, delivered to order.
- USB data logger versions for commissioning reports and warranty evidence.
- Only need one gauge? The single-gauge kit is stocked in Australia – green button below.
Pick your gauge pair
| Gauge pair | SKU |
|---|---|
| 16 bar + 100 bar | SMB-DIGI-20-B0016/B0100-B |
| 16 bar + 400 bar | SMB-DIGI-20-B0016/B0400-B |
| 16 bar + 600 bar | SMB-DIGI-20-B0016/B0600-B |
| 100 bar + 400 bar | SMB-DIGI-20-B0100/B0400-B |
| 100 bar + 600 bar | SMB-DIGI-20-B0100/B0600-B |
| 400 bar + 400 bar | SMB-DIGI-20-B0400/B0400-B |
| 400 bar + 600 bar | SMB-DIGI-20-B0400/B0600-B |
| 600 bar + 600 bar | SMB-DIGI-20-B0600/B0600-B |
| 100 bar + 600 bar USB data logger | SMB-DIGI-20-B0100/B0600USB-B |
| 400 bar + 600 bar USB data logger | SMB-DIGI-20-B0400/B0600USB-B |
| 600 bar + 600 bar USB data logger | SMB-DIGI-20-B0600/B0600USB-B |
| 100 bar USB + 400 bar USB twin data loggers | SMB-DIGI-20-B0100USB/B0400USB-B |

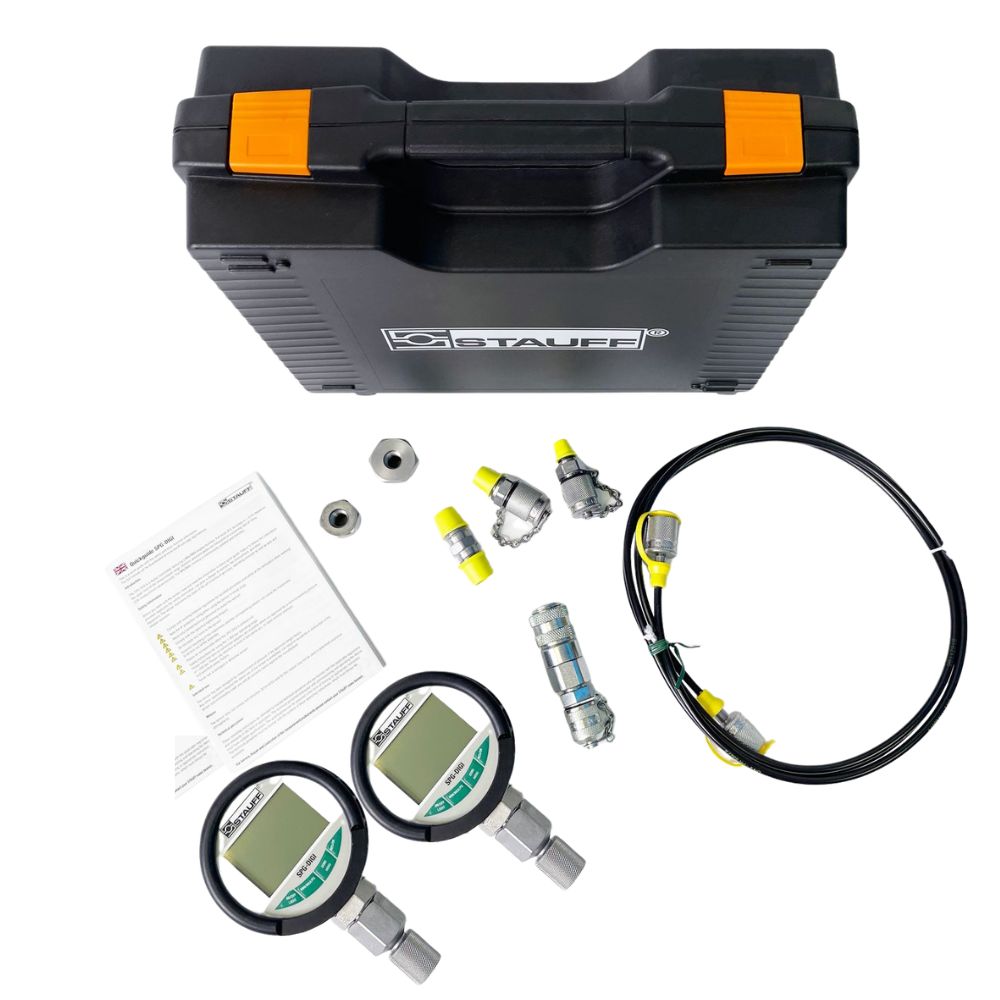

What is in each kit
| Component | Code | Qty |
|---|---|---|
| STAUFF SPG-DIGI digital gauges (your chosen pair; USB versions where selected) | SPG-DIGI(-USB)-B0xxx-B | 2 |
| Test hose 2 m, M16x2 Test 20, 600 bar | SMS-20-2000-B-W3 | 1 |
| Adaptor G1/4 to M16x2 | SDA-20-G1/4-W3 | 1 |
| Hose connector | SSV-20-W3 | 1 |
| Test coupling G1/4 | SMK-20-G1/4-B-C-W3 | 1 |
| Foam-lined carry case | – | 1 |
Specifications
| Parameter | Value |
|---|---|
| Brand / Origin | STAUFF – designed and made in Germany |
| Gauges | 2 x SPG-DIGI digital, 80 mm body |
| Accuracy | 0.25% FS (standard) / 0.5% FS (USB logger versions) |
| Data logging (USB versions) | Internal memory, exports .csv over supplied USB cable |
| Functions | Current, MIN and MAX capture, backlight |
| Connection | G1/4 (1/4" BSPP) via Test 20 M16x2 system |
| Compatibility | Test 20 / Minimess 1620 / SMK20 test points |
How to choose
- Pressure-and-LS diagnosis on load sensing machines: take 600 + 400 or 600 + 600.
- Transmission and hydrostatic work: 600 + 100 covers loop pressure and charge in one plug-in.
- Choose a USB version when you need a time-stamped log – commissioning sign-offs, warranty disputes, intermittent faults overnight.
- Another combination or a calibration certificate on a dual kit? Call us – the full factory range is available to order.
Technicians Advice
On a load sensing pump the number that matters is the margin – pump outlet minus LS signal – and you cannot read it accurately by swapping one gauge between two points, because the reading changes with load while you swap. Two gauges side by side show the margin live: if standby is right but margin collapses under load, chase the LS line and shuttle checks, not the pump. For overnight intermittents, plumb a USB logger onto the suspect circuit, let the machine work a full shift, and read the csv in the morning – the fault leaves fingerprints even when nobody is watching.
