Portable Oil Filtration Oil Transfer Cart 240 Volt Ac Flows 24 Lt/min

Name: Portable Hydraulic Oil Filtration and Transfer Unit 24Lt/min
Brand: MP Filtri Italy
SKU: HNC11/20/M90/10
Price: 3149.3 AUD
Availability: InStock

Store/Sales and or Clearance Items

SKU HNC11/20/M90/10

AU$3,149.30

On Sale

was ~~AU$4,894.00~~ Save 36%

Add Optional Inline Contamination Monitor

No Inline Contamination Monitor

Inline Contamination Monitor (+AU$7,290.00)

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Portable Oil Filtration Oil Transfer Cart 240 Volt Ac Flows 24 Lt/min

Store/Sales and or Clearance Items

Product Details

Brand: MP Filtri Italy

Weight: 88.00 kg

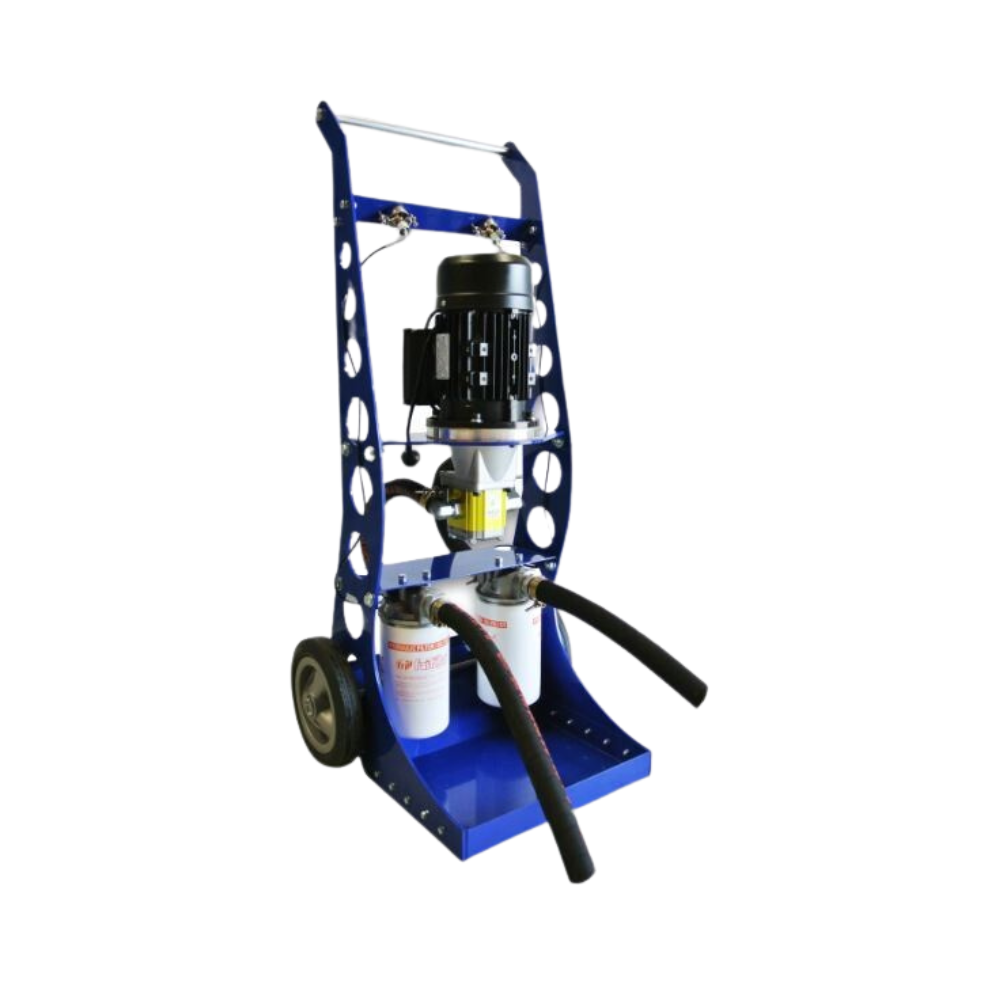

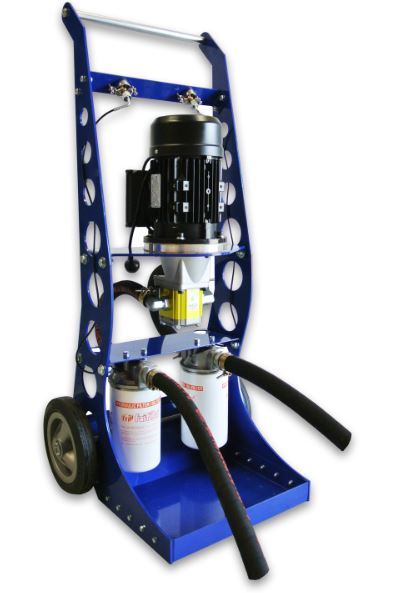

Portable Hydraulic or Engine Oil Filtration and or Oil Transfer Cart, Flows 24 Lt/min required 240 Volt AC Single Phase with Optional Contamination Monitor made in Italy.

This is a high quality 240 Volt 1.1 kW Portable oil filtration / transfer cart. One hose is suction has 1-1/4" ID and is 2.2 metres long, it goes to a suction filter, the oulet then goes through a return filter that is 10 micron and out to a 2.2 metre long 1" hose.

There are easy to read clog gauges and replacement filters are very well priced & always available.
This is a Premium quality unit with an Italian made pump.

Also available as an Option is a In-line Contamination Monitor.

Please specs at the Lower Half of this Listing.

USES:

Filtering new fluid before putting into service
Transferring fluid from drums or storage tanks to system reservoirs
Conditioning fluid that is already in use
Complimenting existing system filtration
For use with fluids such as hydraulic, gear and lube oils

Specifications:

Inlet Filter: CS15000M90A – 90 micron nominal, 5 psi bypass (includes visual clogging gauge)
Outlet Filter: CS15000P10A – 10 micron nominal, 25 psi bypass (includes visual clogging gauge)
Electric Motor: 1.1kw, 1440 rpm, on/off switch
Gear Pump: Vivoil 16.8cc Group 2
Output Flow: 24 lpm, based on HYD 46 Oil @ 20 c
Inlet Hose: 1.1/4″ diameter, 2.2mtr length
Outlet Hose: 1″ diameter, 2.2mtr length
Weight of unit is 65KG.

Optional: ICM In-line Contamination Monitor: Model Designation - ICM-W-M-K-U-G1-2.0

From MP Filtri: in Italy, this New Series ICM-W-M-K-U-G1-2.0 Model is supplied with the following

Moisture and temperature sensor
Suitable for Mineral Oils
With A Keypad Display
With Test record transfer (direct to USB stick) plus relays/external alarm outputs
Complete with M16 x 2 pressure test point connections fitted
Can be used as a standalone product or can be controlled by external PC, PLC or the ICM - RDU
Remote Display Unit 3m control cable supplied as standard.

Technical Data: For In-line Contamination Monitor

Technology	LED Based Light Extinction Automatic Optical Contamination Monitor
Particle Sizing	>4,6,14,21,25,38,50,70 μm(c) to ISO 4406 1999 Standard
Analysis range	ISO 4406: 1999 Code 0 to 25, NAS 1638 Class 00 to 12, AS4059 Rev.E. Table 1&2 Sizes A-F: 000 (Lower Limits are Test Time dependent)
Accuracy	± ½ code for 4,6,14um(c) ± 1 code for larger sizes
Calibration	Each unit individually calibrated with ISO Medium Test Dust (MTD) based on ISO 11171, on equipment certified by I.F.T.S. ISO 11943
Operating Flow Rate	20 - 400 ml/minute
Viscosity range	≤ 1000 cSt
Fluid temperature	From -25°C to +80°C
Pressure Max	420 Bar
Test Time	Adjustable 10 - 3600 seconds. Factory set to 120 seconds. Start delay & programmable test intervals available as standard.
Moisture Sensing	% RH (Relative Humidity) ±3%
Temperature Measurement	±3°C
Flow rate measurement	Indicator only
Data Storage	4000 test
Communication options	RS485, RS232, MODBUS, CANBUS, 4-20mA time multiplex as standard
Ambient Temperature min/max	From -25°C to 80°C non K version - From -25°C to 55°C K version
Environmental Protection	IP 65/67 versatile IK04 Impact Protection
Weight	1.6 Kg
Electrical Supply	Voltage 9-36V DC
Power consumption	<2.2W
Outer Casing Finish	Polyurethane BS X34B. Colour BS381-638 (Dark Sea Grey) Approval: BS2X34A & BS2X34B,MM0114 & SP-J-513-083 T. II CI. A Performance: MIL-PRF-85285

Freight is to major cities. Ex Melbourne or Brisbane. Extra freight costs may apply to WA & rural areas. We will contact you to discuss if further freight charges are required.
