Hydraulic Suction Filter Unit 90 Micron Spin-On – Complete Head + Element, 35-300 LPM

Store/Hydraulic Oil Filters for Suction, Return, and Pressure Applications

Product Details

Brand: Hydraulic.online

Weight: 3.00 kg

Complete Hydraulic Suction Filter Units - 90 Micron Spin-On, 35 to 300 L/min

The right way to protect a pump: a 90-micron mesh spin-on with a gentle 5psi bypass, complete with alloy head, ready to fit between tank and pump. The coarse mesh grabs the big destructive particles without starving the inlet.

Every option here is a COMPLETE unit - head + 90 micron mesh element(s). Dual heads include TWO elements. Just pick your line size and flow.

The picture changes as you pick - it always shows exactly what arrives in the box. All prices include GST.

Sizes & Part Numbers - every combination

Size / Style	SKU

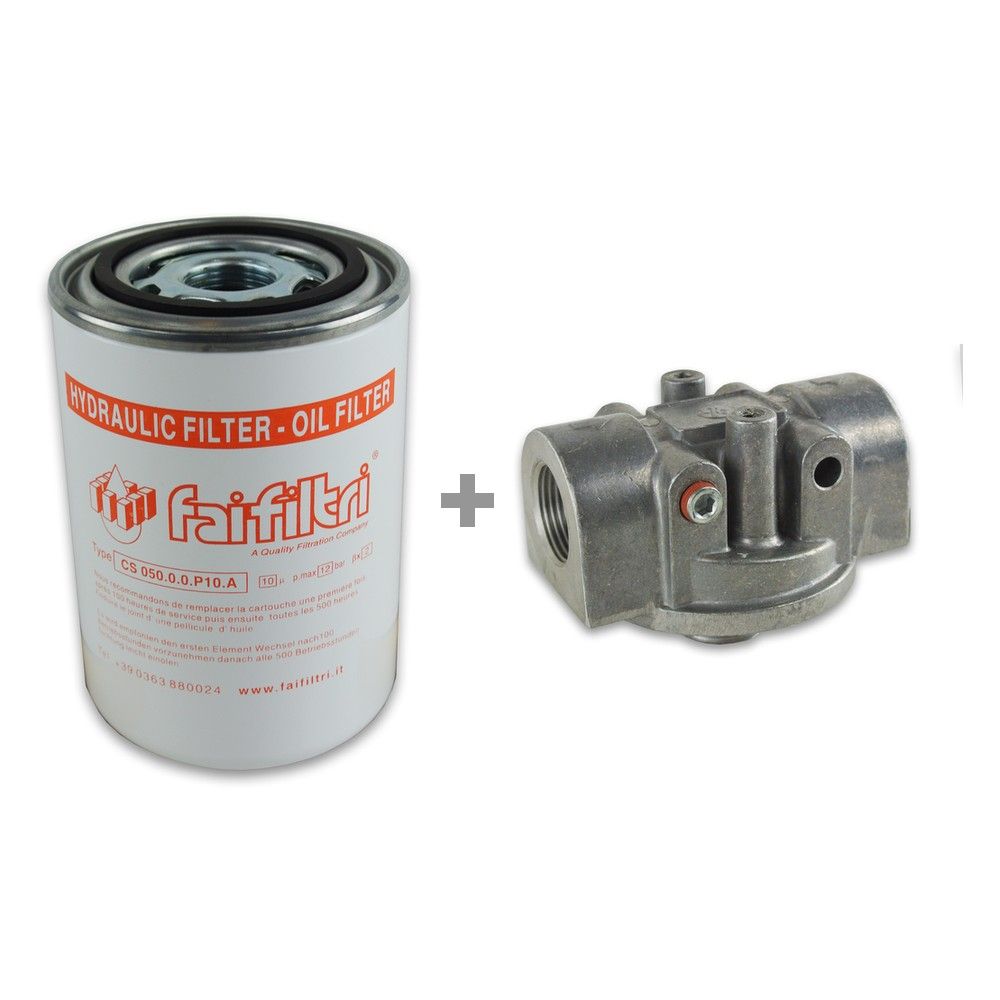

3/4" BSPP – 4" can – 35 LPM	KIT-F050S-M90-4
3/4" BSPP – 5" can – 100 LPM	KIT-F050S-M90-5
1-1/4" BSPP – 180mm can – 150 LPM	KIT-F100S-M90-S
1-1/4" BSPP – 226mm can – 150 LPM	KIT-F100S-M90-L
1-1/2" BSPP Dual Over-Under – 2x 180mm – 300 LPM	KIT-F200S-M90-S
1-1/2" BSPP Dual Over-Under – 2x 226mm – 300 LPM	KIT-F200S-M90-L
1-1/2" BSPP Dual Side-by-Side – 2x 180mm – 300 LPM	KIT-F300S-M90-S
1-1/2" BSPP Dual Side-by-Side – 2x 226mm – 300 LPM	KIT-F300S-M90-L

What is in each kit: KIT-F050S-M90-4-A = FCS050SAG1TS head + CS05000M90A element | KIT-F050S-M90-5-A = FCS050SAG1TS + CS07000M90A | KIT-F100S-M90-S = FCS100SAG1TS + CS10000M90A | KIT-F100S-M90-L = FCS100SAG1TS + CS15000M90A | KIT-F200S-M90-S = FCS200SAG1TS + 2x CS10000M90A | KIT-F200S-M90-L = FCS200SAG1TS + 2x CS15000M90A | KIT-F300S-M90-S = FCS300SAG1TS + 2x CS10000M90A | KIT-F300S-M90-L = FCS300SAG1TS + 2x CS15000M90A. Assembled by us before dispatch.

How to Choose

Match the port size to your suction line and make sure the flow rating covers your pump - an undersized suction filter cavitates the pump.
Never run fine (10/25 micron) media on suction - fine filtration belongs on the return line (see our return assemblies below).
Tight on budget? A simple in-tank strainer (link below) is the entry-level option for the same job.

Technicians Advice

Add the 0-30 Hg vacuum gauge from our indicators listing to the 1/8" BSPT port - when it creeps toward the red at operating temp, change the can. Keep the suction line short and one size up if possible; every elbow adds vacuum. On cold mornings let the machine idle a minute before loading - thick oil pulls the bypass open until it warms.

Official Datasheets

📄 Spin-On Suction Filters Spec Sheet

Complete Your Filtration Setup

⭐ Suction Vacuum Gauges ⚙ Return Assemblies 10µm ⚙ 3/4" Elements ⚙ 1-1/4" Elements ⚙ Suction Strainers

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Still not sure? Call us on 1300 146 737 or email sales@mhfgc.com.au with a photo of your setup and your pump flow - we will pick the right part for you.
