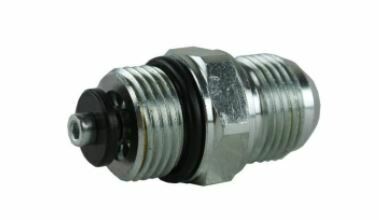

Hose Burst safety valves or velocity valves will hold a load and stop oil flow if the flow past the valve exeeds a certain rate.
By law, it is mandatory to have a steel on steel Safety valve installed on cylinders in case of a hose being ripped off, & the load dropping.
This is one burst valve that fits any of our 2" - 5" bore rams. You can simply screw it in, & then attach a 3/4" JIC female hose end.
3/4″ UNO – 3/4″ JICM ports
315 bar maximum pressure
50 lpm maximum flow
WARNING: Hydraulic cylinders without a hose burst valve, pilot-operated check valve or counterbalance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, or occupational health & safety rules.
