Hydraulic Return Filter Assembly 10 Micron Spin-On – Complete Head + Element, 35-300 LPM

Store/Hydraulic Oil Filters for Suction, Return, and Pressure Applications

Product Details

Brand: FAIFILTRI

Weight: 1.00 kg

Complete Hydraulic Return Filter Assemblies - 10 Micron Spin-On, 35 to 300 L/min

10-micron return filtration is the single best upgrade for system life - it polishes every drop of oil on its way back to the tank. Each option is a COMPLETE assembly: alloy head (25psi bypass, 1/8" gauge port) + 10 micron nominal element(s). Dual heads include TWO elements.

The picture changes as you pick - it always shows exactly what arrives in the box. All prices include GST.

Sizes & Part Numbers - every combination

Size / Style	SKU
3/4" BSPP – 4" can – 35 LPM	KIT-F050R-P10-4
3/4" BSPP – 5" can – 100 LPM	KIT-F050R-P10-5
1-1/4" BSPP – 180mm can – 75 LPM	KIT-F100R-P10-S
1-1/4" BSPP – 226mm can – 150 LPM	KIT-F100R-P10-L
1-1/2" BSPP Dual Over-Under – 2x 180mm – 150+ LPM	KIT-F200R-P10-S
1-1/2" BSPP Dual Over-Under – 2x 226mm – 300 LPM	KIT-F200R-P10-L
1-1/2" BSPP Dual Side-by-Side – 2x 180mm – 150+ LPM	KIT-F300R-P10-S
1-1/2" BSPP Dual Side-by-Side – 2x 226mm – 300 LPM	KIT-F300R-P10-L

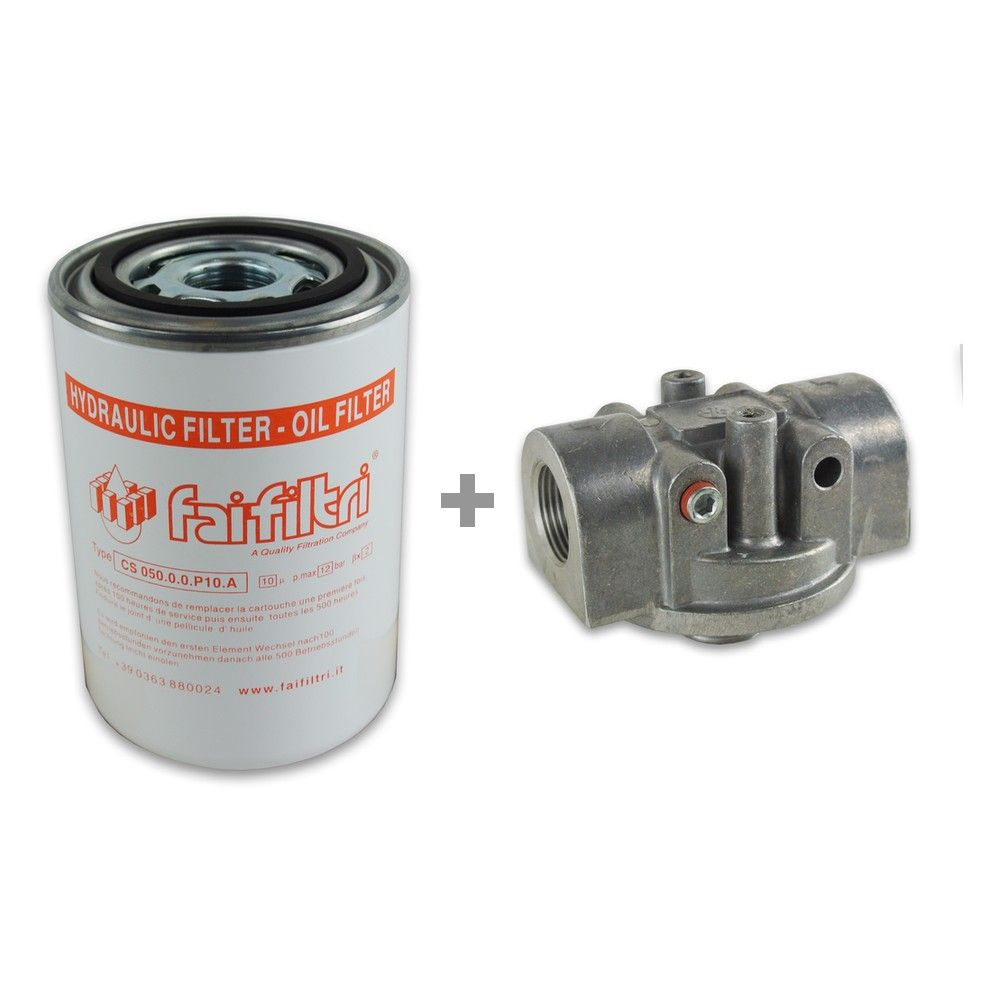

What is in each kit: KIT-F050R-P10-4-A = FCS050RAG1TR head + CS05000P10A element | KIT-F050R-P10-5-A = FCS050RAG1TR + CS07000P10A | KIT-F100R-P10-S = FCS100RAG1TR + CS10000P10A | KIT-F100R-P10-L = FCS100RAG1TR + CS15000P10A | KIT-F200R-P10-S = FCS200RAG1TR + 2x CS10000P10A | KIT-F200R-P10-L = FCS200RAG1TR + 2x CS15000P10A | KIT-F300R-P10-S = FCS300RAG1TR + 2x CS10000P10A | KIT-F300R-P10-L = FCS300RAG1TR + 2x CS15000P10A. Assembled by us before dispatch.

How to Choose

Match the port size to your return line and cover your full pump flow - returns can spike above pump flow when cylinders retract, so round UP.
Want a different micron (3/6 absolute, 25 nominal, mesh)? Use our full element listings - every micron/length/head combination is there.
If your machine only gets ONE filter, make it this one.

Technicians Advice

Fit the return manometer (0-2.8 bar) from our indicators listing - change the can when it reads red at operating temperature, not by the calendar. First change at 50 hours on a new or freshly repaired system (that is when assembly debris lets go), then every 500 hours. Hand-tighten plus 3/4 turn - a bar through the can wrecks the seal. On dual heads change both cans together.

Official Datasheets

📄 Spin-On Return Filters Spec Sheet
