Pair 1/2" BODY Flat Face Hydraulic Couplers UNO Threads FREE Caps

Name: Pair 1/2" BODY Flat Face Hydraulic Couplers UNO Threads
Brand: ENGMATTEC
SKU: QC-FF-UNF-FM-0800
Price: 89.85 AUD
Availability: InStock

Store/Couplers Quick Connect for Oil/Water/Flat Face Dry Break Designs with twist to Lock Collars

SKU QC-FF-UNF-FM-0800

AU$89.85

🔥 EOFY SALE!

was ~~AU$132.00~~ Save 32%

Please Select Thread Size

3/4" UNO #12 Thread

7/8" UNO #14 Thread

1-1/16" UNO #17 Thread

In stock

Quantity:

Minimum purchase quantity: 1 items

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Pair 1/2" BODY Flat Face Hydraulic Couplers UNO Threads FREE Caps

Store/Couplers Quick Connect for Oil/Water/Flat Face Dry Break Designs with twist to Lock Collars

Product Details

Brand: ENGMATTEC

Weight: 0.75 kg

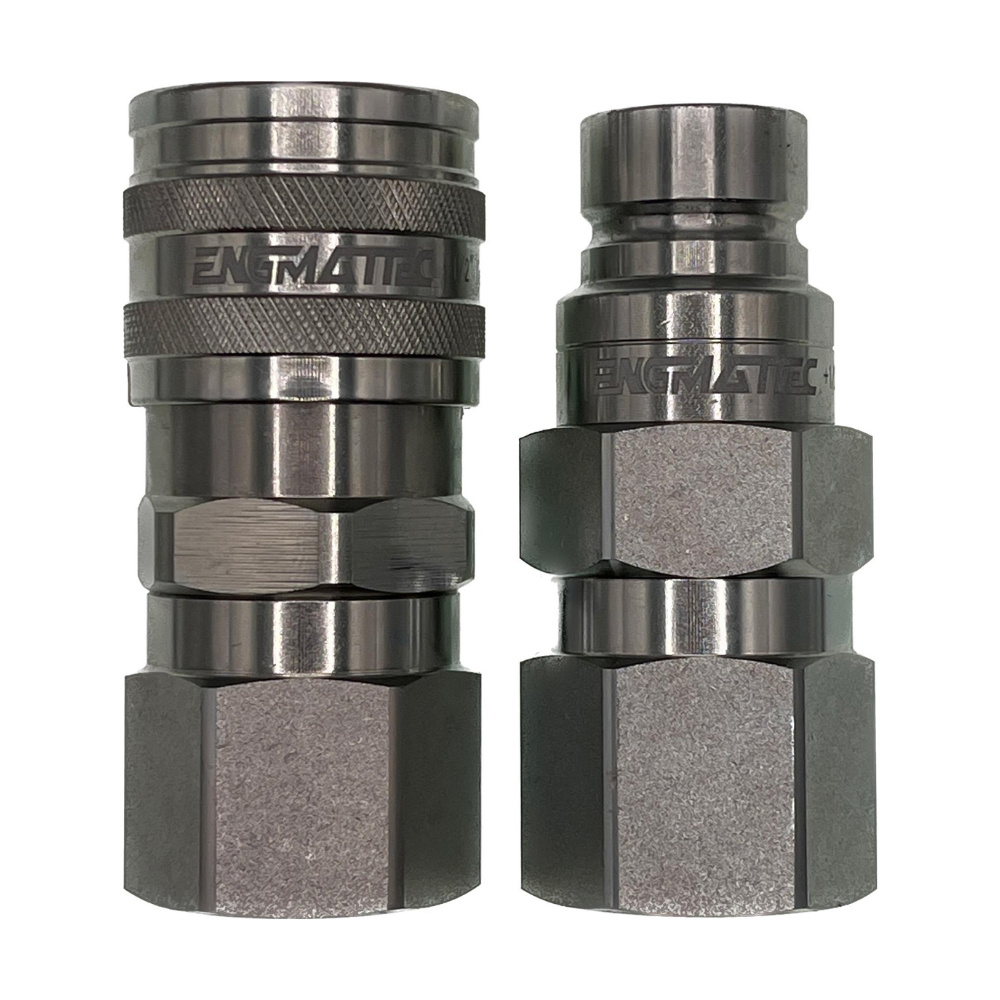

1/2" BODY Flat Face Hydraulic Quick Connect Couplers with 3/4", 7/8" & 1-1/16" UNO threads one set or Pair.
Oil flows up to 115 Lt/min Pressures to 350 bar (5,000 psi)

FREE: Pair of Synthetic Rubber Dust caps with each set purchased.

Zero Drips Dry Break, and Locking on Sleeve:

Flat face couplers are now used extensively on all types of Hydraulic machinery because

they are easy to connect
they are virtually dry on disconnection and
they have a locking sleeve that prevents unwanted disconnects when knocked.
The 1/2 inch size of Flat Face Quick Connect Hydraulic Couplers is the most common type of flat face coupler available.

Three (3) different UNO Threads:
These Flat Face Hydraulic Quick connect couplers are available with three (3) different sizes of the American UNO Thread with the same 1/2" sized body.
The female UNO thread sizes available with these 1/2 Flat Face couplers are as follows:

3/4" UNO or dash #12 thread
7/8" UNO or dash #14 thread
1-1/16" UNO or dash #17 thread

Need Help?

Call us on (07) 5563 1982

ENGMATTEC (ENG-MAT-TEC) Flat Face quick connect hydraulic couplings are our Brand, they are manufactured for us and are suitable for applications involving dusty or dirty environments and where oil loss on disconnection cannot be tolerated.

This series of couplings are designed for use in excavator hammer (rock breaker) hydraulic and Auger circuits and other applications involving high pressure pulses. Construction plant, mobile equipment, general industrial, mining and agricultural.

Compatibility and Interchangeability with other makes:

These 1/2" Flat-Face dry break Hydraulic quick couplers are compatible and Interchangeable with other Industrial hydraulic Brands ;

Industry Interchangeability - mates with other manufacturers' ISO 16028 couplings such as Faster 2FFI, Cejn x62, Hansen Qa2900, and Parker FE/FF/FEM series, DNP PLT4, Stucchi FIRG/A Series, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49

The above price is for one pair, (one set which includes one male and one female coupler) single male/female halves are available, please call or email.

Please refer to our size charts below for correct sizing. The best measurement to use is 'J' column.

Specifications
Threaded Connections
3/4" or 7/8" or 1-1/16 UNO

Rated Working Pressure

350 Bar (5100 PSI)

Flow Rates

From 20 to 70

Pressure drops

less than 0.1 Bar @ 20 Litres / Minute

6 Bar @ 150 Litres / Minute

Operating Temperatures

-20 to 100 degrees Celsius

Materials of Construction

Carbon steel body,
Heat treated wear parts to increase hardness and corrosion resistance,
Nitrile seals.
All couplings are Zinc plated.

Weight

750 grams

Features

Flat mating faces are easily wiped clean to prevent the ingress of contaminants.

Improved flow path minimises the pressure drop.

Non-spill design avoids fluid loss during connection and disconnection.

No air intrusion during connection.

Locking sleeve prevents accidental disconnection.

Zinc nickel surface treatment and meets 200 hour salt spray tests.

Standard

This Series conform to ISO 16028 (2006) in all respects

Connection / Disconnection Under Pressure

Connection with residual pressure in the line will be difficult or impossible.
For applications where connection under pressure is required,
Connect under Pressure male couplings are available,

Click here for Connect Under Pressure Flat Face Couplers

or screw couplings from our VV or VD Series are recommended.

Click Here for VD series Screw Together Hydraulic Quick Connect Couplers

Click Here for VV series Screw Together Hydraulic Quick Connect Couplers

Please note" Disconnection of any quick disconnect / quick release coupling whilst under full system pressure can be very dangerous and should not be attempted.
