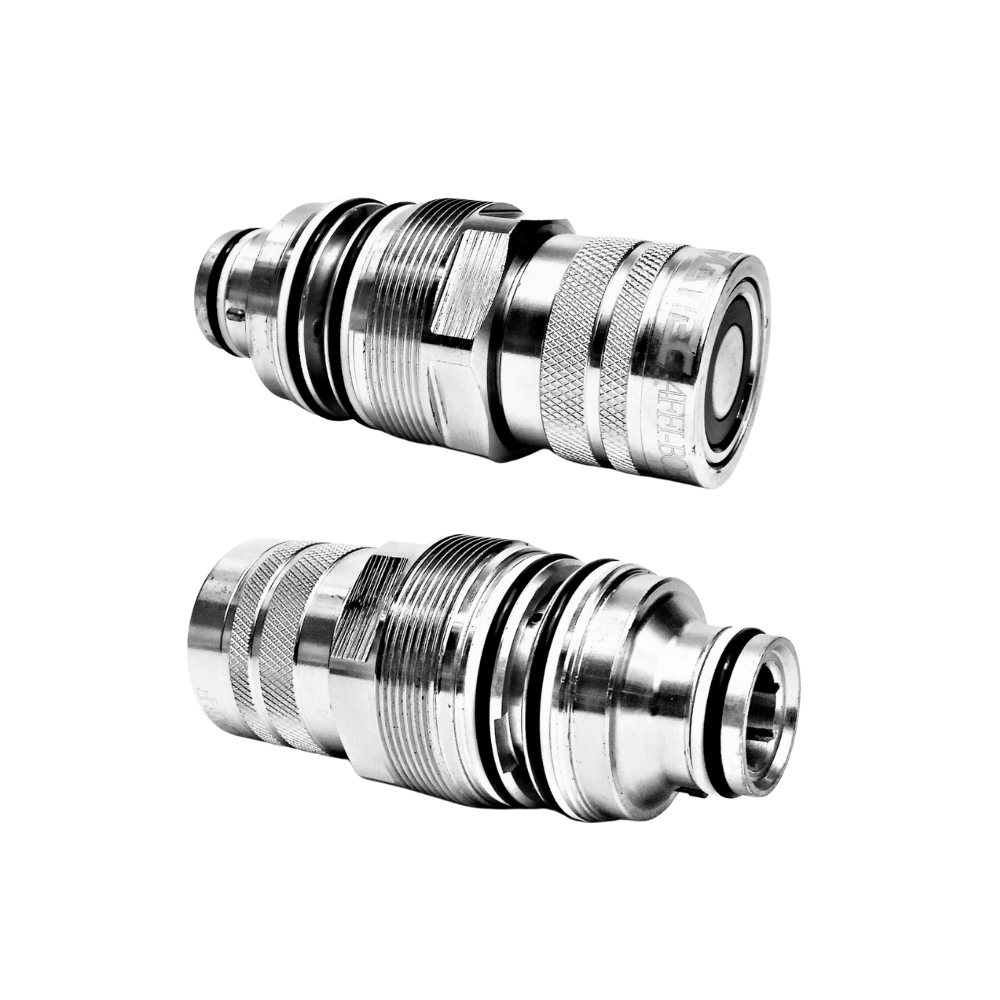

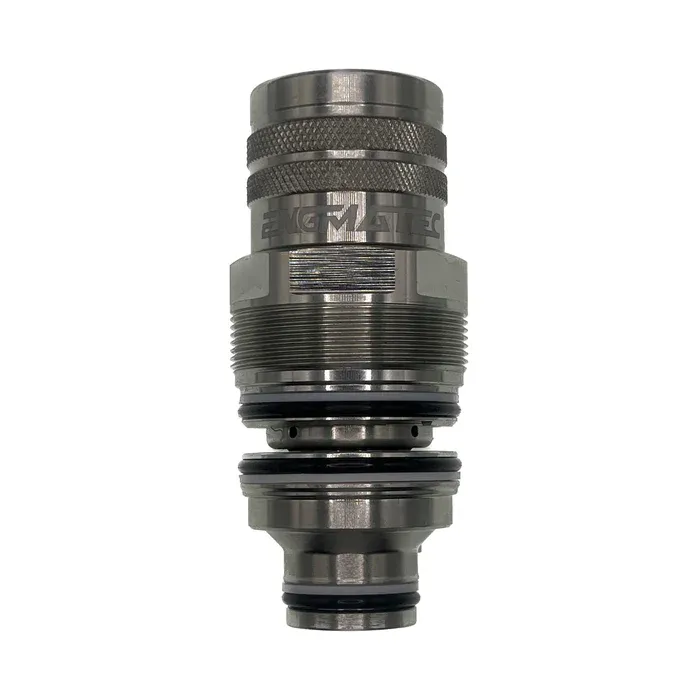

4FFI Old Style Bobcat Female Flat-Face Coupler designed to screw into the cast Steel Manifold mounted on the booms on Bobcat Skid Steers and Positracks.
Replaces Bobcat part number 6680018.

This is the Female Quick Connect Hydraulic manifold coupler is a direct replacement for Older Bobcat equipment fitted with the
“OLD STYLE” 4BD4FI Manifold. Bobcat part number 6680018.

FREE Dust Cap

(see below for compatible Bobcat models)

it is designed to screw into the "Old Style" manifold: mounted on the arm or boom of the machine that supports the Bucket.
Fully interchangeable and connectable with all other flat face couplers manufactured to ISO 16028

This range of couplers was designed to allow for a fast tools free “dry break” changeover of hydraulic attachments such as Buckets, Augers, Trenchers, Grapples, Brooms, Slashers, Sweepers,

If you have a Bobcat Skid Steer Loader, Track Loader, Compact loader, or Excavator, then chances are your machine is fitted with these couplers and someday they will require replacement.

If your damage is Greater and you require a whole new Manifold then Please click the link Below
Replacement Bobcat 3 Port Manifold with Couplers - Complete Assembly

Save your back and prevent blisters get yourself a set of spares because if you knock and damage one of these then you and your machine are out of action (unless you like to using a spade or shovel)

• Bobcat Part Number 6680018
• Faster, Part Number 4FFI-12

Description “Kit Coupler”

Please note this coupler cartridge is for the “OLD STYLE” 4BD4FI Manifold

These couplers have an external Metric Thread measuring Ø46mm with a 1.5 mm pitch (approx. Ø 1-13/16” with 17 T.P.I )

The male end has a diameter of 24.5 mm

It is also identified by its Three (3) Sets of external Black O Rings with 3 White Backing Rings.

(The new Style coupler: has an external Metric Thread measuring Ø 48 mm with a 1.5 mm pitch (approx. Ø 1-7/8” with 17 T.P.I ) and only has two (2) O Rings (one Black and one Blue) and does NOT have any White Backing rings.

• Maximum Working Pressure 350 Bar (5145 PSI)
• Nominal Size, Dash 08, 12.5 mm, ½”
• Rated Flow Rate up to 110 Lt / Min (27.5 Gallons / Min)
• Virtually Dry Break on Disconnect (less than 0.01ml)
• Connect under pressure? Yes
• Force required to connect 210 N (21 KG) (47 pounds)
• Minimum Burst pressure 1400 Bar (20500 PSI)
• Operating temperature -40 Degrees Celsius to +105 Degrees Celsius
• the female coupler has a lockable collar to prevent accidental disconnection

• Bobcat Skid Steer Models 753, 763, 773863, 864, 883
• A220.A300.A770.
• S130 through to the S850.
• Bobcat Track Drive Models T140 through to the T870.
• Bobcat Telescopic Loader, Reach Truck Models TL360, TL470, TL470HF.
• Bobcat Tool Cat Models 5600, 5610.

DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI , Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49
