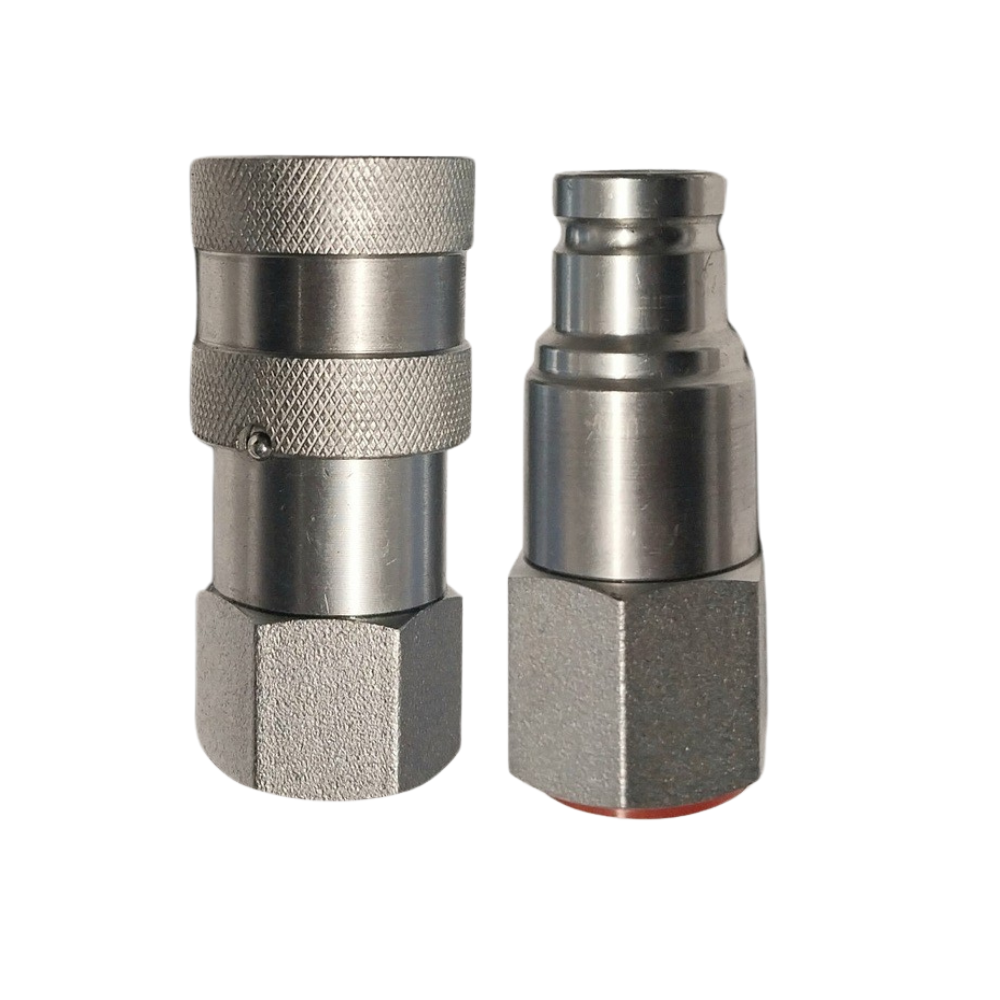

Pair of Quick Connect Flat Face Hydraulic Couplers 3/8" Body with 3/8" or optional 1/2 " BSPP threaded Ports
Oil flows of up to 70 Lt/min at a pressure of 5,100 psi (350 bar) made to ISO 16028 series A specifications

These 3/8" Body flat faces are less common than the 1/2" Body flat faces.
They are often used on smaller hydraulic machines and lower-flow hydraulic systems.

Rated to Flow 70 Lt/Min oil with a 2 bar Pressure drop.

Pressure rated to 350 bar (5000 psi)

These are a smaller body lower flow quick connector, with a smaller 3/8" or 1/2" BSPP thread.

BSPP = British Standard Pipe Parallel THREAD.

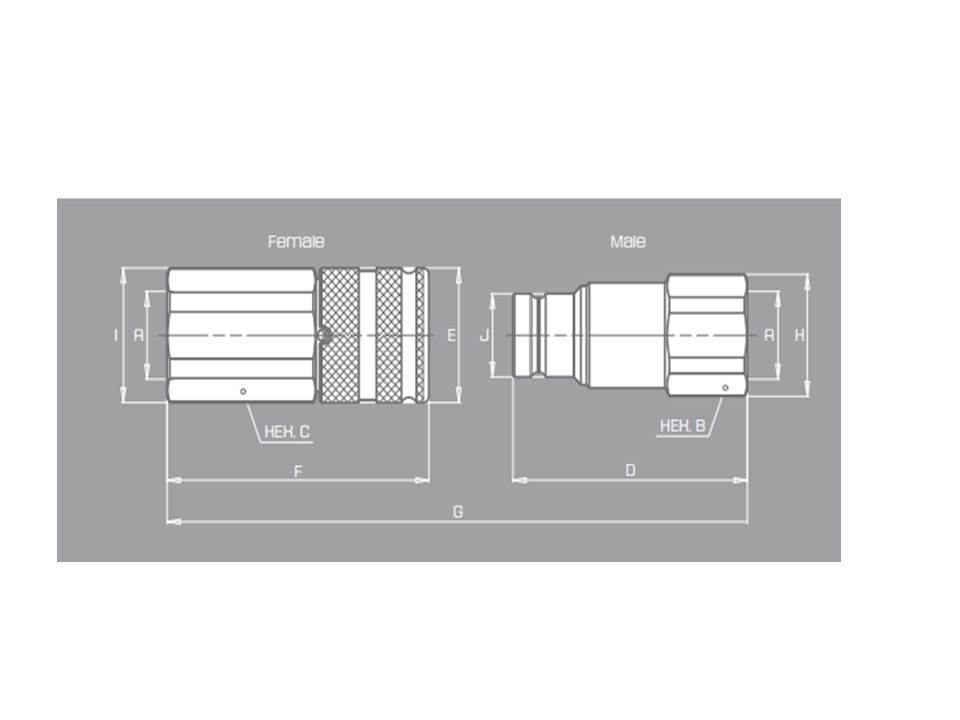

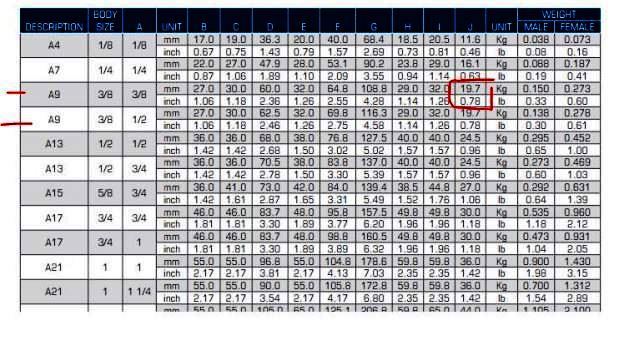

It is easy to check compatibility, please refer to our size charts below for correct sizing.
The best measurement to use is the 'J' column.
Manufactured to comply with ISO16028 A SERIES
A9 J=19.7 across male quick connect tip

Please note, this sale is ONLY for one pair of

3/8" body x 3/8" BSPP Ports or
3/8" Body x 1/2" BSPP Ports.

If you need other sizes

Please click here to view our other sizes available.
