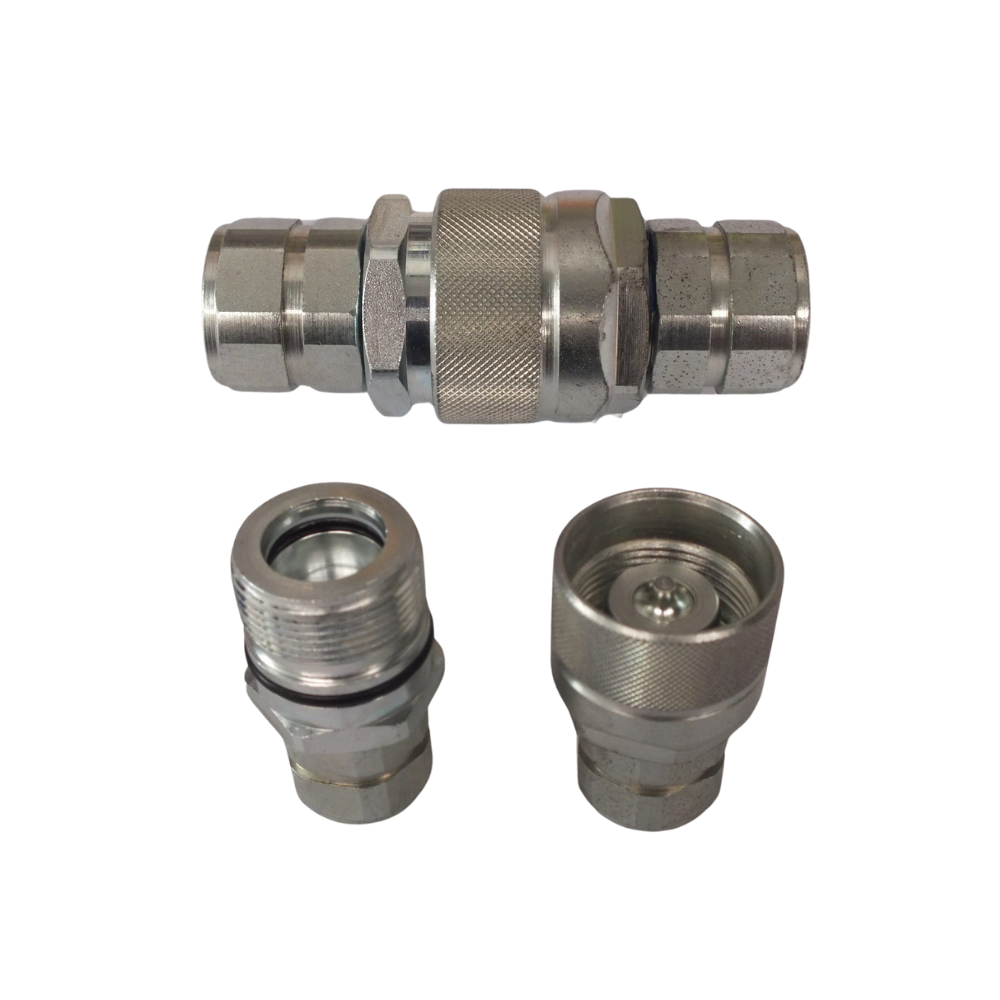

3/4" Hydraulic Poppet Couplers designed to be Screw Together Under Pressure ISO 14541 Pressures to 3,600 PSI

Ever had trouble reconnecting your attachment to a machine because of residual system pressure, or the attachment has been left in the sun all day and has built up pressure due to heat expansion?

These pair of 3/4" couplers are quality items manufactured in Italy they come with 3/4" BSPP female threaded ends and are fully interchangeable with similar coupler series manufactured by DNP PVV3, Stucchi VD, Faster CVV, Parker QHPA & Ryco R120

Also available in the following sizes 1/4", 3/8", 1/2", 1" and 1-1/2"

These Quick connect hydraulic couplings are the ideal choice where a tough, durable product of Superior Quality is required.

This Coupler is designed and manufactured to conform to ISO 14541 Series.

They are used to minimize the pressure drop and provide an easy and positive sealing arrangement.

Typical applications include: Earthmoving equipment and attachments such as Grabs, Thumbs, Augers, Rock breakers, Earth drills, Hammers, Pulverisers, Quick Hitches, Buckets, Screens, Crushers ect, Construction, manufacturing, chemical processing, agricultural equipment and general industrial machinery.The above price is for one pair, (one male and one female coupler)

We also sell dust plugs and caps to suit

Dimensions and Performance

• Threaded Connections 3/4" BSPP Female
• Rated Working Pressure 250 Bar (3600 PSI)
• Flow Rates From 25 to 175 Litres/Minute
• Pressure drops
• less than 0.1 Bar @ 25 Litres / Minute
• 4Bar @ 175 Litres / Minute
• Operating Temperatures -20 to 100 degrees Celsius

Zinc plated, heat treated carbon steel. Nitrile ‘O’ ring seals with PTFE backing rings

Features

• Positive, connect under pressure connection ensured by the screw together locking system.
• When connected the male and female halves can rotate, even under pressure, thus avoiding any torsional stress in the flexible hoses.
• Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop.
• Poppet valve seals have shockproof protective edges.
