Flat Face Connect Under Pressure Hydraulic Couplers Stucchi ISO 16028

Finding it almost impossible to do up attachment line couplers? Here's the answer!

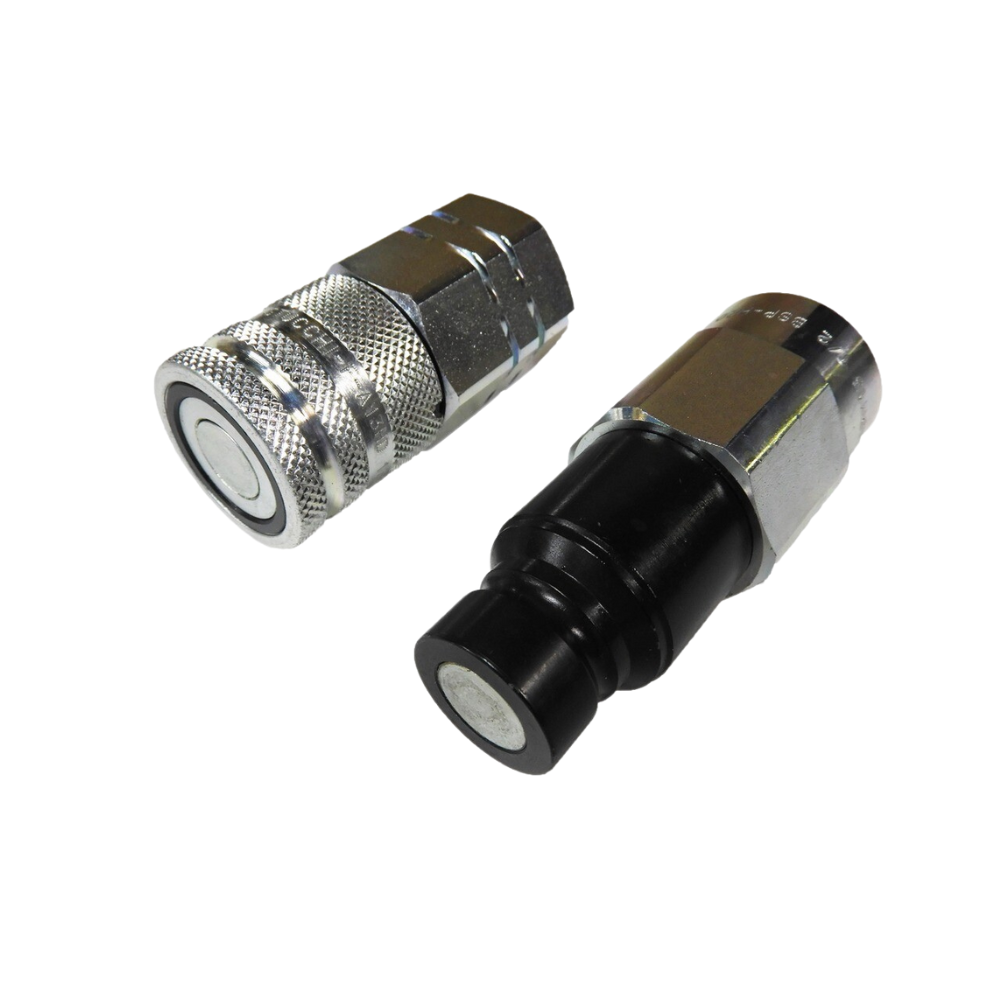

The "Male" “APM” Flat Face and the Female A-HD Series Flat Face couplings are the solution for the manual connection with high residual pressure in the circuit.

The male coupling has a triple valve system: double internal pressure release valve and the flat face valve.

This system easily allows the connection of couplings with the presence of high internal residual pressure on the male side without fluid loss.
Based on this main feature, “APM” male couplings are the ideal solution to hydraulic applications where there is the requirement to connect the circuit with internal residual pressure.

The APM series conform to ISO 16028

Used extensively on all manner of Hydraulic machines, these flat face couplers are the most common flat face size for Australian used machines . These are interchangeable, compatible with common ISO 16028 flat face couplers. You can choose to use just the male half, female half or both. Often only a male half is required.

Sizes listed are; However request a quote for any other size in charts.

3/8" Body x 3/8" BSPP

1/2" Body x 1/2" BSPP

3/4" Body x 3/4" BSPP

Theoretical calculation of connect force with residual pressure:

Benefits

• Easy connection with male side under residual pressure (female side to drain) thanks to the internal valve.
• Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit.
• Minimal fluid spillage during disconnection, reducing fluid spillage to the environment.
• Minimal air inclusion during connection.
• Internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system.
• Male body black zinc plated for identification
• The modular design allows flexibility with a wide range of configurations.
• Good resistance to pressure impulses.
• Compact slim design.
• Safe and simple to use.

• Before to connect, clean the mating surface of the couplings to avoid dirt inclusion in the circuit.
• To connect push the male half towards the female half or vice versa.
• After connection turn the external sleeve (on the female Half) to engage safety lock function to prevent accidental disconnection.
• To disconnect turn the external sleeve on the female half until the sleeve lock notch match the safety lock ball and push back the sleeve.

Connect under pressure Hydraulic Flat Face Couplers

Connection Compatibility:

These connect under pressure 1/2" flat face couplers are compatible with;

DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI , Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49

Threaded Connections BSPP

Rated Working Pressure 350 Bar (5100 PSI)

Flow Rates From 20 to 150 Litres/Minute

Pressure drops

less than 0.1 Bar @ 20 Litres / Minute

6 Bar @ 150 Litres / Minute

Operating Temperatures -20 to 100 degrees Celsius

Materials of Construction

Carbon steel body, treated to increase hardness and corrosion resistance, Nitrile seals. H Series couplings are Zinc plated.

Weight 750 gms

Features

• Flat mating faces are easily wiped clean to prevent the ingress of contaminants.
• Improved flow path minimises the pressure drop.
• Non-spill design avoids fluid loss during connection and disconnection.
• No air intrusion during connection.
• Locking sleeve prevents accidental disconnection.
• Zinc nickel surface treatment and meets 200 hour salt spray tests.
• Standard
• This Series conform to ISO 16028 (2006) in all respects
• Connection / Disconnection Under Pressure

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
