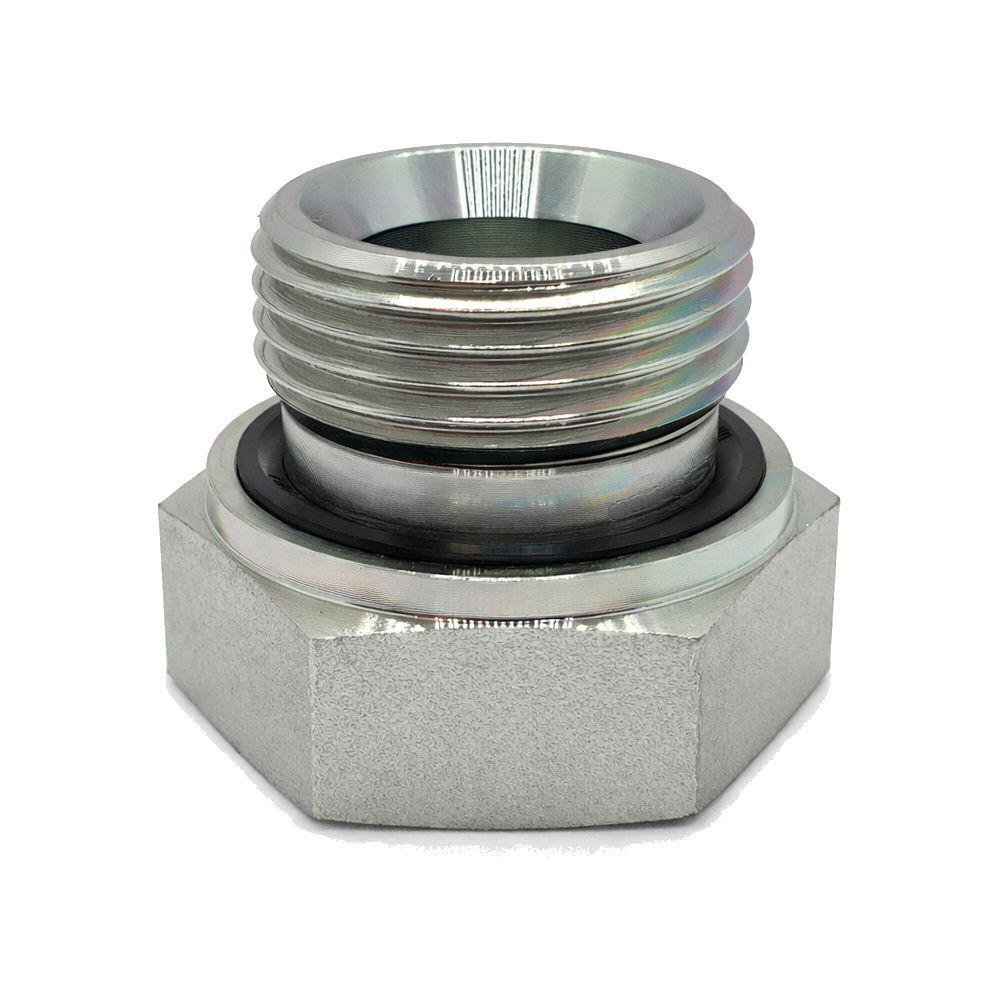

BSP Parallel Male Blanking Plug

A BSP parallel male plug for blanking off an unused BSPP port. Hex head, so it goes in and out with a spanner.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• A parallel plug does not seal on the thread. It needs a bonded seal washer or a 60° cone seat in the port.
• Do not substitute a BSPT tapered plug. It bottoms part way and leaves a gap you cannot close with torque.

Technicians Advice

Fit a fresh bonded washer every time, even on a plug. A blanked port that weeps is the one nobody checks because there is no hose on it, and it will drip quietly for months.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L	H1	Material	Finish
BPM-02	16mm	14mm	Mild steel	Plated finish
BPM-04	20mm	19mm	Mild steel	Plated finish
BPM-06	23mm	22mm	Mild steel	Plated finish
BPM-08	25mm	27mm	Mild steel	Plated finish
BPM-12	29mm	32mm	Mild steel	Plated finish
BPM-16	35mm	41mm	Mild steel	Plated finish
BPM-20	40mm	55mm	Mild steel	Plated finish
BPM-32	40mm	75mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
