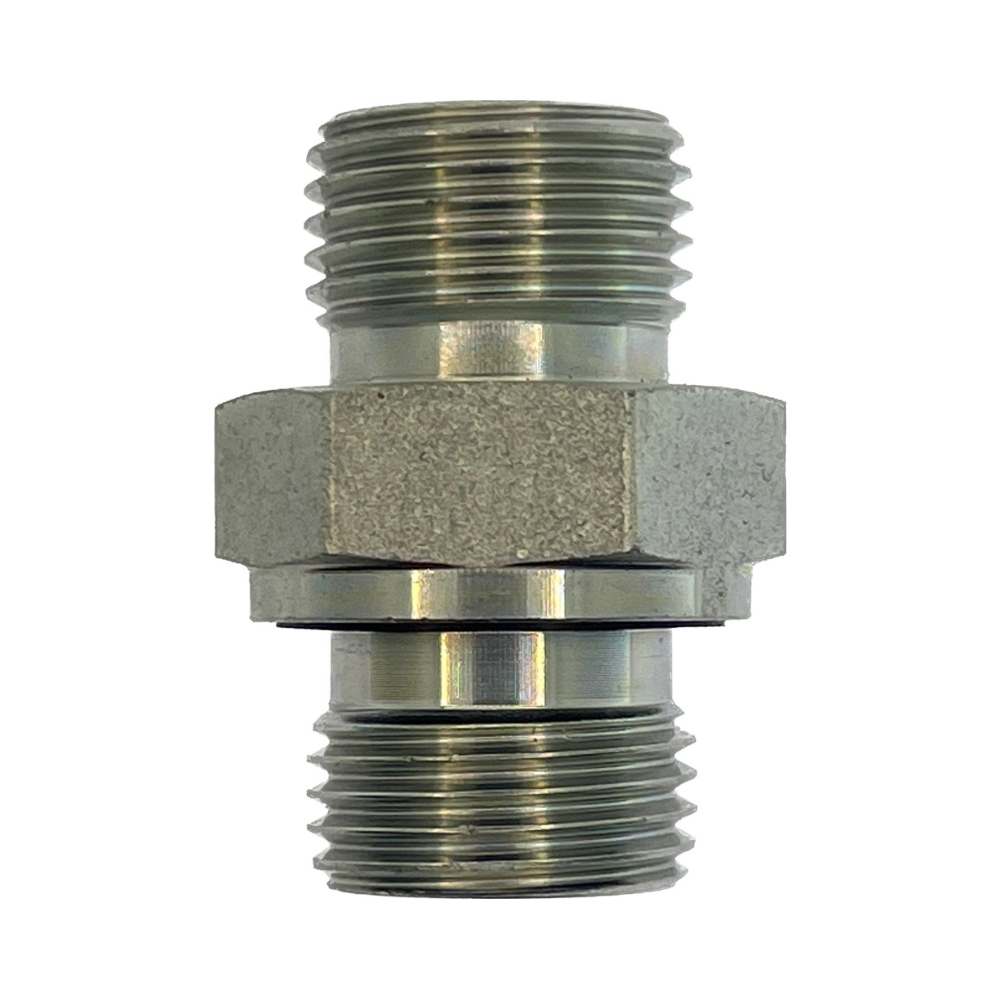

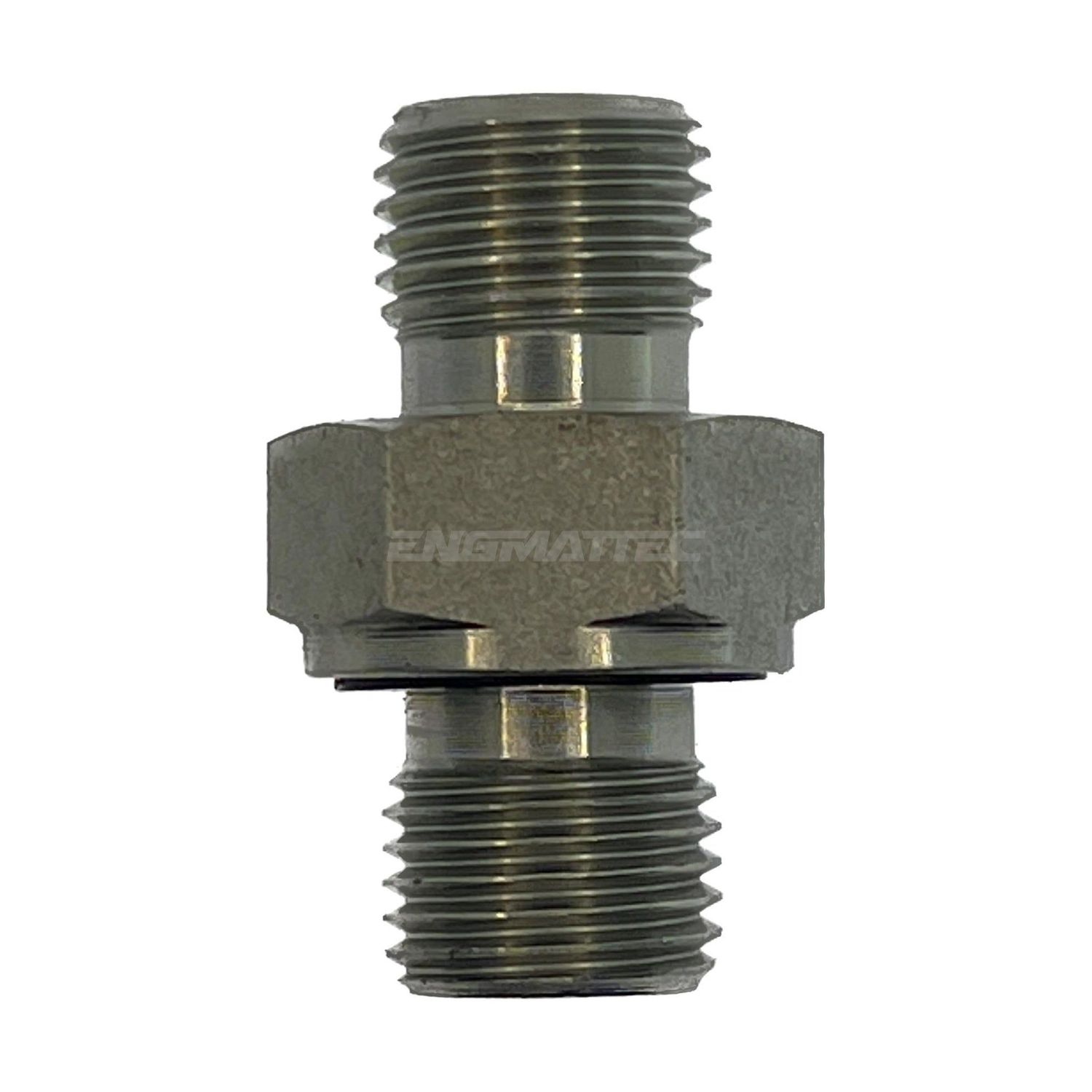

BSP Parallel Male x BSP Parallel Male Straight Adaptor

Parallel BSP both ends in a straight nipple. Joins two BSPP ports or swivel-nut hose ends on Australian and British-built gear, where a bonded washer or cone does the sealing rather than the thread.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.

How to Choose

• A parallel thread cannot seal on itself. Each end needs a bonded seal washer or a 60° cone seat in the mating part.
• Do not substitute BSPT. A tapered male into a parallel female binds part way and never seals.
• Unequal sizes are stocked, so check both ports rather than assuming they match.

Technicians Advice

The usual failure on a BSPP joint is the bonded washer left off or reused flat. It is a two dollar part holding the whole joint, so fit a fresh one every time and make sure the port face is clean and square before you wind it down.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BPM-BPM-0202	1/8" BSPP	1/8" BSPP	23mm	41mm	Mild steel	Plated finish
BPM-BPM-0204	1/8" BSPP	1/4" BSPP	31mm	19mm	Mild steel	Plated finish
BPM-BPM-0404	1/4" BSPP	1/4" BSPP	32mm	19mm	Mild steel	Plated finish
BPM-BPM-0406	1/4" BSPP	3/8" BSPP	34mm	22mm	Mild steel	Plated finish
BPM-BPM-0408	1/4" BSPP	1/2" BSPP	38mm	27mm	Mild steel	Plated finish
BPM-BPM-0606	3/8" BSPP	3/8" BSPP	34mm	22mm	Mild steel	Plated finish
BPM-BPM-0608	3/8" BSPP	1/2" BSPP	38mm	27mm	Mild steel	Plated finish
BPM-BPM-0612	3/8" BSPP	3/4" BSPP	40mm	32mm	Mild steel	Plated finish
BPM-BPM-0808	1/2" BSPP	1/2" BSPP	40mm	27mm	Mild steel	Plated finish
BPM-BPM-0810	1/2" BSPP	5/8" BSPP	–	–	Mild steel	Plated finish
BPM-BPM-0812	1/2" BSPP	3/4" BSPP	42mm	32mm	Mild steel	Plated finish
BPM-BPM-0816	1/2" BSPP	1" BSPP	46mm	41mm	Mild steel	Plated finish
BPM-BPM-1010	5/8" BSPP	5/8" BSPP	43mm	30mm	Mild steel	Plated finish
BPM-BPM-1212	3/4" BSPP	3/4" BSPP	44mm	32mm	Mild steel	Plated finish
BPM-BPM-1216	3/4" BSPP	1" BSPP	48mm	41mm	Mild steel	Plated finish
BPM-BPM-1220	3/4" BSPP	1.1/4" BSPP	51mm	50mm	Mild steel	Plated finish
BPM-BPM-1616	1" BSPP	1" BSPP	51mm	41mm	Mild steel	Plated finish
BPM-BPM-1620	1" BSPP	1.1/4" BSPP	53mm	50mm	Mild steel	Plated finish
BPM-BPM-1624	1" BSPP	1.1/2" BSPP	55mm	55mm	Mild steel	Plated finish
BPM-BPM-2020	1.1/4" BSPP	1.1/4" BSPP	55mm	50mm	Mild steel	Plated finish
BPM-BPM-2024	1.1/4" BSPP	1.1/2" BSPP	62mm	55mm	Mild steel	Plated finish
BPM-BPM-2424	1.1/2" BSPP	1.1/2" BSPP	64mm	55mm	Mild steel	Plated finish
BPM-BPM-2432	2" BSPP	1.1/2" BSPP	66mm	70mm	Mild steel	Plated finish
BPM-BPM-3232	2" BSPP	2" BSPP	68mm	70mm	Mild steel	Plated finish
BPM-BPM-4040	2.1/2" BSPP	2.1/2" BSPP	–	–	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
