Magnetic Drain Plugs, Magnetic Filter Rods and Weld-On Bosses for Hydraulic Tanks

Cheap insurance for any hydraulic tank or gearbox: BSPP magnetic drain plugs from 1/8" to 1-1/4", full-length magnetic filter rods that hang the magnet up in the oil flow, and weld-on steel bosses so you can put a threaded port anywhere on a steel tank. Pick your item and thread from the dropdown and it is on its way.

Ways to buy:

• Off the shelf – all 17 lines below with their own part numbers.

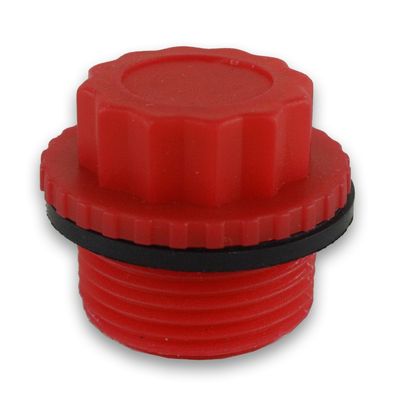

• Tank breathers and blanking plugs are on the breathers and plugs listing.
• Replacement oil tanks: Power Pack Oil Tanks 1-400 L.

Pick your plug, rod or boss

What is in the box

• One item as selected. Plugs and rods include the sealing washer.

Specifications

How to choose

• Match the thread of your existing drain port – the dash number in each label is the size in 1/16ths of an inch.
• Filter rods beat plugs where there is no return filter – the magnet sits up in the circulating oil, not just in the sump.
• No threaded port? Weld in a boss and fit whichever plug or rod you like.

Technicians Advice

Cut a magnetic drain plug loose after 50 hours on a new machine and read the fuzz: fine grey paste is normal running-in, glitter or flakes means a pump or gear is letting go – catch it here and you save the whole circuit. On DC power packs there is usually NO return filter, so the magnet is your only filtration; wipe it every oil change. Seal BSPP plugs on the washer, not on thread tape – tape shreds and ends up in the pump. And when welding in a boss, screw a sacrificial bolt into it first so weld spatter cannot key into the thread.
