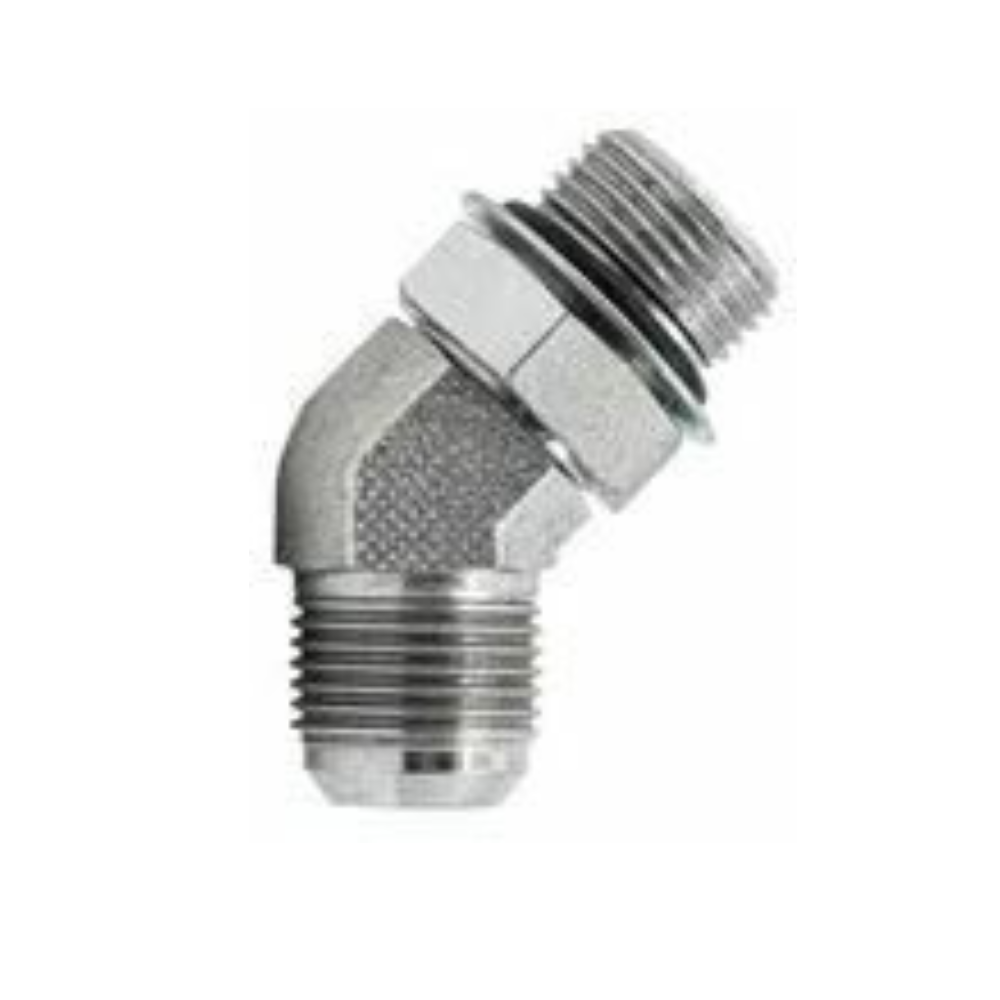

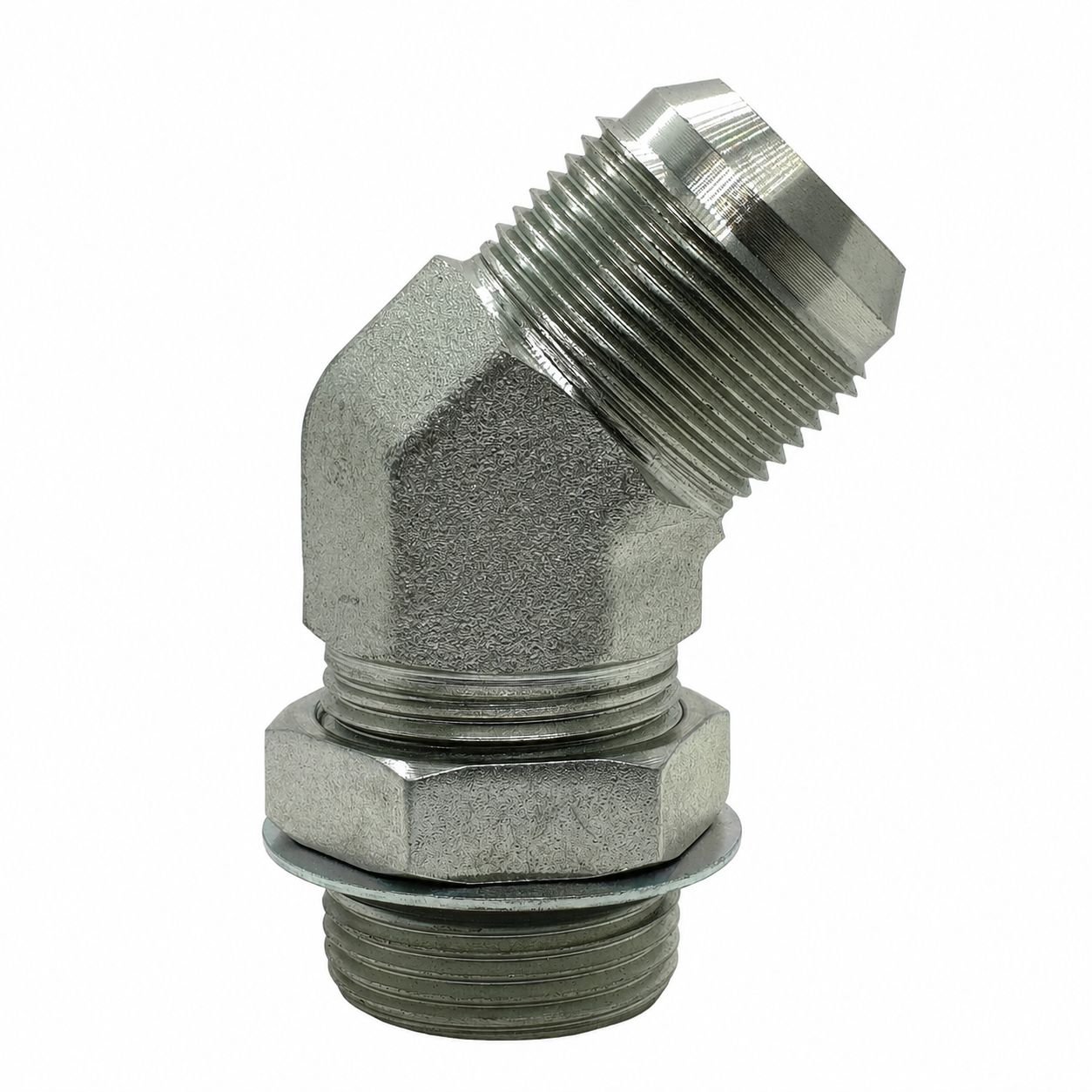

JIC 37° Male x SAE O-Ring Boss Male 45° Compact Elbow

O-ring boss into the port, JIC out to the hose, bent 45°. This is the correct way to feed a hose off an SAE straight-thread boss: the O-ring does the sealing at the port and the JIC cone handles the hose end.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. It seals on an O-ring squeezed against the port spotface, not on the thread.

How to Choose

• The ORB end suits a machined boss with a spotface. It will not seal in a tapered port no matter how tight it goes.
• Adjustable versions with a locknut and washer let you clock the elbow to a set angle. This body seats in a fixed orientation.
• Check the O-ring material against the fluid. Standard nitrile is wrong for phosphate ester and for some synthetic oils.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• SAE O-Ring Boss Male (UNO/UNF) – Cylinder end caps, pump and valve bosses on US-built plant. Common on Australian-assembled cylinders too, where it is usually called UNO.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. Also written ORB, SAE ORB or UNO. Thread form is UN/UNF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

If the elbow has to point a particular way, use the adjustable version rather than backing this one off to aim it. Backing off an ORB fitting to clock it unloads the O-ring, and that joint will seep every time the machine gets up to temperature.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	Material	Finish
JIM-UNM-45C-0707	7/16" JIC	7/16" UNO	14.3mm	11.1mm	Mild steel	Plated finish
JIM-UNM-45C-0709	7/16" JIC	9/16" UNO	17.5mm	14.3mm	Mild steel	Plated finish
JIM-UNM-45C-0907	9/16" JIC	7/16" UNO	14.3mm	14.3mm	Mild steel	Plated finish
JIM-UNM-45C-0909	9/16" JIC	9/16" UNO	17.5mm	14.3mm	Mild steel	Plated finish
JIM-UNM-45C-0912	9/16" JIC	3/4" UNO	22.2mm	19.1mm	Mild steel	Plated finish
JIM-UNM-45C-1209	3/4" JIC	9/16" UNO	17.5mm	19.1mm	Mild steel	Plated finish
JIM-UNM-45C-1212	3/4" JIC	3/4" UNO	22.2mm	19.1mm	Mild steel	Plated finish
JIM-UNM-45C-1214	3/4" JIC	7/8" UNO	25.4mm	22.2mm	Mild steel	Plated finish
JIM-UNM-45C-1217	3/4" JIC	1.1/16" UNO	31.8mm	27.0mm	Mild steel	Plated finish
JIM-UNM-45C-1412	7/8" JIC	3/4" UNO	22.2mm	22.2mm	Mild steel	Plated finish
JIM-UNM-45C-1414	7/8" JIC	7/8" UNO	25.4mm	22.2mm	Mild steel	Plated finish
JIM-UNM-45C-1417	7/8" JIC	1.1/16" UNO	31.8mm	27.0mm	Mild steel	Plated finish
JIM-UNM-45C-1714	1.1/16" JIC	7/8" UNO	25.4mm	27.0mm	Mild steel	Plated finish
JIM-UNM-45C-1717	1.1/16" JIC	1.1/16" UNO	31.8mm	27.0mm	Mild steel	Plated finish
JIM-UNM-45C-1721	1.1/16" JIC	1.5/16" UNO	38.1mm	33.3mm	Mild steel	Plated finish
JIM-UNM-45C-2117	1.5/16" JIC	1.1/16" UNO	31.8mm	33.3mm	Mild steel	Plated finish
JIM-UNM-45C-2121	1.5/16" JIC	1.5/16" UNO	38.1mm	33.3mm	Mild steel	Plated finish
JIM-UNM-45C-2126	1.5/16" JIC	1.5/8" UNO	47.6mm	41.3mm	Mild steel	Plated finish
JIM-UNM-45C-2626	1.5/8" JIC	1.5/8" UNO	47.6mm	41.3mm	Mild steel	Plated finish
JIM-UNM-45C-2630	1.5/8" JIC	1.7/8" UNO	54.0mm	47.6mm	Mild steel	Plated finish
JIM-UNM-45C-3030	1.7/8" JIC	1.7/8" UNO	54.0mm	47.6mm	Mild steel	Plated finish

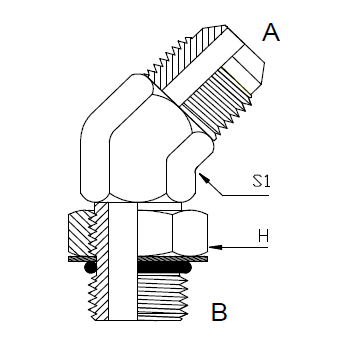

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
