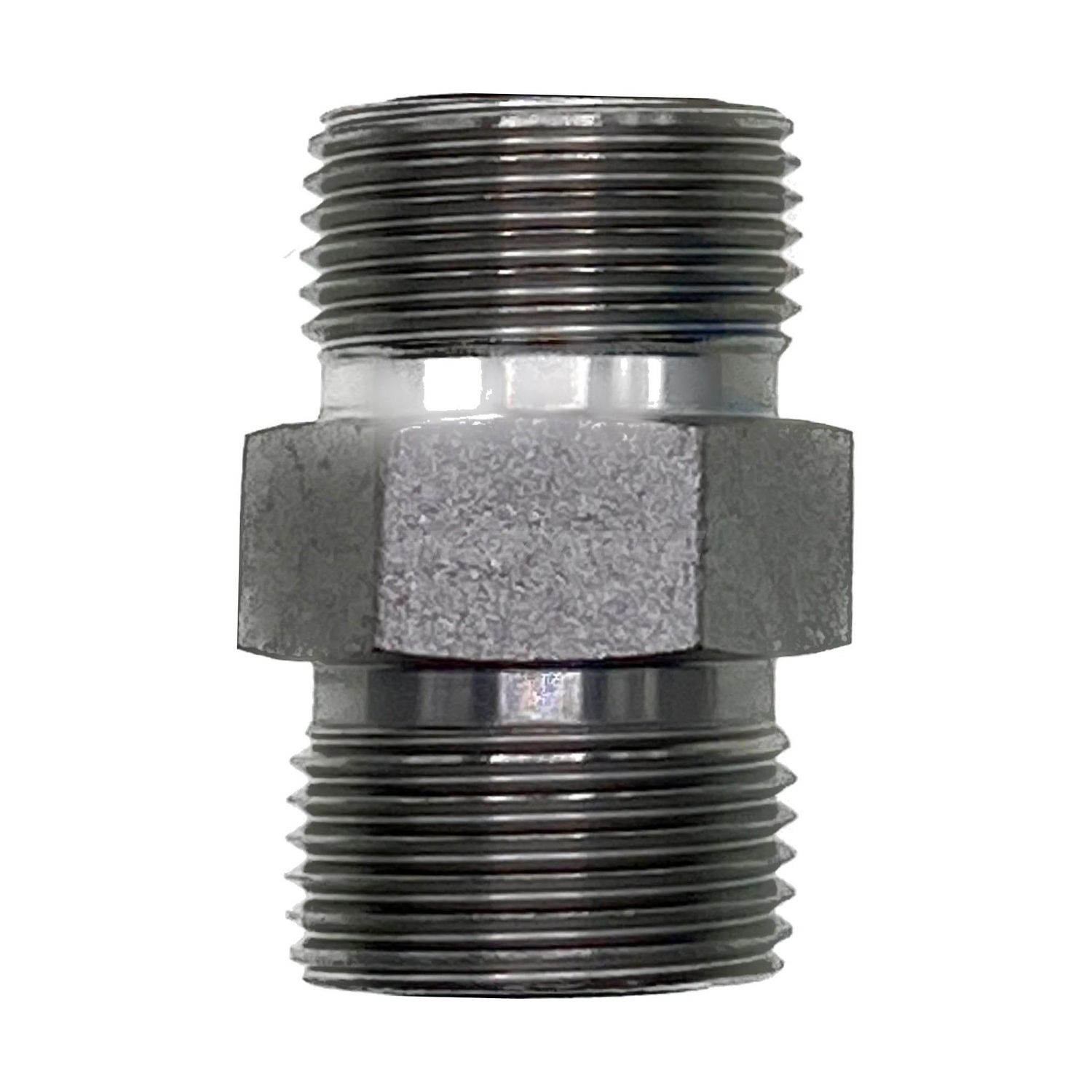

ORFS Male x ORFS Male Straight Adaptor

O-ring face seal both ends. The joiner for machines built entirely on ORFS, used to connect two face-seal hose ends back to back or to step between sizes on a shaking machine.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.

How to Choose

• Both ends seal on an O-ring in the flat face. Nothing goes on either thread.
• Check both grooves and both rings before fitting. A missing ring on the end you cannot see is easy to do.
• ORFS thread size and line size are different numbers, so work to the dash size on the hose.

Technicians Advice

ORFS is the standard to have where a machine vibrates hard, because there is no thread sealant to shake loose and no metal seat to fret. That only holds if the rings are right, so make a habit of looking into both faces before the fitting goes anywhere near the machine.

Where You’ll Find It

• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.

Cross-Reference

• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
ORM-ORM-0909	–	–	27mm	15.9mm	Mild steel	Plated finish
ORM-ORM-0911	9/16" ORFS	11/16" ORFS	30mm	19.1mm	Mild steel	Plated finish
ORM-ORM-1111	–	–	31mm	19.1mm	Mild steel	Plated finish
ORM-ORM-1113	11/16" ORFS	13/16" ORFS	30mm	19mm	Mild steel	Plated finish
ORM-ORM-1313	–	–	35mm	22.2mm	Mild steel	Plated finish
ORM-ORM-1316	13/16" ORFS	1" ORFS	40mm	27.0mm	Mild steel	Plated finish
ORM-ORM-1319	13/16" ORFS	1.3/16" ORFS	43mm	31.8mm	Mild steel	Plated finish
ORM-ORM-1616	–	–	43mm	27.0mm	Mild steel	Plated finish
ORM-ORM-1619	1" ORFS	1.3/16" ORFS	46mm	31.8mm	Mild steel	Plated finish
ORM-ORM-1919	–	–	47mm	31.8mm	Mild steel	Plated finish
ORM-ORM-1923	1.3/16" ORFS	1.7/16" ORFS	49mm	38.1mm	Mild steel	Plated finish
ORM-ORM-2323	–	–	49mm	38.1mm	Mild steel	Plated finish
ORM-ORM-2327	1.7/16" ORFS	1.11/16" ORFS	51mm	44.5mm	Mild steel	Plated finish
ORM-ORM-2727	–	–	51mm	44.5mm	Mild steel	Plated finish
ORM-ORM-3232	–	–	53mm	54.0mm	Mild steel	Plated finish

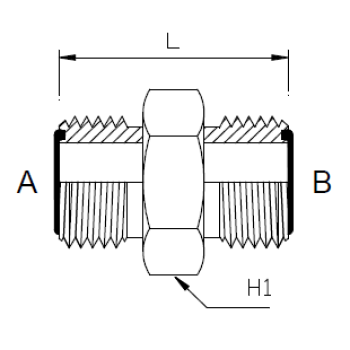

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

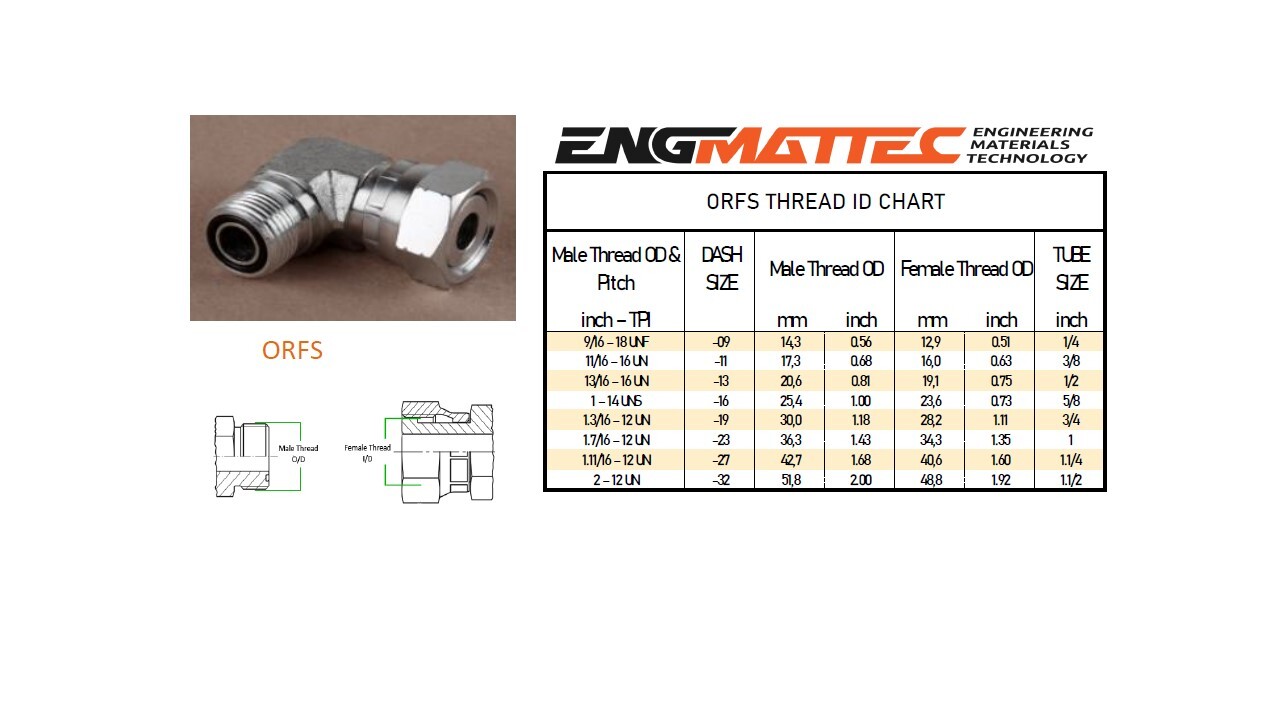

📄 Thread Identification Chart (PDF)
