JIC 37° Male x JIC 37° Male x JIC Swivel Female Branch Tee

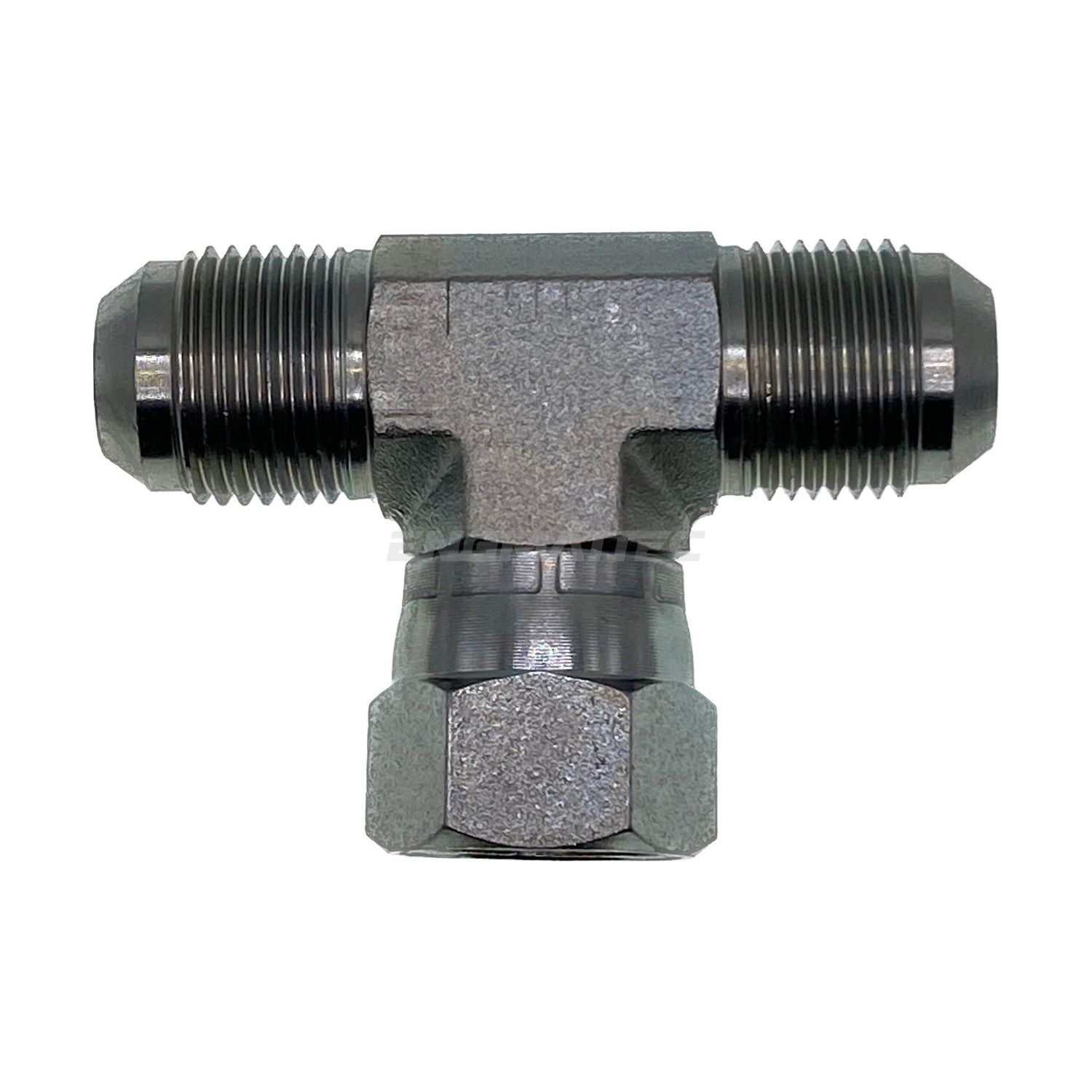

Two JIC male ports in line with a JIC swivel female on the branch. All-JIC tee for taking a hose off the side of a JIC run, with the branch free to turn.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

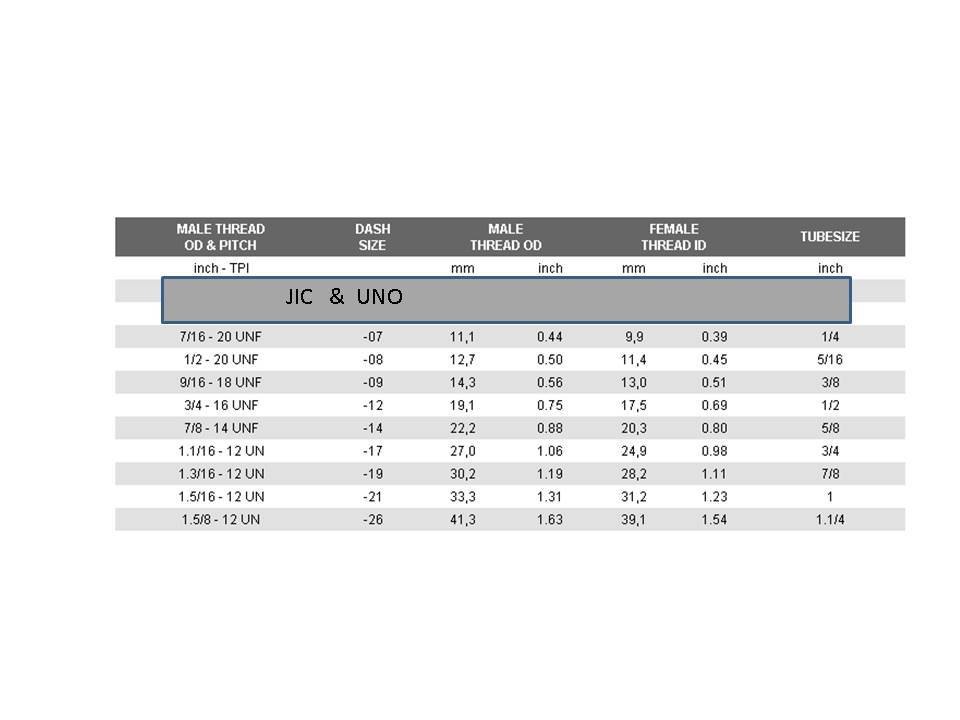

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.

How to Choose

• On a branch tee the two in-line ports carry the main flow and the third port comes off the side at 90°. Get that the wrong way round and the tee physically will not fit the run.
• All three ports work on the 37° cone. Nothing goes on any thread.
• The swivel branch turns as you tighten, so the hose coming off it is never wound up.
• Equal and stepped sizes are stocked, so the branch can be a different size to the run.

Technicians Advice

Three cone faces to wipe, not two. Do it on the bench with a clean rag before the tee goes near the machine, because the port you cannot reach once it is fitted is the one that will seep.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	C	Material	Finish
JIM-JIM-JIF-070707	7/16" JIC	7/16" JIC	14.3mm	11.1mm	7/16" JIC	Mild steel	Plated finish
JIM-JIM-JIF-080808	1/2" JIC	1/2" JIC	15.9mm	14.3mm	1/2" JIC	Mild steel	Plated finish
JIM-JIM-JIF-090909	9/16" JIC	9/16" JIC	17.5mm	14.3mm	9/16" JIC	Mild steel	Plated finish
JIM-JIM-JIF-121212	3/4" JIC	3/4" JIC	22.2mm	19.1mm	3/4" JIC	Mild steel	Plated finish
JIM-JIM-JIF-141414	7/8" JIC	7/8" JIC	25.4mm	22.2mm	7/8" JIC	Mild steel	Plated finish
JIM-JIM-JIF-171717	1.1/16" JIC	1.1/16" JIC	31.8mm	27.0mm	1.1/16" JIC	Mild steel	Plated finish
JIM-JIM-JIF-212121	1.5/16" JIC	1.5/16" JIC	38.1mm	33.3mm	1.5/16" JIC	Mild steel	Plated finish
JIM-JIM-JIF-262626	1.5/8" JIC	1.5/8" JIC	50.8mm	41.3mm	1.5/8" JIC	Mild steel	Plated finish
JIM-JIM-JIF-303030	1.7/8" JIC	1.7/8" JIC	57.2mm	47.6mm	1.7/8" JIC	Mild steel	Plated finish
JIM-JIM-JIF-404040	2.1/2" JIC	2.1/2" JIC	76.2mm	63.5mm	2.1/2" JIC	Mild steel	Plated finish

Key: H centre to face, S1 hex across flats 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
