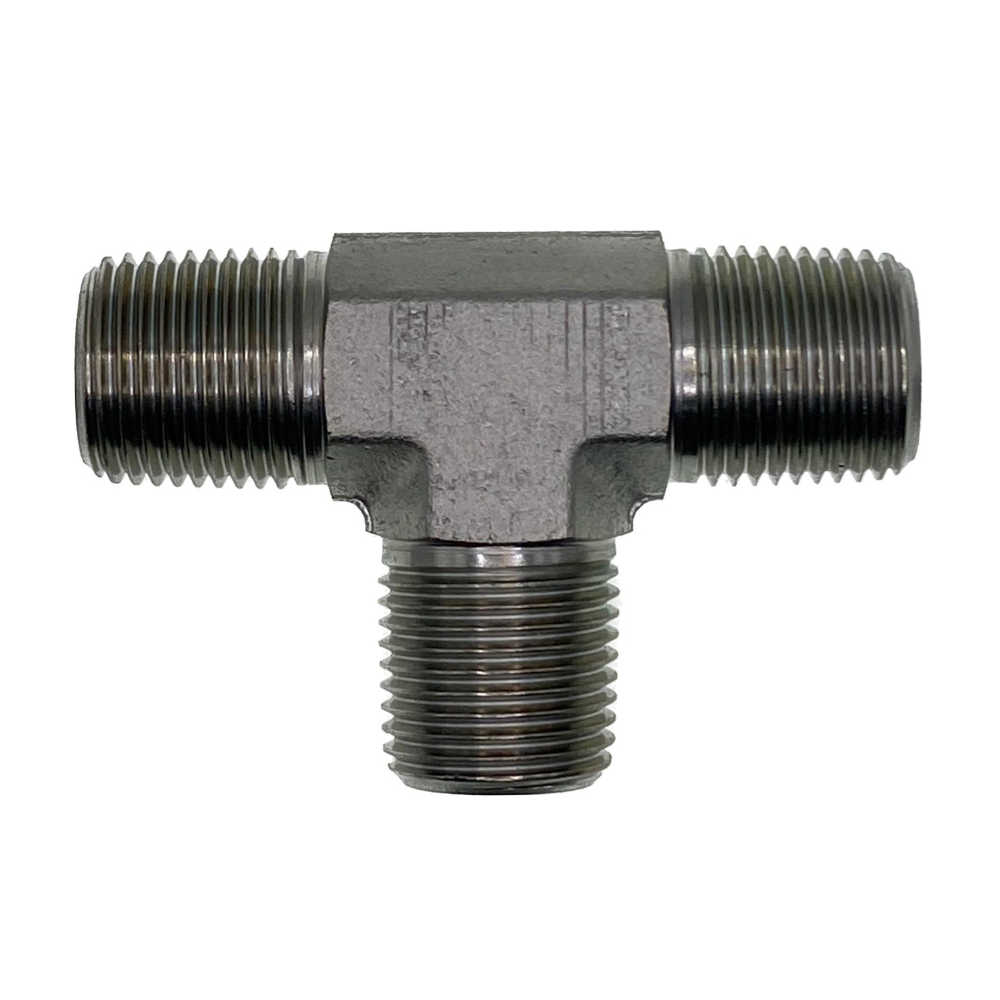

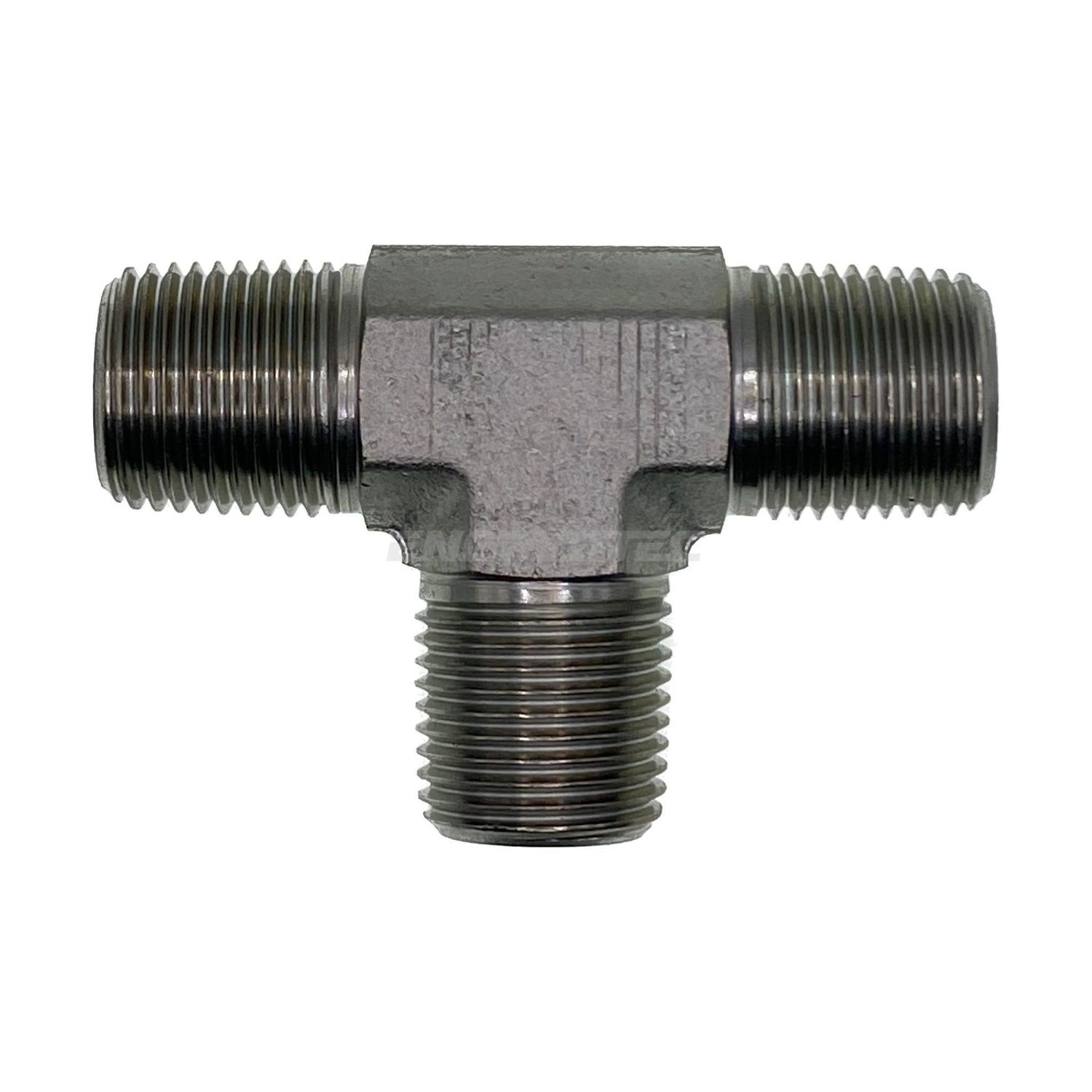

BSP Tapered Male Equal Tee

Three BSP tapered male ports. The workhorse BSPT tee for splitting a threaded line three ways.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.

How to Choose

• All three ports are the same size and thread, so it does not matter which way the tee goes in.
• Every joint seals on the thread, so all three need sealant.
• BSPT is 55°. A 60° NPT female will start and then tear the thread out.

Technicians Advice

Keep tape back off the first two threads on all three ports and wind it the way the thread turns. On a tee you are doing this three times, so it is three chances to leave a tail loose in the circuit.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

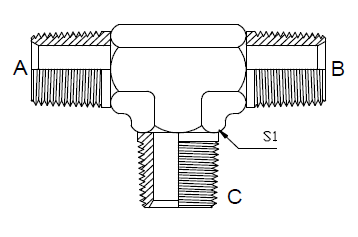

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	C	Material	Finish
BTM-BTM-BTM-020202	1/8" BSPT	1/8" BSPT	11mm	1/8" BSPP	Mild steel	Plated finish
BTM-BTM-BTM-040404	1/4" BSPT	1/4" BSPT	14mm	1/4" BSPP	Mild steel	Plated finish
BTM-BTM-BTM-060606	3/8" BSPT	3/8" BSPT	16mm	3/8" BSPP	Mild steel	Plated finish
BTM-BTM-BTM-080808	1/2" BSPT	1/2" BSPT	22mm	1/2" BSPP	Mild steel	Plated finish
BTM-BTM-BTM-121212	3/4" BSPT	3/4" BSPT	27mm	3/4" BSPP	Mild steel	Plated finish
BTM-BTM-BTM-161616	1" BSPT	1" BSPT	33mm	1" BSPP	Mild steel	Plated finish
BTM-BTM-BTM-202020	1.1/4" BSPT	1.1/4" BSPT	41mm	1.1/4" BSPP	Mild steel	Plated finish
BTM-BTM-BTM-242424	1.1/2" BSPT	1.1/2" BSPT	48mm	1.1/2" BSPP	Mild steel	Plated finish

Key: S1 hex across flats 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
