Italian Made Quick Hitch Valves, Standard & Pressure Reducing Options

Store/Valves for Controlling and Directing Oil Flow and Pressure/Flow Control Valves

Product Details

Weight: 5.10 kg

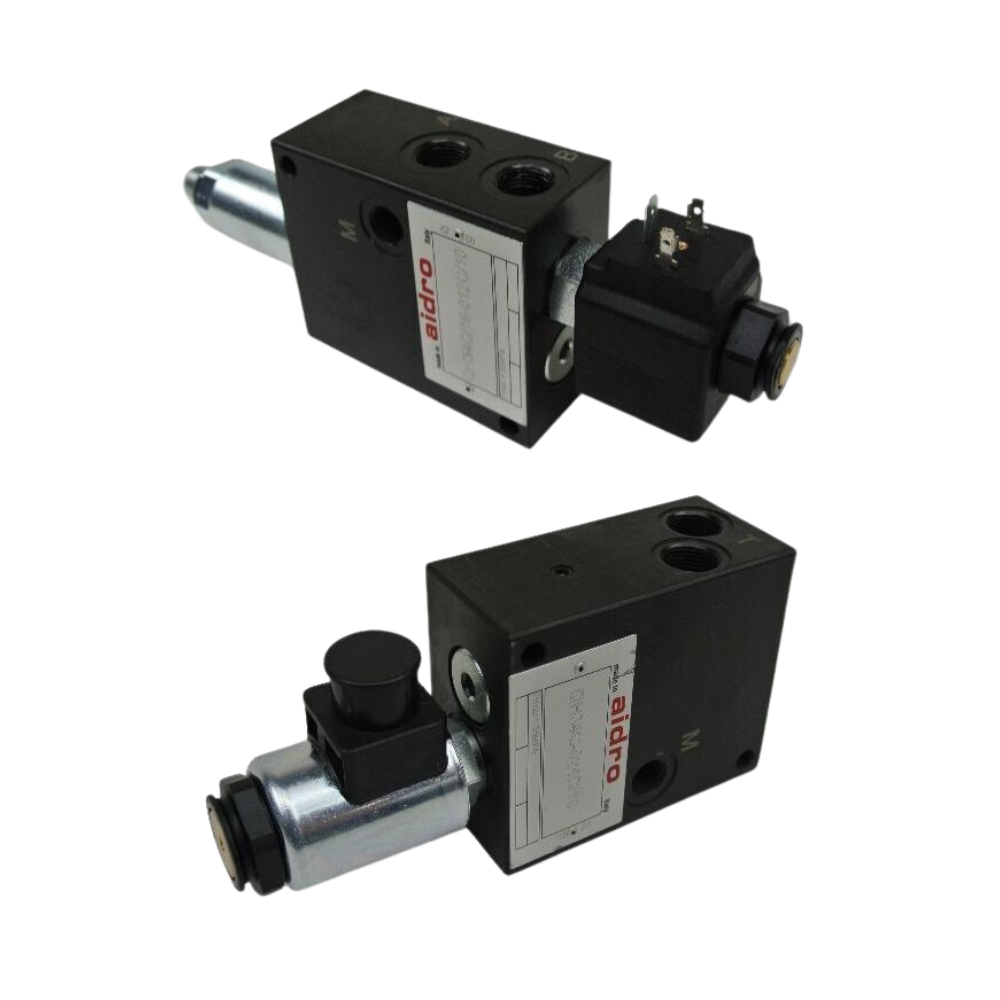

Quick Hitch Valves

Quick hitch valves are for the shifting of excavator quick hitch cylinders.
Clamp force is at reduced pressure, whilst unclamp is at full system pressure.

Construction Steel Body with 12v and 24v DC option | 1/4" BSPP ports | Max flow 20 LPM

Max inlet pressure 350 bar | Regulated pressure 50-160 bar . Includes LED Din Plug

Includes 12 or 24 volt DC Solenoid coil with Din plug 12 / 24 VOLT = 1.6 AMPS

Best regards,

Hydraulic.Online

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
