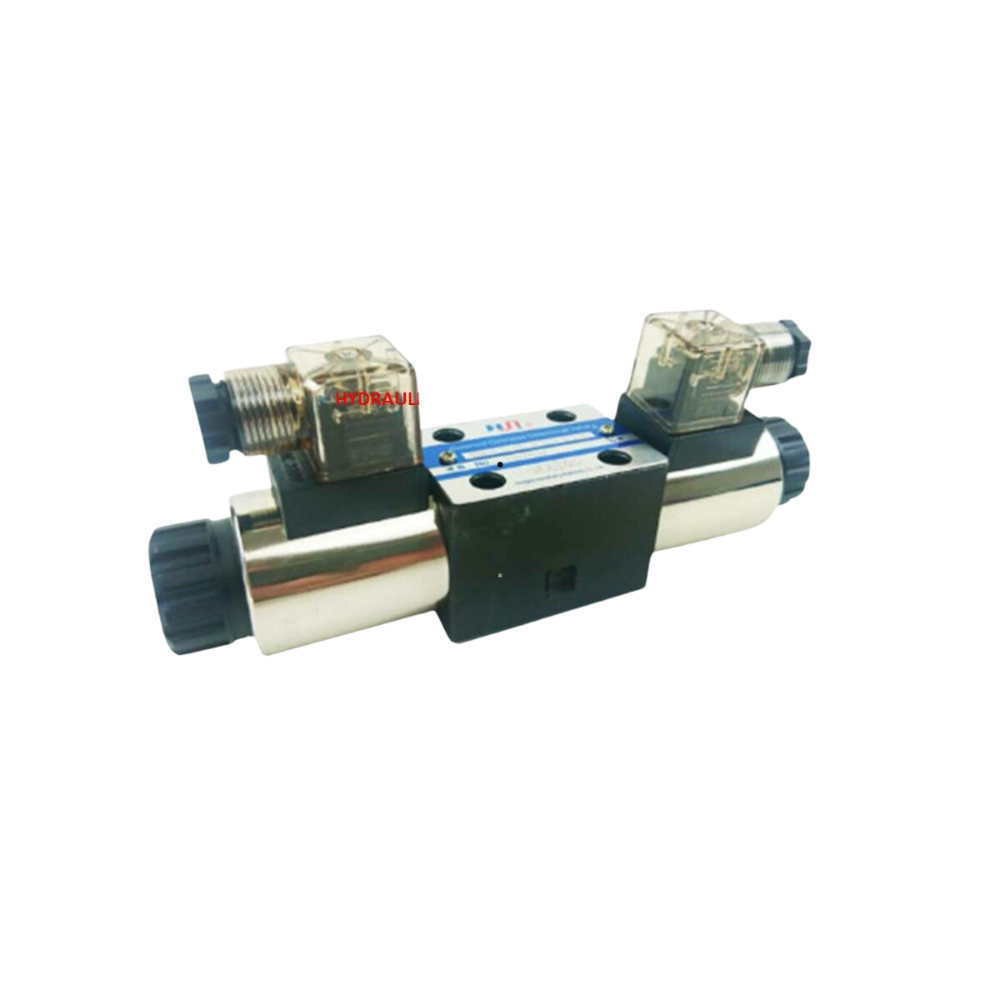

CETOP 5 Hydraulic Solenoid Actuated Directional Flow Control Valve flows 80 - 100 Lt/min

These are quality CETOP 5 Electric Solenoid Operated Directional valves.

These are made to a worldwide standard size & bolt holes.

CETOP 5 solenoid valves are solenoid operated and control the start, stop, and direction of the oil flow in the hydraulic circuit.

It comes complete with solenoids & DIN plugs & bolts.

Please note; this listing is ONLY for a Cetop 5 valve, you will require a 'subplate' if intending to make a free-standing control valve.

See other listings. Click Here Subplates for Cetop 3 and 5 valves

This is a simple swap in / out to replace your faulty/old Cetop 5.

Specifications

• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 1
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = 80 liters/min
• Max Working Pressure = 210 Bar (3,000 PSI)
• Spool Type = Cylinder Spool (Closed Centres), Open, Float, and Tandem Centres are also available at no extra cost,
• Spool Movement = Electric Solenoid Coil with illuminated LED din plugs, Spring Return to Center.
• Solenoid Coil Voltage 12 Volts DC 24 V DC or 240 AC
• Operating temperature range: -20 °C to + 80°C
