Name: SAE Code 61 Flange Straight | 100R15 Non-Skive Hose Tail
Brand: Taipan Australia
SKU: HT6-F61
Price: 50.79 AUD
Availability: InStock

Hydraulic Hose Fitting Crimp On 6000 psi Code 61 Flange Straight

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°

Product Details

Brand: Taipan Australia

Weight: 0.50 kg

Code 61 Flange Hydraulic Hose Fitting for 6000 psi (420 bar) SAE 100R 15 Hydraulic Hose.

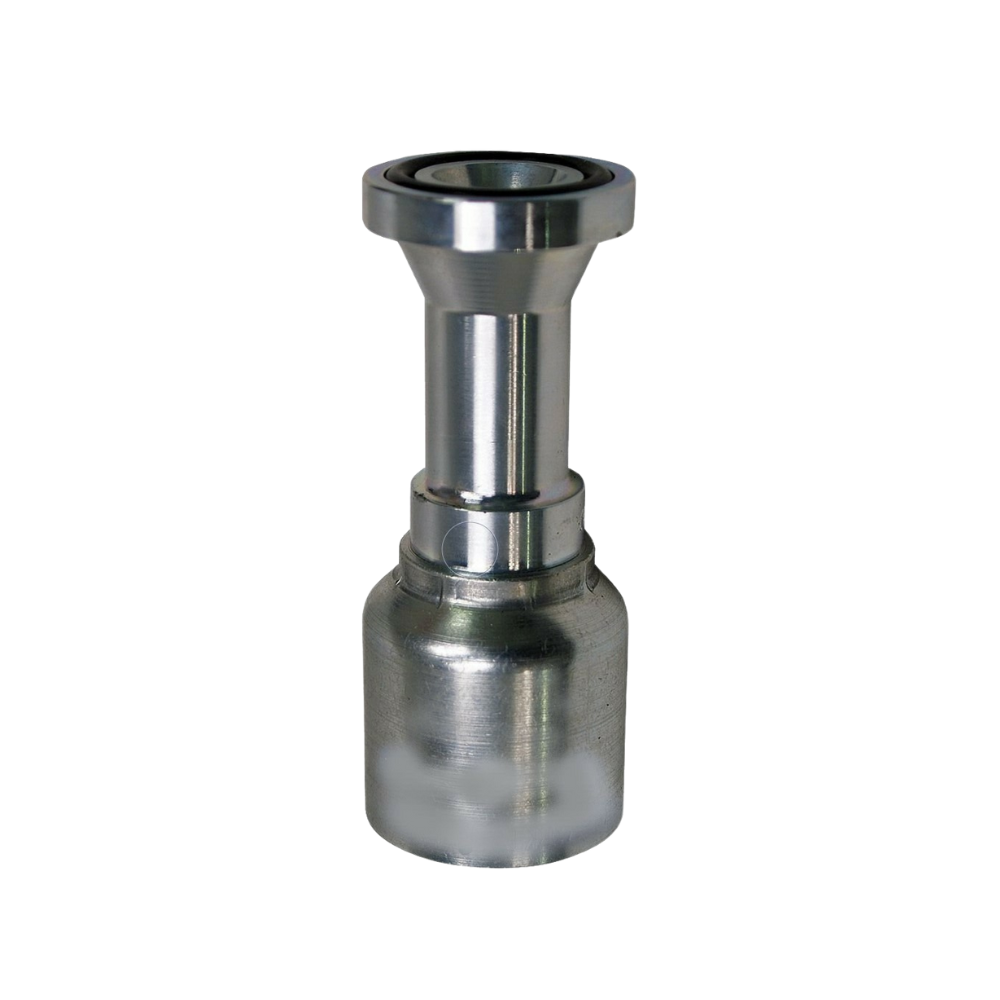

The N Series SAE Code 61 Flange is a premium, one-piece "Crimp On" hydraulic hose tail engineered specifically for ultra-high-pressure applications.

Manufactured to stringent standards, these fittings are designed for use with SAE 100R15 multi-spiral hydraulic hose, supporting working pressures up to 425 bar (6,164 psi).

Featuring a Non-Skive design:, these fittings allow for immediate assembly without the need to strip the outer cover of the hose, ensuring structural integrity and reduced assembly time.

While the hose itself is rated for ultra-high pressure, the Code 61 flange interface is a standard medium-pressure connection, providing a versatile solution for heavy-duty plant and industrial machinery.

Application: Very high-pressure hose fittings (with medium pressure SAE Code 61 Round Flange to fit Non-Skive SAE 100R15 6100 psi (420 bar) multi-spiral hydraulic hose.

Specifications:
Non-Skive Ultra-High Pressure Crimp-On Hose Tails SAE CODE 61 Flange.
Designed to be used with 2 piece, 2 bolt, flange clamps.

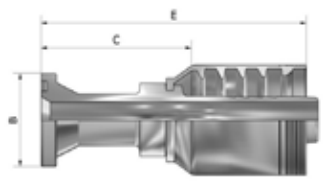

Part Number	Hose I.D. (Inch)	Flange Size (Inch)	Flange Dia B (mm)	Tail-Growth C (mm)	Overall Length E (mm)
N10F6110	5/8"	5/8"	34	62.9	90.6
N12F6112	3/4"	3/4"	38.1	67.8	120
N12F6116	3/4"	1"	44.5	54.3	106.5
N16F6116	1"	1"	44.5	70.8	124.8
N16F6120	1"	1 1/4"	50.8	43.5	97.5
N20F6120	1 1/4"	1 1/4"	50.8	86.1	151
N20F6124	1 1/4"	1 1/2"	60.3	71.8	136.7
N24F6124	1 1/2"	1 1/2"	60.3	104	177
N24F6132	1 1/2"	2"	71.2	71.9	144.9
NP32F6132	2"	2"	71.2	—	—

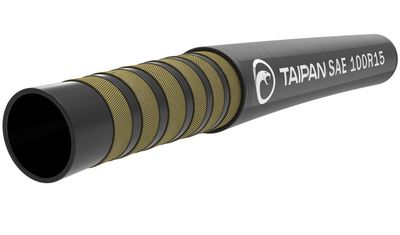

Click Here for Matching MDG41 Compliant Multispiral Hose

Click here for Longer lengths of 100R15 at Sharper prices.

Compliance Standards: MDG41 & AS 2435 Matched System Guarantee

To ensure the highest level of operational safety and to meet the stringent requirements of MDG41 (Mechanical Design Guideline 41) and AS 2435 (Hydraulic Hose Assemblies), we exclusively provide and always recommend matched high-pressure hose and hose fitting systems. This professional commitment applies to all individual components we sell, as well as our custom-made hose assemblies.

Both Australian Standards and mining guidelines mandate that the hose, fitting, and ferrule be laboratory-tested together as a unified system to prevent catastrophic failure or fluid injection injuries. We do not support "mixing and matching" brands; using incorrect swage dimensions on ultra-high-pressure SAE 100R15 lines (rated to 420 bar / 6100 psi) significantly increases the risk of hose blow-offs and is a breach of site safety protocols. We will always recommend and provide the specific high-pressure hose that is manufactured to match the fittings we sell, ensuring a fully engineered N Series non-skive assembly.

Technician’s Advice

When installing new SAE Code 61 or Code 62 Flange fittings, it is highly recommended that the two-piece flange clamp sets are also replaced.
Over time, clamps can suffer from "bowing" or stress fatigue, and even bruising which prevents even pressure distribution across the flange face.
Always ensure the O-ring is seated correctly and that the four bolts are tightened in a cross-pattern to the correct torque.

Failure to replace worn clamps can lead to premature O-ring failure and high-pressure leaks.

Please send us a message for more information.
Email: click here to send us an email

Phone: 07 5563 1982 or 1300 1 HOSES

Hours: 8 am to 4 pm Monday - Friday, QLD time excluding public holidays
If you have any questions please don’t hesitate to contact us
Best regards,
Hydraulic.Online
