Gates 1" Inch 6,000 psi (413 bar) Isobaric Multi Spiral Hydraulic Hose Assemblies Made to your Specific Requirements with your Choice of 2 Piece High pressure hose ends in many thread and flange options.

Made with "Gates" 1" inch 16EFG6K, 6,000 psi 413 bar "Isobaric" multi spiral Hydraulic hose
and crimped on "matched" Heavy Duty 2 Piece Hose fittings available in the following Thread and Flange Types in Straight 45 and 90 swept bend elbows.

• BSP Male of Female ,
• CAT Flange
• Code 61 or 62 Flange,
• JIC Male or Female
• Metric Light and Heavy Female
• ORFS Female

In your choice of Straight or 45 or 90° swept bend elbows.

Please Note Starting Price includes 0.5 m of Hose, two High Pressure Hose Crimps, and labour to measure, cut, assemble and pack.

Please select a Hose length that is closest to your required Hose length
For Example
If your finished hose length is 2.3 meters select the next length up from the list in this case it will 2.5 m.
When ordering hose leave us a note of your required hose length.
Please bearing in mind that 45 and 90 elbows length is measured from
the middle of the port on the elbow fitting see attached images.

NOTE If Ordering hose assemblies with Bends at Both Ends, Orientation must be specified in the the Order Notes at Check out.

All Hose, Fittings and assemblies are Guaranteed.

All Items are made in North America.

See Example Hose Below
3.5-meter hose cut length complete with
Two JIC Female Hose ends.
Application: Very high-pressure hose, with high performance and half bend radius of the Standard 413 bar (6,000 psi) Isobaric Multispiral Hydraulic Hose.

RECOMMENDED FOR Extremely high–pressure, high–impulse applications such as hydrostatic transmissions.

EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications: and performance requirements of EN 856 4SP (–6, –8, –10 and –12), EN 856 4SH (–12,–16, and –20) and ISO 3862 Type R15 (–6, –8, –10, –12, –16, –24). Compatible with biodegradable hydraulic fluids like polyol ester, polyglycol and vegetable oil as well as standard petroleum–based fluids. Available in 121' through 200' continuous lengths.

TUBE Black, oil resistant, synthetic rubber (Nitrile). See Hose Stock Characteristics.

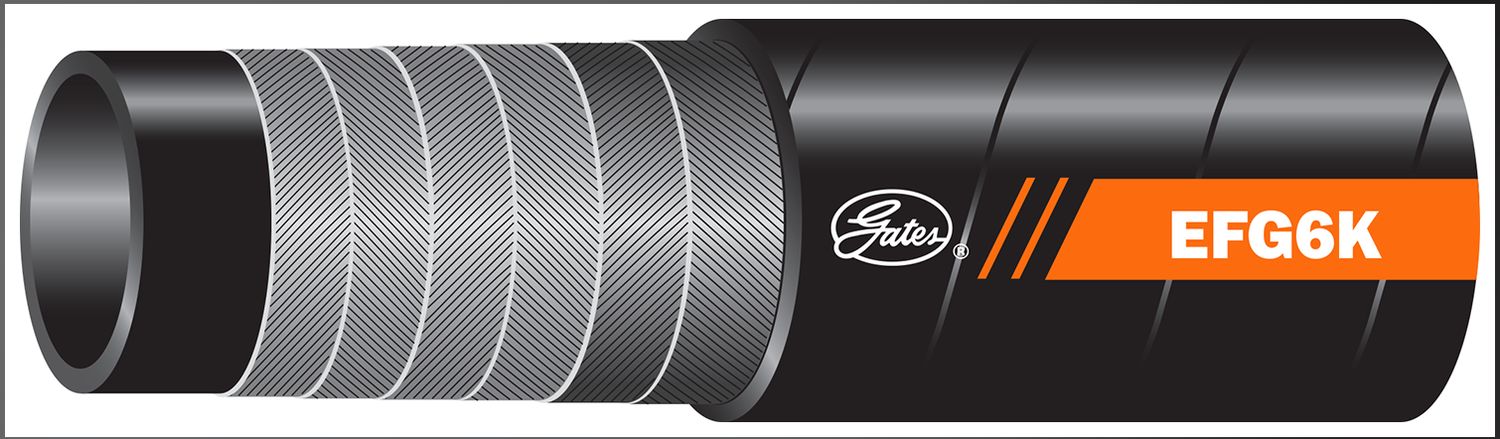

REINFORCEMENT Four (six for –20, –24 and –32) alternating layers of spiraled, high–tensile steel.

COVER Black, oil resistant, synthetic rubber (Polychloroprene), with color coded lay line.
Also available with unique abrasion resistant MegaTuff® cover.

Contact Us for Availability.

TEMPERATURE RANGE –40°F to +250°F (–40°C to +121°C). For water emulsions see Temperature Limits Table.

For Biodegradable Hydraulic Fluids. Meets Flame Resistance Acceptance Designation "MSHA 2G". Tested to Industry Leading 1,000,000 impulse cycles.

• Description: 16EFG6K
• Inside Diameter: 25.4 mm (1" inch)
• Working Pressure: 413 bar (6,000 psi)
• Burst Pressure 1,652 bar (24,000 psi)
• Min. Bend Radius 150 mm (6.00" inches)
• Standard Reel Length: 30.48 Metres

Need Longer Lengths or Other Hose Ends and Jump Sizes?

All are Available on Request Please call QLD (07) 5563 1982 or 1300 1 HOSES

or email us at sales@mhfgc.com.au

In this listing are many options: including Straight 45° and 90 elbows in BSP, CAT Flanges, CODE 61 and 62, JIC, Metric Light & Heavy, and ORFS.
