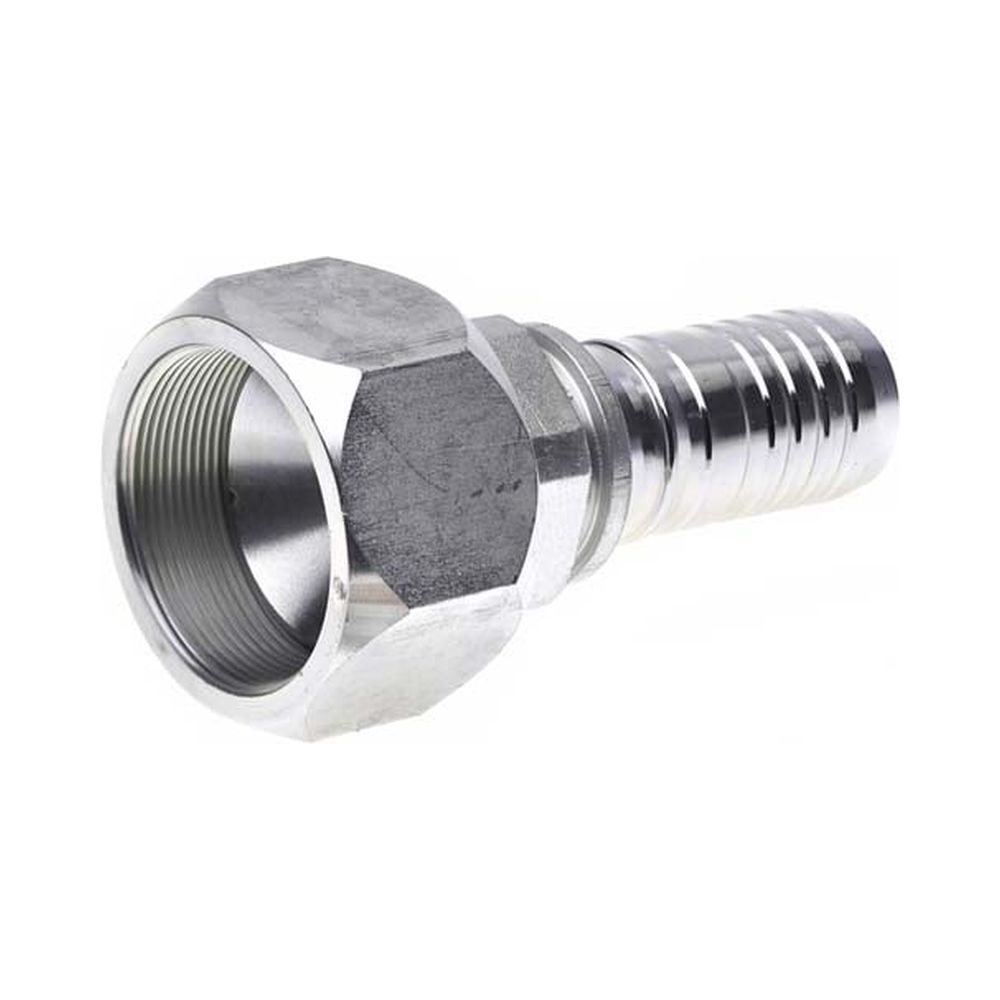

Gates GlobalSpiral JIC 37° Flare Female Multispiral Hose Tail

Name: Gates GlobalSpiral JIC 37° Flare Female Multispiral Hose Tail
Brand: Gates
SKU: HTM-JIF-GA
Price: 15.26 AUD
Availability: InStock

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/JIC Multispiral Hose Tails - Gates

SKU HTM-JIF-GA

AU$15.26

Configuration

Please choose

High-Pressure N Series JIC Female 37° Swivel Straight | Non-Skive SAE 100R15 Multi-Spiral Hose Fitting

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Gates GlobalSpiral JIC 37° Flare Female Multispiral Hose Tail

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/JIC Multispiral Hose Tails - Gates

Product Details

Brand: Gates

Weight: 0.20 kg

Gates GlobalSpiral JIC 37° Flare Female Multispiral Hose Tail

Genuine Gates GlobalSpiral™ jic 37° flare female multispiral hydraulic hose fitting, engineered for 4 & 6 spiral-wire hose (SAE 100R12 / R13 / R15, EN856 4SP / 4SH) — suits Gates EFG4K, EFG5K, EFG6K, M4K & M6K spiral hose. Available as Two-Piece (stem + matched Gates ferrule) and One-Piece couplings — every option clearly labelled.

Built for excavators, dozers, drill rigs and high-pressure mining & construction hydraulics. Crimp to genuine Gates specifications for a certified, leak-free connection — crimp charts available via the download link below.

Specifications

Size	Type	Our SKU	Gates Part No	Gates Code	Barcode	L (mm)	Cut-off (mm)	Weight (kg)
(06) 3/8" x (09) 9/16"	2-Pc	HTM-JIF-0609-GA	6GS-6FJX	G20170-0606	72053437362	69.1	33.3	0.30
(08) 1/2" x (12) 3/4"	2-Pc	HTM-JIF-0812-GA	8GS-8FJX	G20170-0808	72053302516	71.9	34.5	0.49
(08) 1/2" x (14) 7/8"	2-Pc	HTM-JIF-0814-GA	8GS-10FJX	G20170-0810	72053302530	76	38.4	0.43
(06) 3/8" x (12) 3/4"	2-Pc	HTM-JIF-0612-GA	6GS-8FJX	G20170-0608	72053437379	71.1	35.3	0.32
(08) 1/2" x (17) 1-1/16"	2-Pc	HTM-JIF-0817-GA	8GS-12FJX	G20170-0812	72053442755	77	39.6	0.48
(12) 3/4" x (17) 1-1/16"	2-Pc	HTM-JIF-1217-GA	12GS-12FJX	G20170-1212	72053399226	98.3	47.2	0.86
(12) 3/4" x (21) 1-5/16"	2-Pc	HTM-JIF-1221-GA	12GS-16FJX	G20170-1216	72053399608	102.1	51.1	0.91
(10) 5/8" x (14) 7/8"	2-Pc	HTM-JIF-1014-GA	10GS-10FJXMM	G20170-1010	72053434095	93.5	43.2	0.66
(16) 1" x (21) 1-5/16"	2-Pc	HTM-JIF-1621-GA	16GS-16FJX	G20170-1616	72053297201	109.2	52.6	1.25
(12) 3/4" x (14) 7/8"	2-Pc	HTM-JIF-1214-GA	12GS-10FJX	G20170-1210	72053437386	98.3	47.5	0.84
(16) 1" x (26) 1-5/8"	2-Pc	HTM-JIF-1626-GA	16GS-20FJX	G20170-1620	72053297478	115.1	58.7	1.75
(10) 5/8" x (17) 1-1/16"	2-Pc	HTM-JIF-1017-GA	10GS-12FJX	G20170-1012	72053434705	95	44.7	0.70
(12) 3/4" x (19) 1-3/16"	2-Pc	HTM-JIF-1219-GA	12GS-14FJX	G20170-1214	72053399592	103.1	52.3	0.95
(20) 1-1/4" x (26) 1-5/8"	2-Pc	HTM-JIF-2026-GA	20GS-20FJX	G20170-2020	72053437393	134.4	65	2.77
(16) 1" x (17) 1-1/16"	2-Pc	HTM-JIF-1617-GA	16GS-12FJX	G20170-1612	72053396331	108	50.8	1.12
(20) 1-1/4" x (30) 1-7/8"	2-Pc	HTM-JIF-2030-GA	20GS-24FJX	G20170-2024	72053474725	136.9	65.8	3.12
(20) 1-1/4" x (21) 1-5/16"	2-Pc	HTM-JIF-2021-GA	20GS-16FJX	G20170-2016	72053465198	129	57.9	2.24
(24) 1-1/2" x (30) 1-7/8"	1-Pc	HTMO-JIF-2430-GA	24GSM-24FJX	G24170-2424	770075392880	172.2	77.2	4.25
(32) 2" x (40) 2-1/2"	1-Pc	HTMO-JIF-3240-GA	32GSM-32FJX	G23170-3232	770075524670	205.1	91.1	7.75

Download Gates crimp dimensions

Why buy from Hydraulic.Online?

100% genuine Gates GlobalSpiral™
Barcodes & Gates part numbers listed for every size
Fast dispatch Australia-wide

Express shipping Australia-wide. We dispatch daily to New South Wales, Victoria, Queensland, Western Australia, South Australia, Tasmania, the Australian Capital Territory and the Northern Territory – Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin, plus regional and remote sites.

Downloads

📄 Crimp Dimensions Chart (PDF)
