Name: SAE Code 62 Flange Straight | 100R15 High Pressure Hose Tail
Brand: Taipan Australia
SKU: HT6-F62
Price: 65.61 AUD
Availability: InStock

Hydraulic Hose Fitting Crimp On 6000 psi Code 62 Flange Straight

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°

Product Details

Brand: Taipan Australia

Weight: 0.50 kg

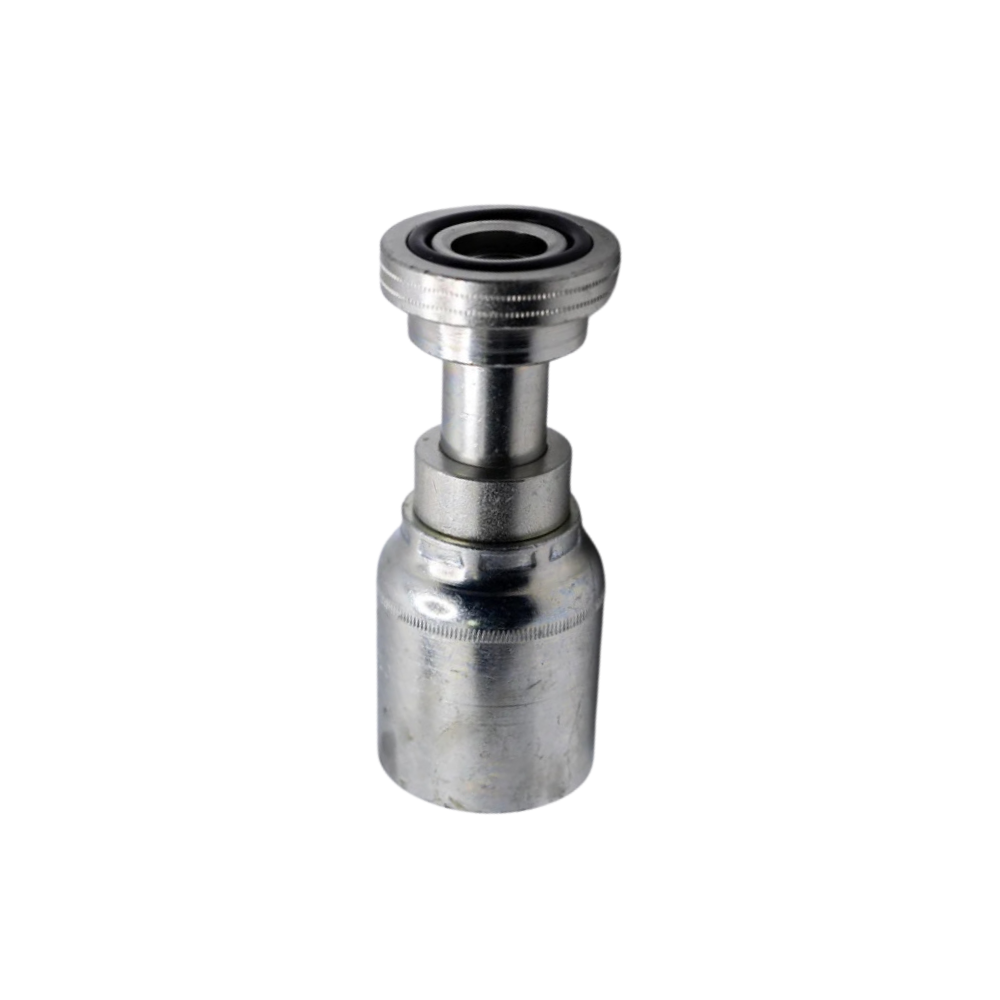

Ultra High pressure one piece Hydraulic Hose fitting with SAE Code 62 Flange,
6,000 PSI working pressure, suitable for SAE 100R15 Multi-Spiral Non-Skive Hydraulic Hose.

The N Series SAE Code 62 Flange: is a professional-grade, one-piece "Crimp On" hydraulic hose tail specifically engineered for the most demanding ultra-high-pressure environments.

These fittings are manufactured to match the performance requirements of SAE 100R15 multi-spiral hydraulic hose, comfortably handling working pressures up to 420 bar (6,100 psi).

Utilising a Non-Skive design:, these fittings allow for a high-integrity connection without requiring the removal of the hose's outer cover.

The Code 62 series features a thicker flange head and larger bolt pattern compared to the Code 61 series, making it the industry standard for high-impulse, heavy-duty hydraulic systems where safety and leak prevention are paramount.

Technical Specifications

Part Number	Hose I.D. (Inch)	Flange Size (A)	Flange Dia (B) mm	Tail-Growth (C) mm	Overall Length (E) mm
N12F6212	3/4"	3/4"	41.3	71.9	124.4
N12F6216	3/4"	1"	47.6	46	98.5
N16F6212	1"	3/4"	41.3	89.5	143.5
N16F6216	1"	1"	47.6	85.3	139.3
N16F6220	1"	1 1/4"	54	54.3	108.7
N20F6216	1 1/4"	1"	47.6	91.5	156.4
N20F6220	1 1/4"	1 1/4"	54	92.8	158.1
N20F6224	1 1/4"	1 1/2"	63.5	65.4	130.7
N24F6220	1 1/2"	1 1/4"	54	93	172
N24F6224	1 1/2"	1 1/2"	63.5	116	190
N24F6232	1 1/2"	2"	79.4	86.4	159.4
NP32F6232	2"	2"	79.4	136.5	219.4

Click Here for Matching MDG41 Compliant Multispiral Hose

Click here for Longer lengths of 100R15 at Sharper prices.

Compliance Standards: MDG41 & AS 2435 Matched System Guarantee

To ensure the highest level of operational safety and to meet the stringent requirements of MDG41 (Mechanical Design Guideline 41) and AS 2435 (Hydraulic Hose Assemblies), we exclusively provide and always recommend matched high-pressure hose and hose fitting systems. This professional commitment applies to all individual components we sell, as well as our custom-made hose assemblies.

Both Australian Standards and mining guidelines mandate that the hose, fitting, and ferrule be laboratory-tested together as a unified system to prevent catastrophic failure or fluid injection injuries. We do not support "mixing and matching" brands; using incorrect swage dimensions on ultra-high-pressure SAE 100R15 lines (rated to 420 bar / 6100 psi) significantly increases the risk of hose blow-offs and is a breach of site safety protocols. We will always recommend and provide the specific high-pressure hose that is manufactured to match the fittings we sell, ensuring a fully engineered N Series non-skive assembly.

Technician’s Advice

When upgrading or replacing SAE Code 62 Flange fittings, it is vital to replace the two-piece flange clamp sets.

Because Code 62 systems operate at significantly higher pressures than Code 61, the clamps are subject to extreme mechanical stress. Reusing old clamps that have "stretched" or suffered from microscopic stress fractures and bruising can result in an uneven seal on the O-ring, leading to catastrophic failure.

Always ensure you are using Grade 12.9 high-tensile bolts and tighten them to the correct torque specification in a diagonal sequence.
