Every hydraulic hose assembly on this page is made to order in our workshop - genuine Gates hose, cut to the exact end-to-end measurement you give us, with the fittings you choose crimped on both ends, then pressure-tested, capped and tagged before it ships. One piece or a thousand.

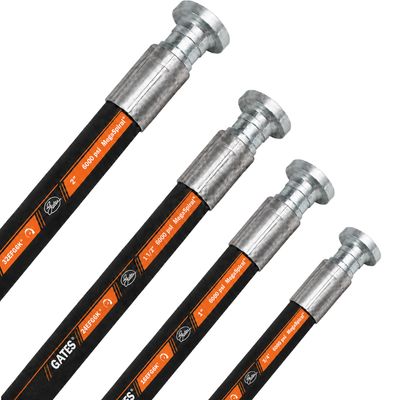

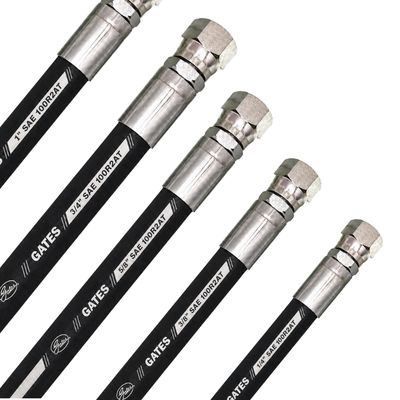

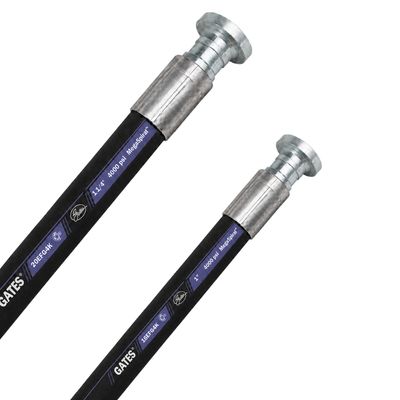

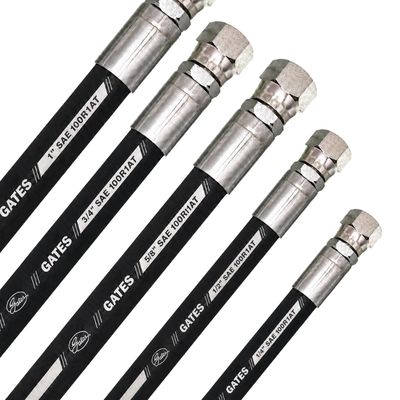

Which hose do I need? CR1 one-wire for return lines, drains and low-pressure supply. CR2 two-wire for pump pressure lines, rams and implement circuits - most machines. EFG4K four-spiral at a constant 4,000 psi for high-impulse excavator and hydrostatic work. EFG6K MegaSpiral at a constant 6,000 psi for hammers, crushers, drill rigs and hydrostatic transmissions.

All four ranges carry MSHA flame-resistant covers and are backed by official Gates documentation, linked inside every listing. Not sure what thread you have? Print the chart below, lay your old fitting on it and match it up - or send us photos and our technicians will identify it for you.

Two things worth knowing before you order

Everything here is sized in millimetres - bore, bend radius and end-to-end length - with the imperial size in brackets, because that is how gear gets measured in Australia. And every assembly is built with one angled end at most. A hose bends in one plane and will not be twisted, so two fixed elbows can never be lined up properly without the machine in front of us. Put your elbow on End 1, then screw a 90° or 45° adaptor onto the straight end - it rotates on its thread, so you set the angle on the machine and can change it later.

⭐ Free Thread Identification Chart - print and measure
