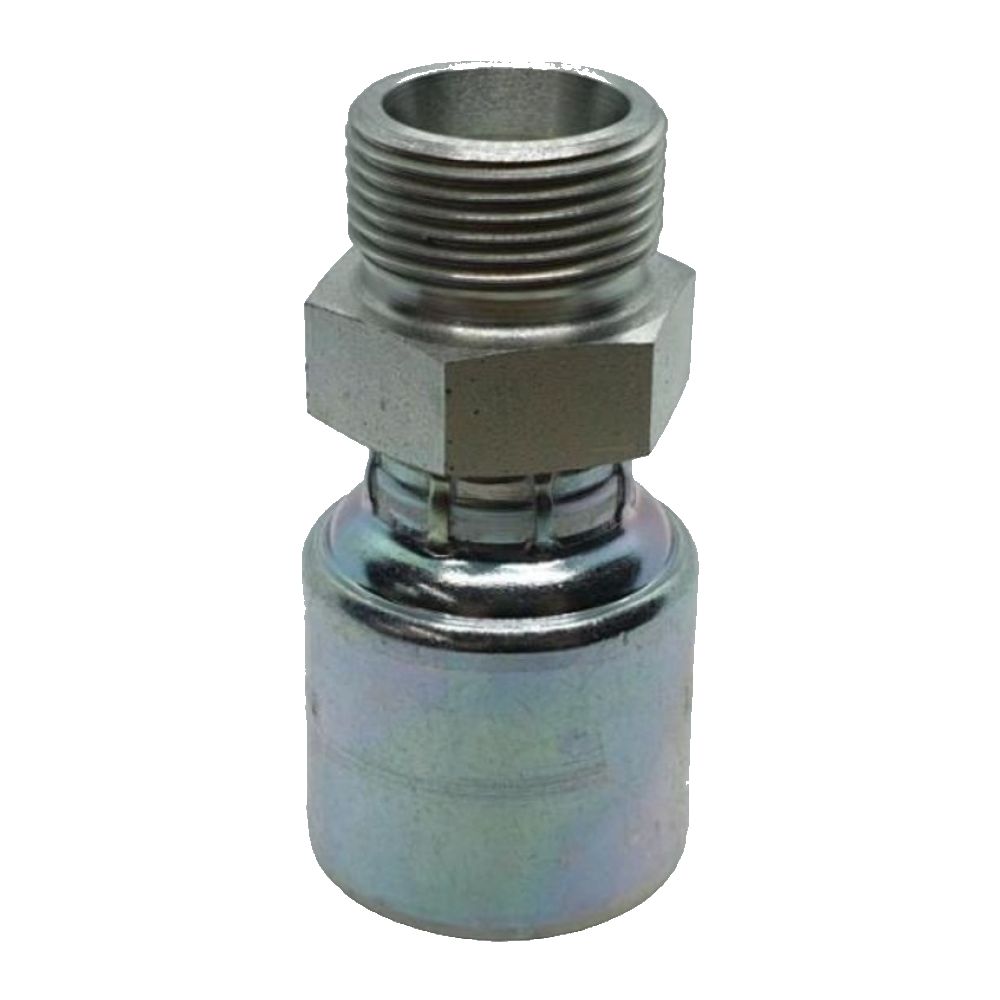

Hose Tail One Piece Metric Heavy Male Straight - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Hydraulic Hose Fittings Straight, 90° & 45°/Metric One Piece Hose Tails - Gates
Product Details
Brand: Gates
Weight: 0.13 kg
Gates One Piece Metric Din Heavy Male Hydraulic Hose Tail
Genuine Gates one piece metric DIN heavy male hydraulic hose fitting for SAE 100R1 (1 wire) & 100R2 (2 wire) braided hydraulic hose. MegaCrimp® one piece design crimps straight onto the hose – no ferrule required – with a 24° DIN cone seat for a certified, leak-free seal.
Ideal for European and Asian machinery – excavators, tractors, loaders and construction equipment. Precision CNC-formed, zinc-plated carbon steel, crimped to genuine Gates specifications.
Why buy from Hydraulic.Online?
- 100% genuine Gates MegaCrimp one piece coupling
- Suits 1 & 2 wire braided hose
- No ferrule required
- Full size range – select above
- Bulk discounts auto-applied
- Fast dispatch Australia-wide
Need help choosing? Contact Hydraulic.Online. Gates crimp chart available to download.
Gates Part Numbers & Specifications
| Size | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Hex (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (04) 1/4" x M16 | HTO-MHM-0416-GA | 4G-8MDH | G25715-0408 | 72053447859 | — | — | — | 0.13 |
| (04) 1/4" x M18 | HTO-MHM-0418-GA | 4G-10MDH | G25715-0410 | 72053449679 | — | — | — | 0.15 |
| (06) 3/8" x M18 | HTO-MHM-0618-GA | 6G-10MDH | G25715-0610 | 72053206487 | — | — | — | 0.20 |
| (06) 3/8" x M20 | HTO-MHM-0620-GA | 6G-12MDH | G25715-0612 | 72053206500 | — | — | — | 0.21 |
| (06) 3/8" x M22 | HTO-MHM-0622-GA | 6G-14MDH | G25715-0614 | 72053206517 | — | — | — | 0.23 |
| (08) 1/2" x M24 | HTO-MHM-0824-GA | 8G-16MDH | G25715-0816 | 72053206524 | — | — | — | 0.29 |
| (10) 5/8" x M30 | HTO-MHM-1030-GA | 10G-20MDH | G25715-1020 | 72053206555 | — | — | — | 0.48 |
| (12) 3/4" x M30 | HTO-MHM-1230-GA | 12G-20MDH | G25715-1220 | 72053497427 | — | — | — | 0.55 |
| (12) 3/4" x M36 | HTO-MHM-1236-GA | 12G-25MDH | G25715-1225 | 72053842029 | — | — | — | 0.78 |
| (16) 1" x M36 | HTO-MHM-1636-GA | — | — | — | — | — | — | — |
| (16) 1" x M42 | HTO-MHM-1642-GA | 16G-30MDH | G25715-1630 | 72053604764 | — | — | — | 1.06 |
