Hose Tail One Piece Metric Heavy Female 45° Swept - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Hydraulic Hose Fittings Straight, 90° & 45°/Metric One Piece Hose Tails - Gates
SKU HTO-MHF-45S-0416-GA
AU$20.56
Size
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

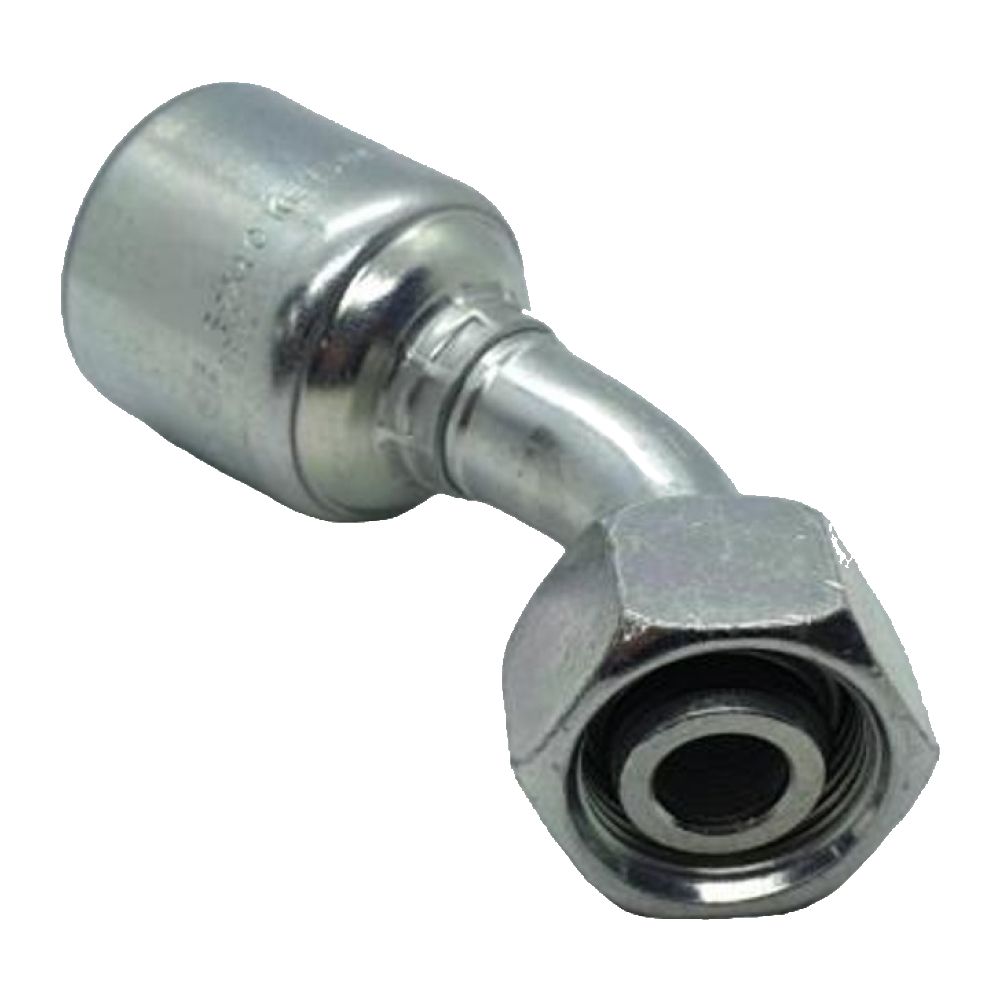

Hose Tail One Piece Metric Heavy Female 45° Swept - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Hydraulic Hose Fittings Straight, 90° & 45°/Metric One Piece Hose Tails - Gates
Product Details
Brand: Gates
Weight: 0.16 kg
Gates One Piece Metric Din Heavy Female Swivel 45° swept Hydraulic Hose Tail
Genuine Gates one piece metric DIN heavy female swivel 45° swept hydraulic hose fitting for SAE 100R1 (1 wire) & 100R2 (2 wire) braided hydraulic hose. MegaCrimp® one piece design crimps straight onto the hose – no ferrule required – with a 24° DIN cone seat for a certified, leak-free seal.
Ideal for European and Asian machinery – excavators, tractors, loaders and construction equipment. Precision CNC-formed, zinc-plated carbon steel, crimped to genuine Gates specifications.
Why buy from Hydraulic.Online?
- 100% genuine Gates MegaCrimp one piece coupling
- Suits 1 & 2 wire braided hose
- No ferrule required
- Full size range – select above
- Bulk discounts auto-applied
- Fast dispatch Australia-wide
Need help choosing? Contact Hydraulic.Online. Gates crimp chart available to download.
Gates Part Numbers & Specifications
| Size | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Hex (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (04) 1/4" x M16 | HTO-MHF-45S-0416-GA | 4G-8FDHORX45 | G25725-0408 | 72053699975 | — | — | — | 0.16 |
| (04) 1/4" x M18 | HTO-MHF-45S-0418-GA | 4G-10FDHORX45 | G25725-0410 | 770075466062 | — | — | — | 0.17 |
| (04) 1/4" x M20 | HTO-MHF-45S-0420-GA | — | — | — | — | — | — | — |
| (06) 3/8" x M18 | HTO-MHF-45S-0618-GA | 6G-10FDHORX45 | G25725-0610 | 770075466079 | — | — | — | 0.25 |
| (06) 3/8" x M20 | HTO-MHF-45S-0620-GA | 6G-12FDHORX45 | G25725-0612 | 72053206302 | — | — | — | 0.26 |
| (06) 3/8" x M22 | HTO-MHF-45S-0622-GA | 6G-14FDHORX45 | G25725-0614 | 770075613992 | — | — | — | 0.30 |
| (08) 1/2" x M22 | HTO-MHF-45S-0822-GA | 8G-14FDHORX45 | G25725-0814 | 72053844764 | — | — | — | 0.30 |
| (08) 1/2" x M24 | HTO-MHF-45S-0824-GA | 8G-16FDHORX45 | G25725-0816 | 72053206319 | — | — | — | 0.35 |
| (10) 5/8" x M30 | HTO-MHF-45S-1030-GA | 10G-20FDHORX45 | G25725-1020 | 72053206333 | — | — | — | 0.62 |
| (12) 3/4" x M36 | HTO-MHF-45S-1236-GA | 12G-25FDHORX45 | G25725-1225 | 72053545319 | — | — | — | 1.15 |
| (16) 1" x M42 | HTO-MHF-45S-1642-GA | — | — | — | — | — | — | — |
Swipe sideways on mobile.
