Hydraulic Hose Fitting Crimp On 6000 psi BSP Female Straight

Name: BSP Female Straight 60° Swivel | SAE 100R15 Non-Skive Tail
Brand: Taipan Australia
SKU: HT6-BSF
Price: 34.64 AUD
Availability: InStock

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°

SKU HT6-BSF-1212

AU$34.64

On Sale

was ~~AU$49.20~~ Save 30%

High-Pressure N Series BSPP Female Swivel Straight 60° Cone | Non-Skive 100R15 Multi-Spiral Fitting

Hose Bore and Tread Size

Hose Size (10) 5/8" | Thread Size (08) 1/2"

Hose Size (10) 5/8" | Thread Size (12) 5/8"

Hose Size (10) 5/8" | Thread Size (12) 3/4"

Hose Size (12) 3/4" | Thread Size (12) 3/4"

Hose Size (16) 1" | Thread Size (16) 1"

Hose Size (16) 1" | Thread Size (20) 1 1/4"

Hose Size (20) 1 1/4" | Thread Size (20) 1 1/4"

Hose Size (24) 1 1/2" | Thread Size (24) 1 1/2"

Hose Size (32) 2" | Thread Size (32) 2"

In stock: 20 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Hydraulic Hose Fitting Crimp On 6000 psi BSP Female Straight

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°

Product Details

Brand: Taipan Australia

Weight: 0.30 kg

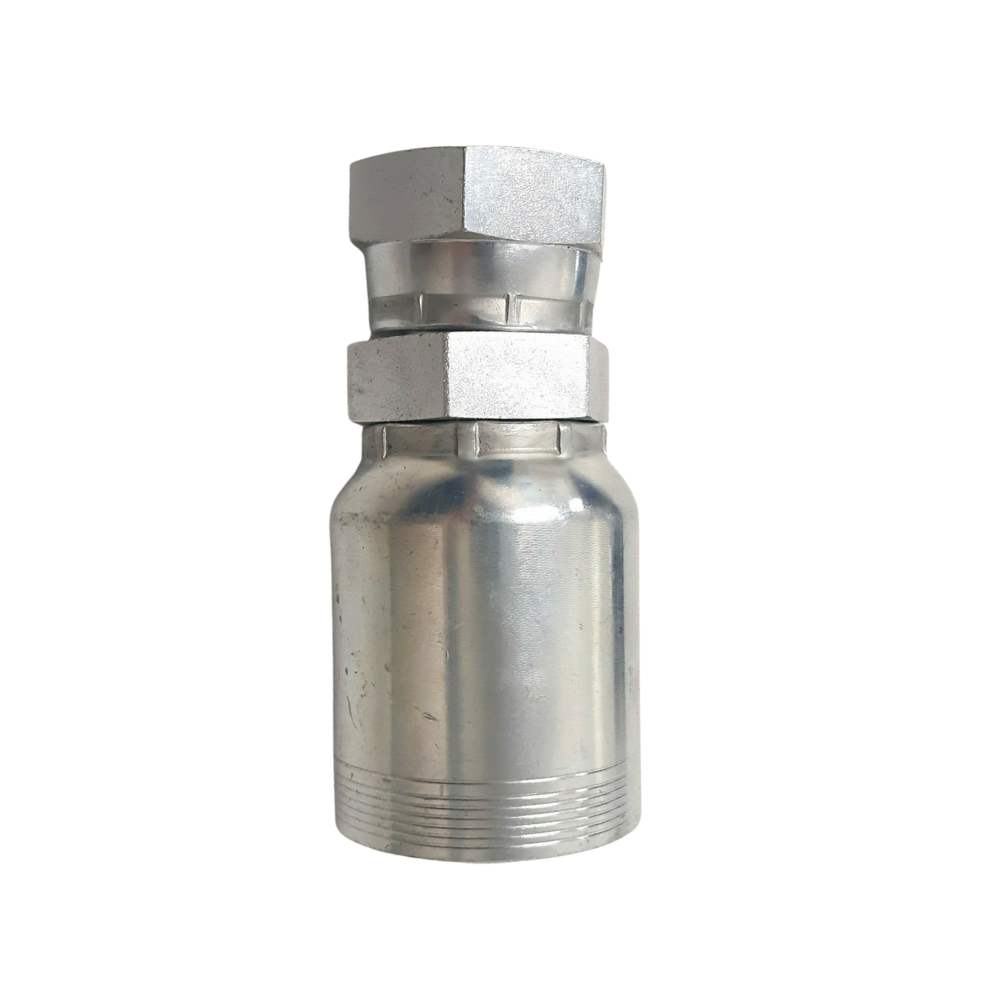

Professional Grade BSP Female 60° Cone "Crimp On" One Piece Hydraulic Hose Tail,

Designed for: SAE 100R15 Ultra High Pressure 6100 psi (420 bar) Multi-Spiral Hydraulic Hose

This premium range of one-piece "Crimp On" hydraulic hose tails is designed specifically for demanding high-pressure applications.

Manufactured in South Korea: to exacting standards, these fittings are a direct equivalent to "Parker" style non-skive ultra-high pressure components.

The N Series design eliminates the need for skiving: (removing the outer cover of the hose), allowing for a more efficient assembly process while maintaining a working pressure rating of up to 420 bar (6,100 psi).

Featuring a BSPP (British Standard Pipe Parallel) female swivel nut with a 60° taper seat, these fittings ensure a leak-free connection under extreme vibration and pressure spikes.

Technical Specifications

Part Number	Hose I.D. (Inch)	Thread A (BSPP)	Nut Hex B (mm)	Tail Growth C (mm)	Nipple Hex D (mm)	Overall Length E (mm)
N10BF08	5/8"	1/2-14	27	33	27	64.7
N10BF10	5/8"	5/8-14	28.57	26.72	27	58.2
N10BF12	5/8"	3/4-14	36	43.2	32	74.5
N12BF12	3/4"	3/4-14	36	50	36	102.2
N16BF16	1"	1-11	41	57.9	41	111.9
N16BF20	1"	1 1/4-11	50	63.7	50	117.7
N20BF20	1 1/4"	1 1/4-11	50	71.6	50	136.5
N24BF24	1 1/2"	1 1/2-11	55	84.4	60	157.2
NP32BF32	2"	2-11	70	85.3	70	168.2

Click Here for Matching MDG41 Compliant Multispiral Hose

Click here for Longer lengths of 100R15 at Sharper prices.

Note: For 3/8" and 1/2" requirements, please refer to our L Series range.

Compliance Standards: MDG41 & AS 2435 Matched System Guarantee

To ensure the highest level of operational safety and to meet the stringent requirements of MDG41 (Mechanical Design Guideline 41) and AS 2435 (Hydraulic Hose Assemblies), we exclusively provide and always recommend matched high-pressure hose and hose fitting systems. This professional commitment applies to all individual components we sell, as well as our custom-made hose assemblies.

Both Australian Standards and mining guidelines mandate that the hose, fitting, and ferrule be laboratory-tested together as a unified system to prevent catastrophic failure or fluid injection injuries. We do not support "mixing and matching" brands; using incorrect swage dimensions on ultra-high-pressure SAE 100R15 lines (rated to 420 bar / 6100 psi) significantly increases the risk of hose blow-offs and is a breach of site safety protocols. We will always recommend and provide the specific high-pressure hose that is manufactured to match the fittings we sell, ensuring a fully engineered N Series non-skive assembly.

Technician’s Advice

When assembling high-pressure 4-wire or 6-wire multi-spiral hose (SAE 100R15), ensuring the correct crimp diameter is critical for safety.
These are non-skive fittings, meaning you do not need to strip the outer rubber. Ensure the hose is cut square and pushed fully home against the shoulder of the fitting before swaging. Always check for any signs of wire fatigue if reusing old hoses (not recommended).

If you prefer to have us make you the complete hose assembly, we can do that as well.
Just send us your requirements by

email to sales@mhfgc.com.au

or call us on 07 5563 1982 or 1300 1 HOSES
