3/4 " Inch 6,000 psi (415 bar) Multi Spiral Hydraulic Hose Assemblies Assembled with your Choice of Hose ends
Made to your Specific Length and Requirements.

Made with "Taipan" 6,000 psi 100R15 "Isobaric" multi spiral hose
and crimped on "matched" Heavy Duty Hose fittings in one or two piece designs.

Please Note Starting Price includes 0.5 m of Hose, two High Pressure Hose Crimps, and labour to measure, cut, assemble and pack.

Available Thread and end Options

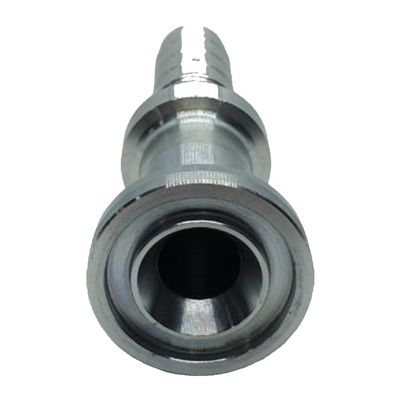

BSP, Code 61 or 62 Flange, JIC or ORFS are just some of the hose ends in your choice of Straight or 90° swept bend elbows.

Please select a Hose length that is closest to your required Hose length
For Example
If your finished hose length is 2.3 meters select the next length up from the list in this case it will 2.5 m.
When ordering hose leave us a note of your required hose length.
Please bearing in mind that 45 and 90 elbows length is measured from
the middle of the port on the elbow fitting see attached images.

NOTE If Ordering hose assemblies with Bends at Both Ends, Orientation must be specified in the the Order Notes at Check out.

All Hose, Fittings and assemblies are Guaranteed.
All Items are Made in Italy and Korea.

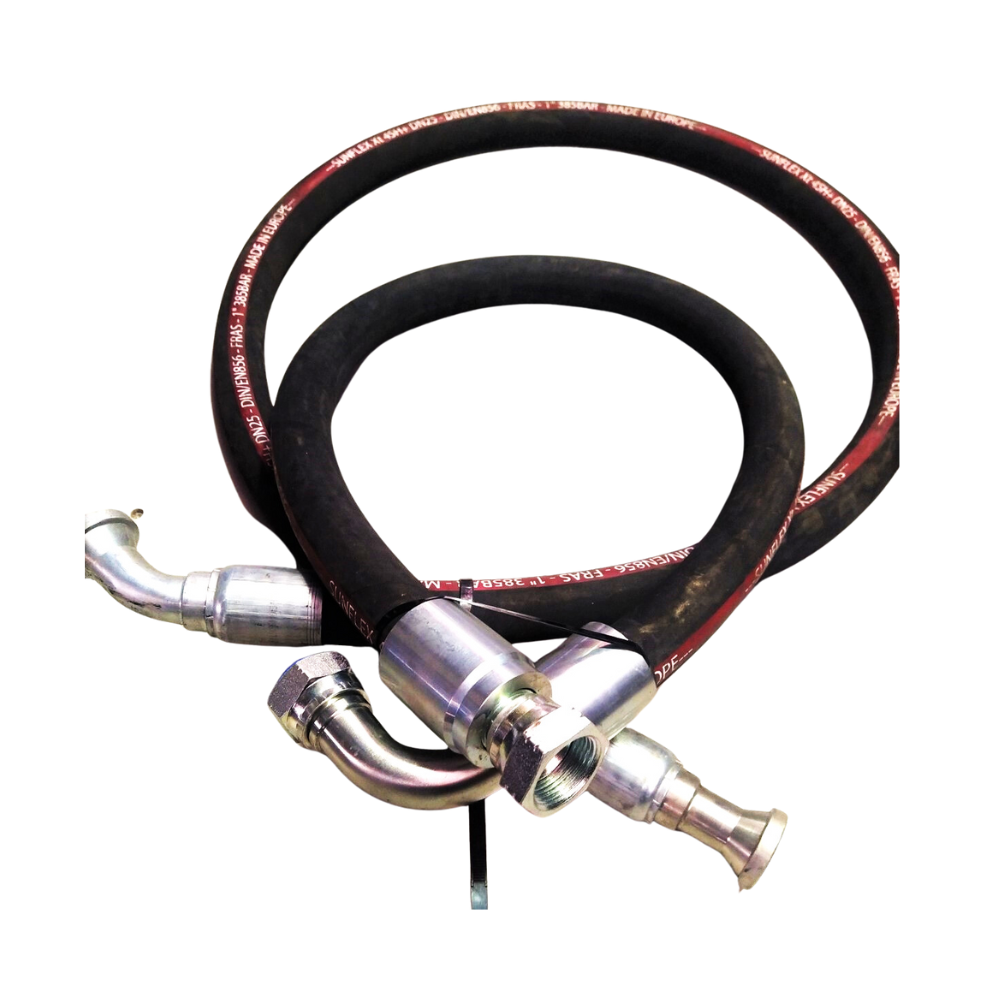

See Example Hose Below
3.5-meter hose cut length complete with
Two JIC Female Hose ends.
Application: Very high-pressure hose, with high performance and half bend radius of the Standard SAE 100R15 multispiral Hydraulic Hose.

• Hose Bore 3/4 " inch
• Type: Non-skive Multi Spiral Hose, Exceeds SAE J517 100R15.
• Working Pressure 6,100 PSI (415 bar)
• Minimum Burst Pressure 24,400 psi (1,660 bar)
• Temperature Range: -40˚C to + 121˚C (intermittent to 125˚C)
• Minimum Bend Radius 120 mm
• Weight 1.5 kg/meter
• Fittings : Ultra High-Pressure Heavy Duty "Matched" Crimp-On Fittings
• Compatible and Compliant with MDG-41 (FLUID POWER SAFETY SYSTEMS AT MINES)
• also available separately or as a complete pressure-tested Hose assembly. (Tested to 12,000 PSI)

Other Hose Ends and Jump Sizes Available on Request (please see just some of the options below)
Please call QLD (07) 5563 1982 or 1300 1 HOSES
or email us at sales@mhfgc.com.au

45° elbows in BSP, CODE 61 and 62, JIC, Metric L & S, and ORFS
Caterpillar Flanges Straight 45 and 90° Elbows

Komatsu Female Straight
Metric Heavy (S) in Straight and 90° Elbows
