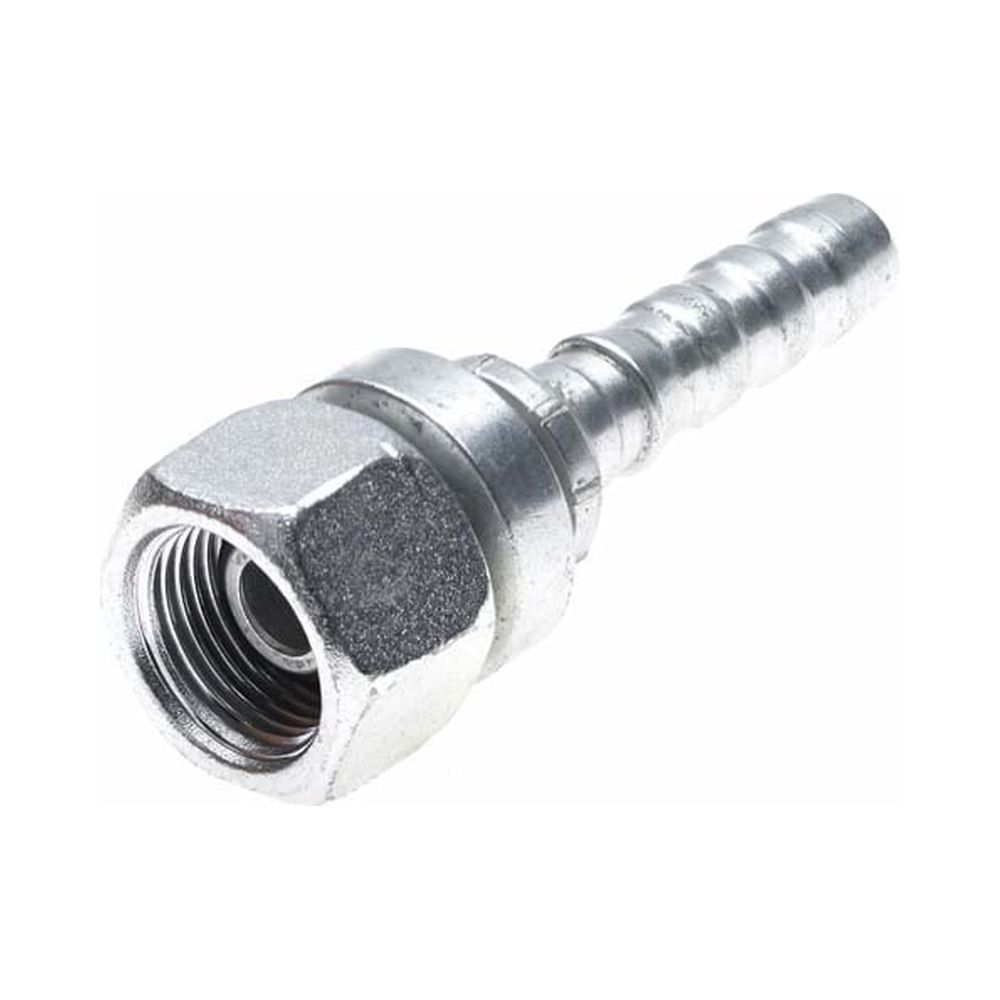

Gates GlobalSpiral BSP Swivel Female Multispiral Hose Tail
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/BSP Multispiral Hose Tails - Gates
Product Details
Brand: Gates
Weight: 0.20 kg
Gates GlobalSpiral BSP Swivel Female Multispiral Hose Tail
Genuine Gates GlobalSpiral™ bsp swivel female multispiral hydraulic hose fitting, engineered for 4 & 6 spiral-wire hose (SAE 100R12 / R13 / R15, EN856 4SP / 4SH) — suits Gates EFG4K, EFG5K, EFG6K, M4K & M6K spiral hose. Available as Two-Piece (stem + matched Gates ferrule) and One-Piece couplings — every option clearly labelled.
Built for excavators, dozers, drill rigs and high-pressure mining & construction hydraulics. Crimp to genuine Gates specifications for a certified, leak-free connection — crimp charts available via the download link below.
Specifications
| Size | Type | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (06) 3/8" x (06) 3/8" | 2-Pc | HTM-BSF-0606-GA | 6GS-6FBSPORX | G20830-0606 | 72053443899 | 59.4 | 23.6 | 0.32 |
| (08) 1/2" x (08) 1/2" | 2-Pc | HTM-BSF-0808-GA | 8GS-8FBSPORX | G20830-0808 | 72053438086 | 61 | 23.6 | 0.40 |
| (12) 3/4" x (12) 3/4" | 2-Pc | HTM-BSF-1212-GA | 12GS-12FBSPORX | G20830-1212 | 72053438093 | 86.6 | 35.6 | 0.88 |
| (10) 5/8" x (10) 5/8" | 2-Pc | HTM-BSF-1010-GA | 10GS-10FBSPORX | G20830-1010 | 770075411253 | 85.1 | 30 | 0.65 |
| (10) 5/8" x (12) 3/4" | 2-Pc | HTM-BSF-1012-GA | 10GS-12FBSPORX | G20830-1012 | 770075418313 | 85.1 | 34.8 | 1.28 |
| (12) 3/4" x (16) 1" | 2-Pc | HTM-BSF-1216-GA | 12GS-16FBSPORX | G20830-1216 | 72053940060 | 95 | 35.6 | 1.10 |
| (16) 1" x (16) 1" | 2-Pc | HTM-BSF-1616-GA | 16GS-16FBSPORX | G20830-1616 | 72053438109 | 95 | 38.6 | 1.39 |
| (06) 3/8" x (08) 1/2" | 2-Pc | HTM-BSF-0608-GA | 6GS-8FBSPORX | G20830-0608 | 770075411642 | 61 | 23.6 | 0.37 |
| (08) 1/2" x (12) 3/4" | 2-Pc | HTM-BSF-0812-GA | — | — | — | — | — | — |
| (20) 1-1/4" x (20) 1-1/4" | 2-Pc | HTM-BSF-2020-GA | 20GS-20FBSPORX | G20830-2020 | 72053510508 | 116.6 | 45.5 | 2.52 |
| (16) 1" x (20) 1-1/4" | 2-Pc | HTM-BSF-1620-GA | 16GS-20FBSPORX | G20830-1620 | 770075418344 | 83.1 | 26.2 | 1.38 |
| (24) 1-1/2" x (24) 1-1/2" | 1-Pc | HTMO-BSF-2424-GA | 24GSM-24FBSPORX | G24830-2424 | 770075417415 | 153.9 | 58.9 | 3.87 |
| (32) 2" x (32) 2" | 1-Pc | HTMO-BSF-3232-GA | 32GSM-32FBSPORX | G23830-3232 | 770075556725 | 183.9 | 70 | 8.09 |
Download Gates crimp dimensions
