Gates GlobalSpiral BSP Swivel Female 90° Swept Multispiral Hose Tail
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/BSP Multispiral Hose Tails - Gates
Product Details
Brand: Gates
Gates GlobalSpiral BSP Swivel Female 90° Swept Multispiral Hose Tail
Genuine Gates GlobalSpiral™ bsp swivel female 90° swept multispiral hydraulic hose fitting, engineered for 4 & 6 spiral-wire hose (SAE 100R12 / R13 / R15, EN856 4SP / 4SH) — suits Gates EFG4K, EFG5K, EFG6K, M4K & M6K spiral hose. Available as Two-Piece (stem + matched Gates ferrule) and One-Piece couplings — every option clearly labelled.
Built for excavators, dozers, drill rigs and high-pressure mining & construction hydraulics. Crimp to genuine Gates specifications for a certified, leak-free connection — crimp charts available via the download link below.
Specifications

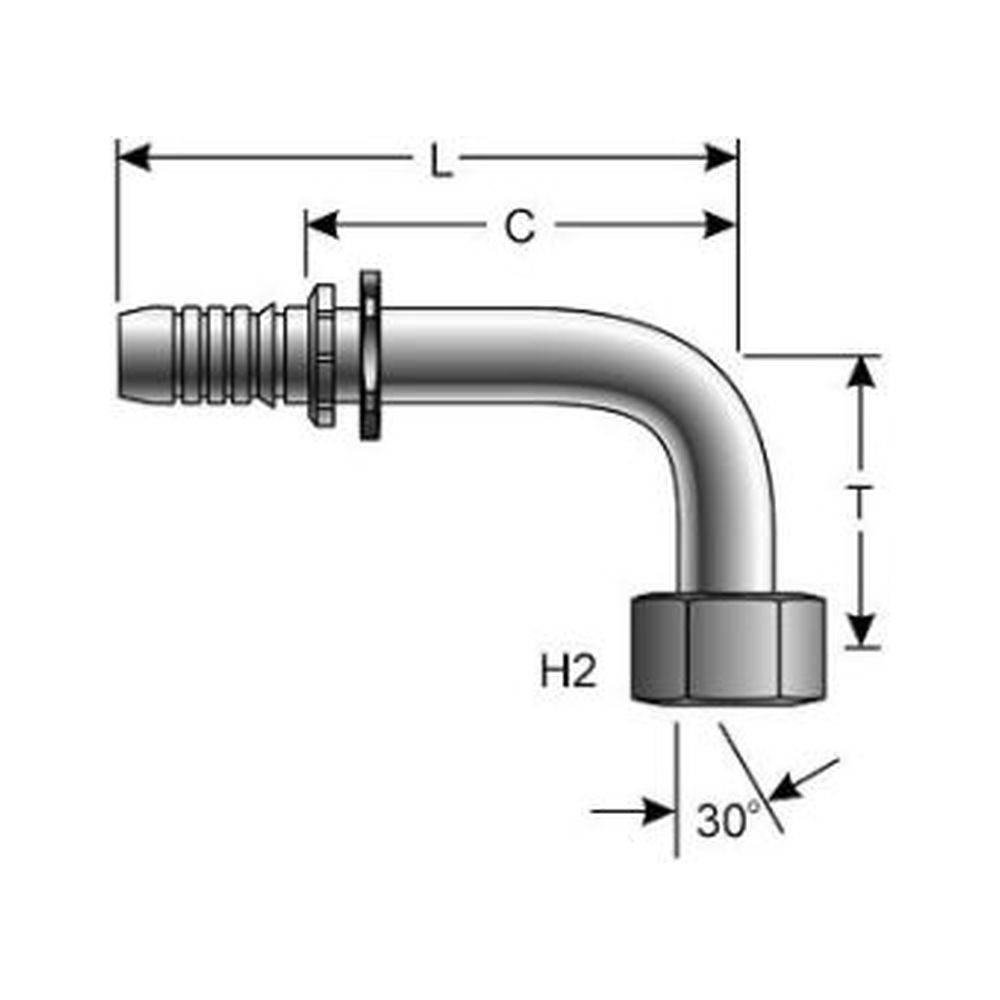

| Size | Type | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (08) 1/2" x (08) 1/2" | 2-Pc | HTM-BSF-90S-0808-GA | 8GS-8FBSPORX90M | G20832-0808 | 72053642254 | 87.9 | 50.6 | 0.50 |
| (12) 3/4" x (12) 3/4" | 2-Pc | HTM-BSF-90S-1212-GA | 12GS-12FBSPORX90 | G20832-1212 | 072053438116 | 124.2 | 73.2 | 1.22 |
| (16) 1" x (16) 1" | 2-Pc | HTM-BSF-90S-1616-GA | 16GS-16FBSPORX90 | G20832-1616 | 72053438123 | 147.6 | 91.2 | 1.99 |
| (10) 5/8" x (10) 5/8" | 2-Pc | HTM-BSF-90S-1010-GA | 10GS-10FBSPORX90 | G20832-1010 | 770075411239 | 119.4 | 62.2 | 0.83 |
| (20) 1-1/4" x (20) 1-1/4" | 2-Pc | HTM-BSF-90S-2020-GA | 20GS-20FBSPORX90M | G20832-2020 | 72053510522 | 180.6 | 109.5 | 3.82 |
| (24) 1-1/2" x (24) 1-1/2" | 1-Pc | HTMO-BSF-90S-2424-GA | 24GSM-24FBSPORX90 | G24832-2424 | 770075417439 | 222.5 | 127.5 | 5.33 |
| (32) 2" x (32) 2" | 1-Pc | HTMO-BSF-90S-3232-GA | 32GSM-32FBSPORX90 | G23832-3232 | 770075556763 | 276.5 | 162.5 | 11.08 |
Download Gates crimp dimensions
